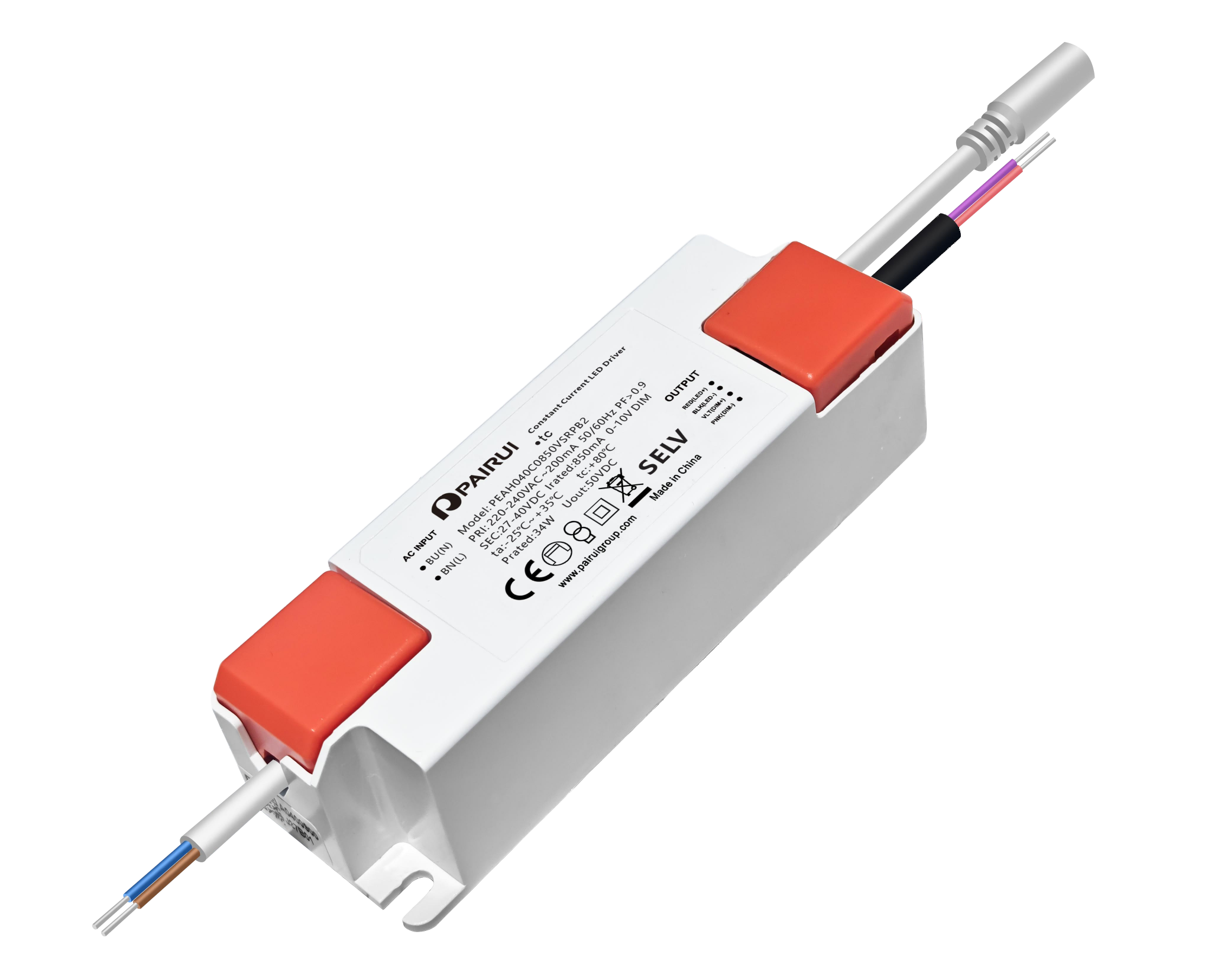

PEAH-B2
Click to expand the criteria search box
PEAH-B2 Filter Models: 1 in total, please see the table below.
| Series | Rated power（W） | Input voltage（V） | Output current（mA） | Output voltage（V） | Efficiency | Certificate | Spec. | PF | Sample Application |
| PEAH-B2 Series | 15-40 | 176-264 | 250/400/600/830 | 27-44 | - | CE | 0.9 | - | |
| PEAH015C0250VSRPB2 | 15 | 176-264 | 250 | 27-44 | 84% | CE | 0.9 | ||
| PEAH020C0400VSRPB2 | 20 | 176-264 | 400 | 27-42 | 87% | CE | 0.9 | ||
| PEAH030C0600VSRPB2 | 30 | 176-264 | 600 | 27-42 | 88% | CE | 0.9 | ||
| PEAH040C0850VSRPB2 | 40 | 176-264 | 830 | 27-40 | 88% | CE | 0.9 |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
