ASP Filter Models: 3 in total, please see the table below.
| Series | Rated power（W） | Input voltage（V） | Output current（mA） | Output voltage（V） | Isolation voltage（V） | Capacitive Load（uF） | Certificate | Spec. | Sample Application |

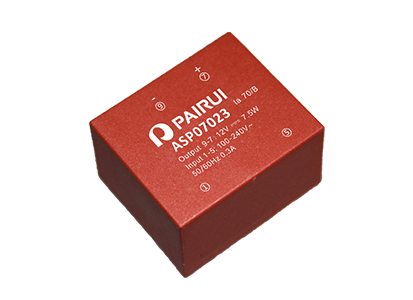

| ASP07 | 7.5 | 85-265Vac | 310-2270 | 3.3-24 | 2000Vac | - | UL UKCA FCC CB CE | - | |
| ASP07200 | 7.5 | 85-265Vac | 2270 | 3.3 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP07201 | 7.5 | 85-265Vac | 1500 | 5 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP07202 | 7.5 | 85-265Vac | 830 | 9 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP07203 | 7.5 | 85-265Vac | 625 | 12 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP07204 | 7.5 | 85-265Vac | 500 | 15 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP07205 | 7.5 | 85-265Vac | 420 | 18 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP07206 | 7.5 | 85-265Vac | 310 | 24 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP10 | 10 | 85-265Vac | 420-3000 | 3.3-24 | 2000Vac | - | UL UKCA FCC CB CE | - | |
| ASP10210 | 10 | 85-265Vac | 3000 | 3.3 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP10211 | 10 | 85-265Vac | 2000 | 5 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP10212 | 10 | 85-265Vac | 1100 | 9 | 2000Vac | - | UL UKCA FCC CB CE | ||

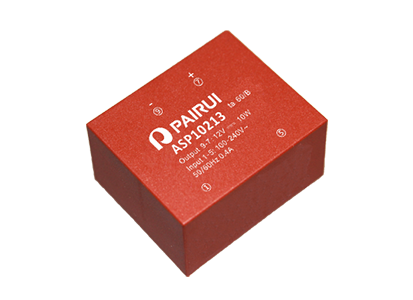

| ASP10213 | 10 | 85-265Vac | 830 | 12 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP10214 | 10 | 85-265Vac | 670 | 15 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP10215 | 10 | 85-265Vac | 560 | 18 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP10216 | 10 | 85-265Vac | 420 | 24 | 2000Vac | - | UL UKCA FCC CB CE | ||
| ASP20 | 15-20 | 85-265Vac | 840-4500 | 3.3-24 | 2000Vac | - | UKCA CE | - | |
| ASP20210 | 15 | 85-265Vac | 4500 | 3.3 | 2000Vac | - | UKCA CE | ||
| ASP20211 | 20 | 85-265Vac | 4000 | 5 | 2000Vac | - | UKCA CE | ||

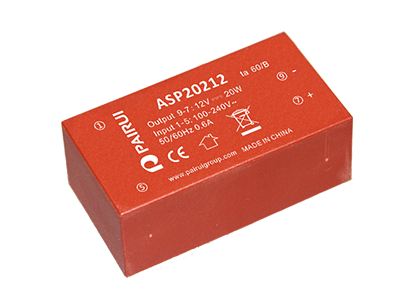

| ASP20212 | 20 | 85-265Vac | 2200 | 9 | 2000Vac | - | UKCA CE | ||
| ASP20213 | 20 | 85-265Vac | 1700 | 12 | 2000Vac | - | UKCA CE | ||
| ASP20214 | 20 | 85-265Vac | 1400 | 15 | 2000Vac | - | UKCA CE | ||
| ASP20215 | 20 | 85-265Vac | 1100 | 18 | 2000Vac | - | UKCA CE | ||
| ASP20216 | 20 | 85-265Vac | 840 | 24 | 2000Vac | - | UKCA CE |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
