FICH Filter Models: 2 in total, please see the table below.
| Series | Rated power（W） | Input voltage（V） | Output current（mA） | Output voltage（V） | PF | Efficiency | Certificate | Spec. | Sample Application |
| FICH Series(28W) | 22-28 | 220-240 | 550-700 | 25-40 | 0.95 | 87% | UKCA CCC TUV CE | - | |
| FICH028C0550NSLPR4 | 22 | 220-240 | 550 | 25-40 | 0.95 | 87% | UKCA CCC TUV CE | ||
| FICH028C0600NSLPR4 | 24 | 220-240 | 600 | 25-40 | 0.95 | 87% | UKCA CCC TUV CE | ||
| FICH028C0650NSLPR4 | 26 | 220-240 | 650 | 25-40 | 0.95 | 87% | UKCA CCC TUV CE | ||

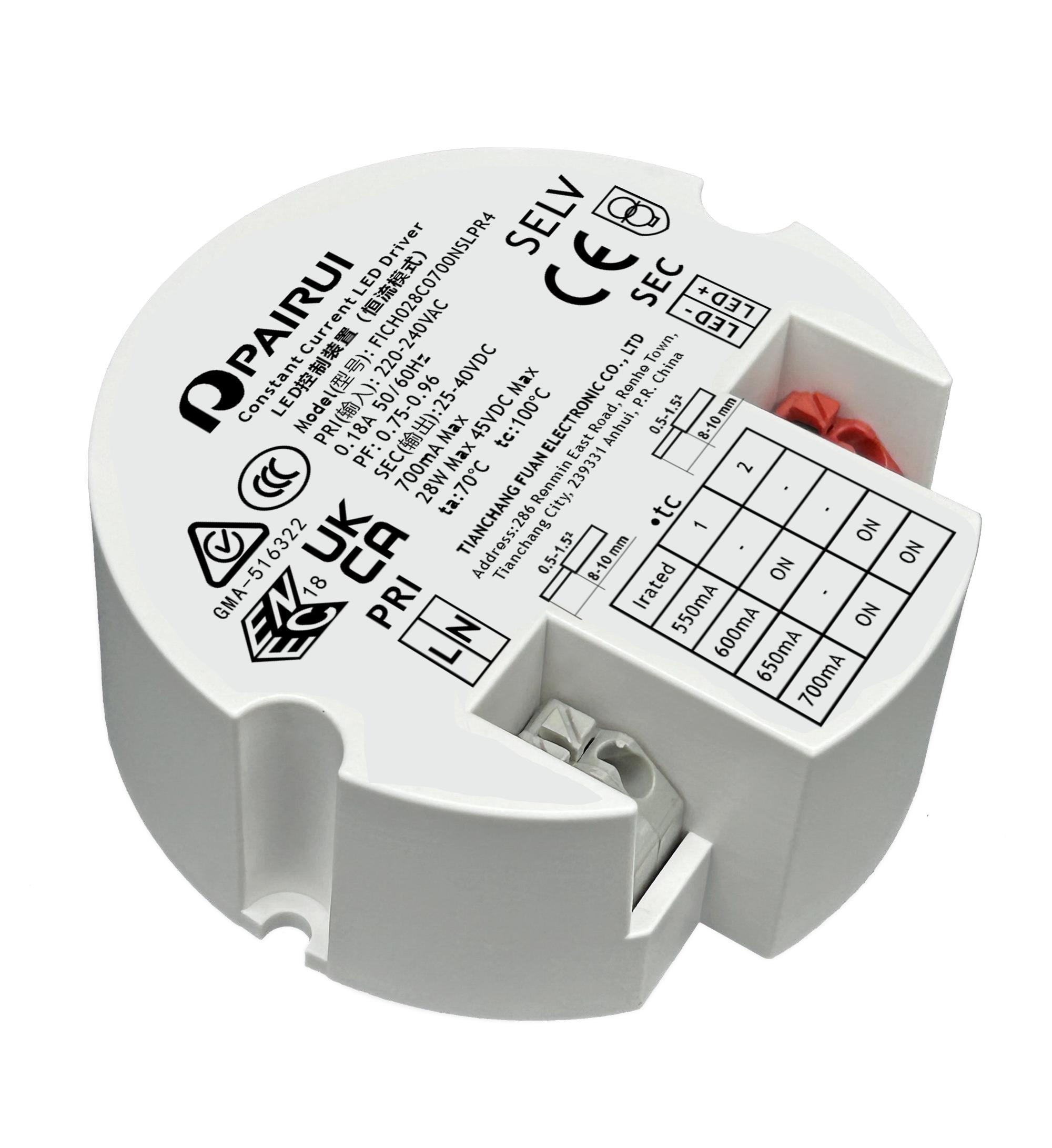

| FICH028C0700NSLPR4 | 28 | 220-240 | 700 | 25-40 | 0.95 | 87% | UKCA CCC TUV CE | ||
| FICH Series(36W) | 30-36 | 220-240 | 750-900 | 25-40 | 0.95 | 88% | UKCA CCC TUV CE | - | |
| FICH036C0750NSLPR4 | 30 | 220-240 | 750 | 25-40 | 0.95 | 88% | UKCA CCC TUV CE | ||
| FICH036C0800NSLPR4 | 32 | 220-240 | 800 | 25-40 | 0.95 | 88% | UKCA CCC TUV CE | ||
| FICH036C0850NSLPR4 | 34 | 220-240 | 850 | 25-40 | 0.95 | 88% | UKCA CCC TUV CE | ||

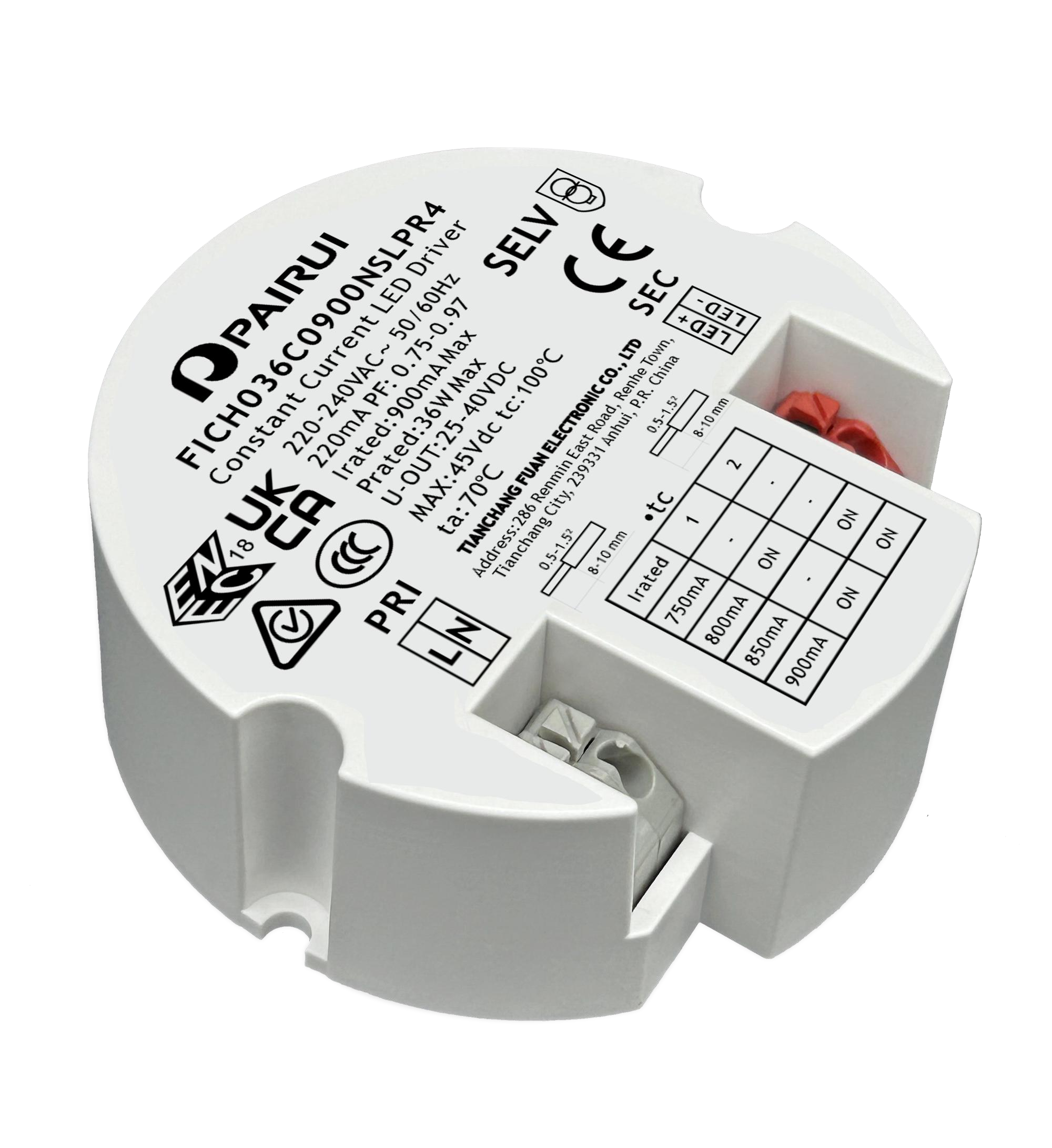

| FICH036C0900NSLPR4 | 36 | 220-240 | 900 | 25-40 | 0.95 | 88% | UKCA CCC TUV CE |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
