DC-DC Module DIP

Loading

Lateral swipe →
Series Rated power(W) Input voltage(V) Output current(mA) Output voltage(V) Dimension (mm) Efficiency Certificate Isolation voltage(V) Spec. Sample Application
DMV-1
1.00 3.3-24V(±10%) - - 12.7x10.0x7.7 - - 1000
-
DMV1-0310
1.00 3.3(3.0~3.6) 300 3.30 12.7x10.0x7.7 76.0% - 1000
DMV1-0311
1.00 3.3(3.0~3.6) 200 5.00 12.7x10.0x7.7 76.0% - 1000
DMV1-0312
1.00 3.3(3.0~3.6) 111 9.00 12.7x10.0x7.7 76.0% - 1000
DMV1-0313
1.00 3.3(3.0~3.6) 83 12.00 12.7x10.0x7.7 76.0% - 1000
DMV1-0314
1.00 3.3(3.0~3.6) 67 15.00 12.7x10.0x7.7 76.0% - 1000
DMV1-0320
1.00 3.3(3.0~3.6) 150 ±3.3 12.7x10.0x7.7 74.0% - 1000
DMV1-0321
1.00 3.3(3.0~3.6) 100 ±5 12.7x10.0x7.7 76.0% - 1000
DMV1-0322
1.00 3.3(3.0~3.6) 56 ±9 12.7x10.0x7.7 78.0% - 1000
DMV1-0323
1.00 3.3(3.0~3.6) 42 ±12 12.7x10.0x7.7 78.0% - 1000
DMV1-0324
1.00 3.3(3.0~3.6) 33 ±15 12.7x10.0x7.7 78.0% - 1000
DMV1-0301
1.00 3.3(3.0~3.6) 100 5, 5 12.7x10.0x7.7 79.0% - 1000
DMV1-0302
1.00 3.3(3.0~3.6) 56 9, 9 12.7x10.0x7.7 79.0% - 1000
DMV1-0303
1.00 3.3(3.0~3.6) 42 12, 12 12.7x10.0x7.7 78.0% - 1000
DMV1-0304
1.00 3.3(3.0~3.6) 33 15, 15 12.7x10.0x7.7 78.0% - 1000
DMV1-0510
1.00 5(4.5~5.5) 300 3.30 12.7x10.0x7.7 76.0% - 1000
DMV1-0511
1.00 5(4.5~5.5) 200 5.00 12.7x10.0x7.7 80.0% - 1000
DMV1-0512
1.00 5(4.5~5.5) 111 9.00 12.7x10.0x7.7 80.0% - 1000
DMV1-0513
1.00 5(4.5~5.5) 83 12.00 12.7x10.0x7.7 77.0% - 1000
DMV1-0514
1.00 5(4.5~5.5) 67 15.00 12.7x10.0x7.7 78.0% - 1000
DMV1-0520
1.00 5(4.5~5.5) 150 ±3.3 12.7x10.0x7.7 74.0% - 1000
DMV1-0521
1.00 5(4.5~5.5) 100 ±5 12.7x10.0x7.7 80.0% - 1000
DMV1-0522
1.00 5(4.5~5.5) 56 ±9 12.7x10.0x7.7 80.0% - 1000
DMV1-0523
1.00 5(4.5~5.5) 42 ±12 12.7x10.0x7.7 79.0% - 1000
DMV1-0524
1.00 5(4.5~5.5) 33 ±15 12.7x10.0x7.7 79.0% - 1000
DMV1-0501
1.00 5(4.5~5.5) 100 5, 5 12.7x10.0x7.7 80.0% - 1000
DMV1-0502
1.00 5(4.5~5.5) 56 9, 9 12.7x10.0x7.7 80.0% - 1000
DMV1-0503
1.00 5(4.5~5.5) 42 12, 12 12.7x10.0x7.7 80.0% - 1000
DMV1-0504
1.00 5(4.5~5.5) 33 15, 15 12.7x10.0x7.7 79.0% - 1000
DMV1-1210
1.00 12(10.8~13.2) 300 3.30 12.7x10.0x7.7 77.0% - 1000
DMV1-1211
1.00 12(10.8~13.2) 200 5.00 12.7x10.0x7.7 78.0% - 1000
DMV1-1212
1.00 12(10.8~13.2) 111 9.00 12.7x10.0x7.7 78.0% - 1000
DMV1-1213
1.00 12(10.8~13.2) 83 12.00 12.7x10.0x7.7 80.0% - 1000
DMV1-1214
1.00 12(10.8~13.2) 67 15.00 12.7x10.0x7.7 80.0% - 1000
DMV1-1220
1.00 12(10.8~13.2) 150 ±3.3 12.7x10.0x7.7 76.0% - 1000
DMV1-1221
1.00 12(10.8~13.2) 100 ±5 12.7x10.0x7.7 80.0% - 1000
DMV1-1222
1.00 12(10.8~13.2) 56 ±9 12.7x10.0x7.7 77.0% - 1000
DMV1-1223
1.00 12(10.8~13.2) 42 ±12 12.7x10.0x7.7 79.0% - 1000
DMV1-1224
1.00 12(10.8~13.2) 33 ±15 12.7x10.0x7.7 79.0% - 1000
DMV1-1201
1.00 12(10.8~13.2) 100 5, 5 12.7x10.0x7.7 80.0% - 1000
DMV1-1202
1.00 12(10.8~13.2) 56 9, 9 12.7x10.0x7.7 77.0% - 1000
DMV1-1203
1.00 12(10.8~13.2) 42 12, 12 12.7x10.0x7.7 79.0% - 1000
DMV1-1204
1.00 12(10.8~13.2) 33 15, 15 12.7x10.0x7.7 79.0% - 1000
DMV1-2410
1.00 24(21.6~26.4) 300 3.30 12.7x10.0x7.7 74.0% - 1000
DMV1-2411
1.00 24(21.6~26.4) 200 5.00 12.7x10.0x7.7 70.0% - 1000
DMV1-2412
1.00 24(21.6~26.4) 111 9.00 12.7x10.0x7.7 76.0% - 1000
DMV1-2413
1.00 24(21.6~26.4) 83 12.00 12.7x10.0x7.7 78.0% - 1000
DMV1-2414
1.00 24(21.6~26.4) 67 15.00 12.7x10.0x7.7 80.0% - 1000
DMV1-2420
1.00 24(21.6~26.4) 150 ±3.3 12.7x10.0x7.7 70.0% - 1000
DMV1-2421
1.00 24(21.6~26.4) 100 ±5 12.7x10.0x7.7 69.0% - 1000
DMV1-2422
1.00 24(21.6~26.4) 56 ±9 12.7x10.0x7.7 74.0% - 1000
DMV1-2423
1.00 24(21.6~26.4) 42 ±12 12.7x10.0x7.7 72.0% - 1000
DMV1-2424
1.00 24(21.6~26.4) 33 ±15 12.7x10.0x7.7 72.0% - 1000
DMV1-2401
1.00 24(21.6~26.4) 100 5, 5 12.7x10.0x7.7 69.0% - 1000
DMV1-2402
1.00 24(21.6~26.4) 56 9, 9 12.7x10.0x7.7 74.0% - 1000
DMV1-2403
1.00 24(21.6~26.4) 42 12, 12 12.7x10.0x7.7 78.0% - 1000
DMV1-2404
1.00 24(21.6~26.4) 33 15, 15 12.7x10.0x7.7 78.0% - 1000
DMV-12W
12.00 24V 48V - - 50.8x25.4x10.16 83.0% - 1500
-
DMV12W-2411
12.00 24(9~36) 2400 5.00 50.8x25.4x10.16 81.0% - 1500
DMV12W-2412
12.00 24(9~36) 1333 9.00 50.8x25.4x10.16 84.0% - 1500
DMV12W-2413
12.00 24(9~36) 1000 12.00 50.8x25.4x10.16 84.0% - 1500
DMV12W-2414
12.00 24(9~36) 800 15.00 50.8x25.4x10.16 85.0% - 1500
DMV12W-2415
12.00 24(9~36) 500 24.00 50.8x25.4x10.16 86.0% - 1500
DMV12W-4811
12.00 48(18~72) 2400 5.00 50.8x25.4x10.16 81.0% - 1500
DMV12W-4812
12.00 48(18~72) 1333 9.00 50.8x25.4x10.16 84.0% - 1500
DMV12W-4813
12.00 48(18~72) 1000 12.00 50.8x25.4x10.16 84.0% - 1500
DMV12W-4814
12.00 48(18~72) 800 15.00 50.8x25.4x10.16 85.0% - 1500
DMV12W-4815
12.00 48(18~72) 500 24.00 50.8x25.4x10.16 86.0% - 1500
DAM-1
1.00 3.3-24V(±10%) - - 20.3x10.0x7.0 - - 1000
-
DAM1-0310
1.00 3.3(3.0~3.6) 300 3.30 20.3x10.0x7.0 72.0% - 1000
DAM1-0311
1.00 3.3(3.0~3.6) 200 5.00 20.3x10.0x7.0 74.0% - 1000
DAM1-0312
1.00 3.3(3.0~3.6) 111 9.00 20.3x10.0x7.0 72.0% - 1000
DAM1-0313
1.00 3.3(3.0~3.6) 83 12.00 20.3x10.0x7.0 72.0% - 1000
DAM1-0314
1.00 3.3(3.0~3.6) 67 15.00 20.3x10.0x7.0 72.0% - 1000
DAM1-0510
1.00 5(4.5~5.5) 300 3.30 20.3x10.0x7.0 70.0% - 1000
DAM1-0511
1.00 5(4.5~5.5) 200 5.00 20.3x10.0x7.0 70.0% - 1000
DAM1-0512
1.00 5(4.5~5.5) 111 9.00 20.3x10.0x7.0 78.0% - 1000
DAM1-0513
1.00 5(4.5~5.5) 83 12.00 20.3x10.0x7.0 78.0% - 1000
DAM1-0514
1.00 5(4.5~5.5) 67 15.00 20.3x10.0x7.0 80.0% - 1000
DAM1-0515
1.00 5(4.5~5.5) 42 24.00 20.3x10.0x7.0 81.0% - 1000
DAM1-0521
1.00 5(4.5~5.5) 100 ±5 20.3x10.0x7.0 72.0% - 1000
DAM1-0522
1.00 5(4.5~5.5) 56 ±9 20.3x10.0x7.0 78.0% - 1000
DAM1-0523
1.00 5(4.5~5.5) 42 ±12 20.3x10.0x7.0 79.0% - 1000
DAM1-0524
1.00 5(4.5~5.5) 33 ±15 20.3x10.0x7.0 79.0% - 1000
DAM1-0501
1.00 5(4.5~5.5) 100 5, 5 20.3x10.0x7.0 70.0% - 1000
DAM1-0502
1.00 5(4.5~5.5) 56 9, 9 20.3x10.0x7.0 76.0% - 1000
DAM1-0503
1.00 5(4.5~5.5) 42 12, 12 20.3x10.0x7.0 77.0% - 1000
DAM1-0504
1.00 5(4.5~5.5) 33 15, 15 20.3x10.0x7.0 78.0% - 1000
DAM1-1210
1.00 12(10.8~13.2) 300 3.30 20.3x10.0x7.0 73.0% - 1000
DAM1-1211
1.00 12(10.8~13.2) 200 5.00 20.3x10.0x7.0 71.0% - 1000
DAM1-1212
1.00 12(10.8~13.2) 111 9.00 20.3x10.0x7.0 76.0% - 1000
DAM1-1213
1.00 12(10.8~13.2) 83 12.00 20.3x10.0x7.0 78.0% - 1000
DAM1-1214
1.00 12(10.8~13.2) 67 15.00 20.3x10.0x7.0 79.0% - 1000
DAM1-1215
1.00 12(10.8~13.2) 42 24.00 20.3x10.0x7.0 78.0% - 1000
DAM1-1221
1.00 12(10.8~13.2) 100 ±5 20.3x10.0x7.0 72.0% - 1000
DAM1-1222
1.00 12(10.8~13.2) 56 ±9 20.3x10.0x7.0 78.0% - 1000
DAM1-1223
1.00 12(10.8~13.2) 42 ±12 20.3x10.0x7.0 79.0% - 1000
DAM1-1224
1.00 12(10.8~13.2) 33 ±15 20.3x10.0x7.0 78.0% - 1000
DAM1-1201
1.00 12(10.8~13.2) 100 5, 5 20.3x10.0x7.0 72.0% - 1000
DAM1-1202
1.00 12(10.8~13.2) 56 9, 9 20.3x10.0x7.0 78.0% - 1000
DAM1-1203
1.00 12(10.8~13.2) 42 12, 12 20.3x10.0x7.0 78.0% - 1000
DAM1-1204
1.00 12(10.8~13.2) 33 15, 15 20.3x10.0x7.0 80.0% - 1000
DAM1-1511
1.00 15(13.5~16.5) 200 5.00 20.3x10.0x7.0 79.0% - 1000
DAM1-1514
1.00 15(13.5~16.5) 67 15.00 20.3x10.0x7.0 79500.0% - 1000
DAM1-2410
1.00 24(21.6~26.4) 300 3.30 20.3x10.0x7.0 72.0% - 1000
DAM1-2411
1.00 24(21.6~26.4) 200 5.00 20.3x10.0x7.0 73.0% - 1000
DAM1-2412
1.00 24(21.6~26.4) 111 9.00 20.3x10.0x7.0 78.0% - 1000
DAM1-2413
1.00 24(21.6~26.4) 83 12.00 20.3x10.0x7.0 78.0% - 1000
DAM1-2414
1.00 24(21.6~26.4) 67 15.00 20.3x10.0x7.0 79.0% - 1000
DAM1-2415
1.00 24(21.6~26.4) 42 24.00 20.3x10.0x7.0 81.0% - 1000
DAM1-2421
1.00 24(21.6~26.4) 100 ±5 20.3x10.0x7.0 72.0% - 1000
DAM1-2422
1.00 24(21.6~26.4) 56 ±9 20.3x10.0x7.0 79.0% - 1000
DAM1-2423
1.00 24(21.6~26.4) 42 ±12 20.3x10.0x7.0 80.0% - 1000
DAM1-2424
1.00 24(21.6~26.4) 33 ±15 20.3x10.0x7.0 80.0% - 1000
DAM1-2401
1.00 24(21.6~26.4) 100 5, 5 20.3x10.0x7.0 71.0% - 1000
DAM1-2402
1.00 24(21.6~26.4) 56 9, 9 20.3x10.0x7.0 74.0% - 1000
DAM1-2403
1.00 24(21.6~26.4) 42 12, 12 20.3x10.0x7.0 76.0% - 1000
DAM1-2404
1.00 24(21.6~26.4) 33 15, 15 20.3x10.0x7.0 76.0% - 1000
DAM-1H
1.00 5-24V(±10%) - - 32.3x16.4x10.3 - - 6000
-
DAM1-0311H
1.00 3.3(3.0~3.6) 200 5.00 32.3x16.4x10.3 74.0% - 6000
DAM1-0312H
1.00 3.3(3.0~3.6) 111 9.00 32.3x16.4x10.3 72.0% - 6000
DAM1-0313H
1.00 3.3(3.0~3.6) 83 12.00 32.3x16.4x10.3 72.0% - 6000
DAM1-0314H
1.00 3.3(3.0~3.6) 67 15.00 32.3x16.4x10.3 72.0% - 6000
DAM1-0510H
1.00 5(4.5~5.5) 300 3.30 32.3x16.4x10.3 70.0% - 6000
DAM1-0511H
1.00 5(4.5~5.5) 200 5.00 32.3x16.4x10.3 70.0% - 6000
DAM1-0512H
1.00 5(4.5~5.5) 111 9.00 32.3x16.4x10.3 78.0% - 6000
DAM1-0513H
1.00 5(4.5~5.5) 83 12.00 32.3x16.4x10.3 78.0% - 6000
DAM1-0514H
1.00 5(4.5~5.5) 67 15.00 32.3x16.4x10.3 80.0% - 6000
DAM1-0515H
1.00 5(4.5~5.5) 42 24.00 32.3x16.4x10.3 81.0% - 6000
DAM1-0521H
1.00 5(4.5~5.5) 100 ±5 32.3x16.4x10.3 72.0% - 6000
DAM1-0522H
1.00 5(4.5~5.5) 56 ±9 32.3x16.4x10.3 78.0% - 6000
DAM1-0523H
1.00 5(4.5~5.5) 42 ±12 32.3x16.4x10.3 79.0% - 6000
DAM1-0524H
1.00 5(4.5~5.5) 33 ±15 32.3x16.4x10.3 79.0% - 6000
DAM1-1210H
1.00 12(10.8~13.2) 300 3.30 32.3x16.4x10.3 73.0% - 6000
DAM1-1211H
1.00 12(10.8~13.2) 200 5.00 32.3x16.4x10.3 71.0% - 6000
DAM1-1212H
1.00 12(10.8~13.2) 111 9.00 32.3x16.4x10.3 76.0% - 6000
DAM1-1213H
1.00 12(10.8~13.2) 83 12.00 32.3x16.4x10.3 78.0% - 6000
DAM1-1214H
1.00 12(10.8~13.2) 67 15.00 32.3x16.4x10.3 79.0% - 6000
DAM1-1215H
1.00 12(10.8~13.2) 42 24.00 32.3x16.4x10.3 78.0% - 6000
DAM1-1221H
1.00 12(10.8~13.2) 100 ±5 32.3x16.4x10.3 72.0% - 6000
DAM1-1222H
1.00 12(10.8~13.2) 56 ±9 32.3x16.4x10.3 78.0% - 6000
DAM1-1223H
1.00 12(10.8~13.2) 42 ±12 32.3x16.4x10.3 79.0% - 6000
DAM1-1224H
1.00 12(10.8~13.2) 33 ±15 32.3x16.4x10.3 78.0% - 6000
DAM1-1511H
1.00 15(13.5~16.5) 200 5.00 32.3x16.4x10.3 79.0% - 6000
DAM1-1514H
1.00 15(13.5~16.5) 67 15.00 32.3x16.4x10.3 79.0% - 6000
DAM1-2410H
1.00 24(21.6~26.4) 300 3.30 32.3x16.4x10.3 72.0% - 6000
DAM1-2411H
1.00 24(21.6~26.4) 200 5.00 32.3x16.4x10.3 73.0% - 6000
DAM1-2412H
1.00 24(21.6~26.4) 111 9.00 32.3x16.4x10.3 78.0% - 6000
DAM1-2413H
1.00 24(21.6~26.4) 83 12.00 32.3x16.4x10.3 78.0% - 6000
DAM1-2414H
1.00 24(21.6~26.4) 67 15.00 32.3x16.4x10.3 79.0% - 6000
DAM1-2415H
1.00 24(21.6~26.4) 42 24.00 32.3x16.4x10.3 81.0% - 6000
DAM1-2421H
1.00 24(21.6~26.4) 100 ±5 32.3x16.4x10.3 72.0% - 6000
DAM1-2422H
1.00 24(21.6~26.4) 56 ±9 32.3x16.4x10.3 79.0% - 6000
DAM1-2423H
1.00 24(21.6~26.4) 42 ±12 32.3x16.4x10.3 80.0% - 6000
DAM1-2424H
1.00 24(21.6~26.4) 33 ±15 32.3x16.4x10.3 80.0% - 6000
DAN-1
1.00 5-24V(±5%) - - 20.3x10.0x7.0 - - 1500
-
DAN1-0511
1.00 5(4.75~5.25) 200 5.00 20.3x10.0x7.0 71.0% - 1500
DAN1-0512
1.00 5(4.75~5.25) 111 9.00 20.3x10.0x7.0 60.0% - 1500
DAN1-0513
1.00 5(4.75~5.25) 83 12.00 20.3x10.0x7.0 64.0% - 1500
DAN1-0514
1.00 5(4.75~5.25) 67 15.00 20.3x10.0x7.0 65.0% - 1500
DAN1-0515
1.00 5(4.75~5.25) 42 24.00 20.3x10.0x7.0 62.0% - 1500
DAN1-1211
1.00 12(11.4~12.6) 200 5.00 20.3x10.0x7.0 72.0% - 1500
DAN1-1212
1.00 12(11.4~12.6) 111 9.00 20.3x10.0x7.0 67.0% - 1500
DAN1-1213
1.00 12(11.4~12.6) 83 12.00 20.3x10.0x7.0 65.0% - 1500
DAN1-1214
1.00 12(11.4~12.6) 67 15.00 20.3x10.0x7.0 64.0% - 1500
DAN1-1215
1.00 12(11.4~12.6) 42 24.00 20.3x10.0x7.0 66.0% - 1500
DAN1-1511
1.00 15(13.5~16.5) 200 5.00 20.3x10.0x7.0 70.0% - 1500
DAN1-1512
1.00 15(13.5~16.5) 111 9.00 20.3x10.0x7.0 65.0% - 1500
DAN1-1513
1.00 15(13.5~16.5) 83 12.00 20.3x10.0x7.0 65.0% - 1500
DAN1-1514
1.00 15(13.5~16.5) 67 15.00 20.3x10.0x7.0 66.0% - 1500
DAN1-1515
1.00 15(13.5~16.5) 42 24.00 20.3x10.0x7.0 66.0% - 1500
DAN1-2411
1.00 24(22.8~25.2) 200 5.00 20.3x10.0x7.0 65.0% - 1500
DAN1-2412
1.00 24(22.8~25.2) 111 9.00 20.3x10.0x7.0 63.0% - 1500
DAN1-2413
1.00 24(22.8~25.2) 83 12.00 20.3x10.0x7.0 63.0% - 1500
DAN1-2414
1.00 24(22.8~25.2) 67 15.00 20.3x10.0x7.0 63.0% - 1500
DAN1-2415
1.00 24(22.8~25.2) 42 24.00 20.3x10.0x7.0 65.0% - 1500
DAN-1F
1.00 5-24V(±5%) - - 20.3x10.0x7.0 - - 3000
-
DAN1-0511F
1.00 5(4.75~5.25) 200 5.00 20.3x10.0x7.0 66.0% - 3000
DAN1-0512F
1.00 5(4.75~5.25) 111 9.00 20.3x10.0x7.0 70.0% - 3000
DAN1-0513F
1.00 5(4.75~5.25) 83 12.00 20.3x10.0x7.0 72.0% - 3000
DAN1-0514F
1.00 5(4.75~5.25) 67 15.00 20.3x10.0x7.0 73.0% - 3000
DAN1-1211F
1.00 12(11.4~12.6) 200 5.00 20.3x10.0x7.0 67.0% - 3000
DAN1-1212F
1.00 12(11.4~12.6) 111 9.00 20.3x10.0x7.0 71.0% - 3000
DAN1-1213F
1.00 12(11.4~12.6) 83 12.00 20.3x10.0x7.0 73.0% - 3000
DAN1-1214F
1.00 12(11.4~12.6) 67 15.00 20.3x10.0x7.0 74.0% - 3000
DAN1-2411F
1.00 24(22.8~25.2) 200 5.00 20.3x10.0x7.0 67.0% - 3000
DAN1-2412F
1.00 24(22.8~25.2) 111 9.00 20.3x10.0x7.0 72.0% - 3000
DAN1-2413F
1.00 24(22.8~25.2) 83 12.00 20.3x10.0x7.0 73.0% - 3000
DAN1-2414F
1.00 24(22.8~25.2) 67 15.00 20.3x10.0x7.0 74.0% - 3000
DAM-2
2.00 5-24V(±10%) - - 20.3x10.0x7.0 - - 1000
-
DAM2-0510
2.00 5(4.5~5.5) 400 3.30 20.3x10.0x7.0 74.0% - 1000
DAM2-0511
2.00 5(4.5~5.5) 400 5.00 20.3x10.0x7.0 81.0% - 1000
DAM2-0512
2.00 5(4.5~5.5) 222 9.00 20.3x10.0x7.0 84.0% - 1000
DAM2-0513
2.00 5(4.5~5.5) 166 12.00 20.3x10.0x7.0 83.0% - 1000
DAM2-0514
2.00 5(4.5~5.5) 133 15.00 20.3x10.0x7.0 84.0% - 1000
DAM2-0515
2.00 5(4.5~5.5) 83 24.00 20.3x10.0x7.0 80.0% - 1000
DAM2-0521
2.00 5(4.5~5.5) 200 ±5 20.3x10.0x7.0 82.0% - 1000
DAM2-0522
2.00 5(4.5~5.5) 111 ±9 20.3x10.0x7.0 85.0% - 1000
DAM2-0523
2.00 5(4.5~5.5) 83 ±12 20.3x10.0x7.0 86.0% - 1000
DAM2-0524
2.00 5(4.5~5.5) 67 ±15 20.3x10.0x7.0 82.0% - 1000
DAM2-1211
2.00 12(10.8~13.2) 400 5.00 20.3x10.0x7.0 81.0% - 1000
DAM2-1212
2.00 12(10.8~13.2) 222 9.00 20.3x10.0x7.0 82.0% - 1000
DAM2-1213
2.00 12(10.8~13.2) 166 12.00 20.3x10.0x7.0 85.0% - 1000
DAM2-1214
2.00 12(10.8~13.2) 133 15.00 20.3x10.0x7.0 82.0% - 1000
DAM2-1215
2.00 12(10.8~13.2) 83 24.00 20.3x10.0x7.0 87.0% - 1000
DAM2-1221
2.00 12(10.8~13.2) 200 ±5 20.3x10.0x7.0 81.0% - 1000
DAM2-1222
2.00 12(10.8~13.2) 111 ±9 20.3x10.0x7.0 84.0% - 1000
DAM2-1223
2.00 12(10.8~13.2) 83 ±12 20.3x10.0x7.0 86.0% - 1000
DAM2-1224
2.00 12(10.8~13.2) 67 ±15 20.3x10.0x7.0 82.0% - 1000
DAM2-2411
2.00 24(21.6~26.4) 400 5.00 20.3x10.0x7.0 80.0% - 1000
DAM2-2412
2.00 24(21.6~26.4) 222 9.00 20.3x10.0x7.0 83.0% - 1000
DAM2-2413
2.00 24(21.6~26.4) 166 12.00 20.3x10.0x7.0 84.0% - 1000
DAM2-2414
2.00 24(21.6~26.4) 133 15.00 20.3x10.0x7.0 84.0% - 1000
DAM2-2415
2.00 24(21.6~26.4) 83 24.00 20.3x10.0x7.0 84.0% - 1000
DAM2-2421
2.00 24(21.6~26.4) 200 ±5 20.3x10.0x7.0 80.0% - 1000
DAM2-2422
2.00 24(21.6~26.4) 111 ±9 20.3x10.0x7.0 84.0% - 1000
DAM2-2423
2.00 24(21.6~26.4) 83 ±12 20.3x10.0x7.0 84.0% - 1000
DAM2-2424
2.00 24(21.6~26.4) 67 ±15 20.3x10.0x7.0 84.0% - 1000
DAM-2F
2.00 5-24V(±10%) - - 20.3x10.0x7.0 - - 3000
-
DAM2-0511F
2.00 5(4.5~5.5) 400 5.00 20.3x10.0x7.0 72.0% - 3000
DAM2-0512F
2.00 5(4.5~5.5) 222 9.00 20.3x10.0x7.0 76.0% - 3000
DAM2-0513F
2.00 5(4.5~5.5) 166 12.00 20.3x10.0x7.0 79.0% - 3000
DAM2-0514F
2.00 5(4.5~5.5) 133 15.00 20.3x10.0x7.0 78.0% - 3000
DAM2-0515F
2.00 5(4.5~5.5) 83 24.00 20.3x10.0x7.0 79.0% - 3000
DAM2-0521F
2.00 5(4.5~5.5) 200 ±5 20.3x10.0x7.0 81.0% - 3000
DAM2-0522F
2.00 5(4.5~5.5) 111 ±9 20.3x10.0x7.0 82.0% - 3000
DAM2-0523F
2.00 5(4.5~5.5) 83 ±12 20.3x10.0x7.0 82.0% - 3000
DAM2-0524F
2.00 5(4.5~5.5) 67 ±15 20.3x10.0x7.0 80.0% - 3000
DAM2-0525F
2.00 5(4.5~5.5) 42 ±24 20.3x10.0x7.0 80.0% - 3000
DAM2-1211F
2.00 12(10.8~13.2) 400 5.00 20.3x10.0x7.0 71.0% - 3000
DAM2-1212F
2.00 12(10.8~13.2) 222 9.00 20.3x10.0x7.0 76.0% - 3000
DAM2-1213F
2.00 12(10.8~13.2) 166 12.00 20.3x10.0x7.0 78.0% - 3000
DAM2-1214F
2.00 12(10.8~13.2) 133 15.00 20.3x10.0x7.0 79.0% - 3000
DAM2-1215F
2.00 12(10.8~13.2) 83 24.00 20.3x10.0x7.0 78.0% - 3000
DAM2-1221F
2.00 12(10.8~13.2) 200 ±5 20.3x10.0x7.0 80.0% - 3000
DAM2-1222F
2.00 12(10.8~13.2) 111 ±9 20.3x10.0x7.0 80.0% - 3000
DAM2-1223F
2.00 12(10.8~13.2) 83 ±12 20.3x10.0x7.0 80.0% - 3000
DAM2-1224F
2.00 12(10.8~13.2) 67 ±15 20.3x10.0x7.0 81.0% - 3000
DAM2-1225F
2.00 12(10.8~13.2) 42 ±24 20.3x10.0x7.0 82.0% - 3000
DAM2-1511F
2.00 15(13.5~16.5) 400 5.00 20.3x10.0x7.0 78.0% - 3000
DAM2-1512F
2.00 15(13.5~16.5) 222 9.00 20.3x10.0x7.0 78.0% - 3000
DAM2-1513F
2.00 15(13.5~16.5) 166 12.00 20.3x10.0x7.0 78.0% - 3000
DAM2-1514F
2.00 15(13.5~16.5) 133 15.00 20.3x10.0x7.0 78.0% - 3000
DAM2-1515F
2.00 15(13.5~16.5) 83 24.00 20.3x10.0x7.0 80.0% - 3000
DAM2-1521F
2.00 15(13.5~16.5) 200 ±5 20.3x10.0x7.0 81.0% - 3000
DAM2-1522F
2.00 15(13.5~16.5) 111 ±9 20.3x10.0x7.0 81.0% - 3000
DAM2-1523F
2.00 15(13.5~16.5) 83 ±12 20.3x10.0x7.0 82.0% - 3000
DAM2-1524F
2.00 15(13.5~16.5) 67 ±15 20.3x10.0x7.0 83.0% - 3000
DAM2-1525F
2.00 15(13.5~16.5) 42 ±24 20.3x10.0x7.0 83.0% - 3000
DAM2-2411F
2.00 24(21.6~26.4) 400 5.00 20.3x10.0x7.0 73.0% - 3000
DAM2-2412F
2.00 24(21.6~26.4) 222 9.00 20.3x10.0x7.0 78.0% - 3000
DAM2-2413F
2.00 24(21.6~26.4) 166 12.00 20.3x10.0x7.0 78.0% - 3000
DAM2-2414F
2.00 24(21.6~26.4) 133 15.00 20.3x10.0x7.0 79.0% - 3000
DAM2-2415F
2.00 24(21.6~26.4) 83 24.00 20.3x10.0x7.0 81.0% - 3000
DAM2-2421F
2.00 24(21.6~26.4) 200 ±5 20.3x10.0x7.0 81.0% - 3000
DAM2-2422F
2.00 24(21.6~26.4) 111 ±9 20.3x10.0x7.0 82.0% - 3000
DAM2-2423F
2.00 24(21.6~26.4) 83 ±12 20.3x10.0x7.0 80.0% - 3000
DAM2-2424F
2.00 24(21.6~26.4) 67 ±15 20.3x10.0x7.0 83.0% - 3000
DAM2-2425F
2.00 24(21.6~26.4) 42 ±24 20.3x10.0x7.0 83.0% - 3000
DAM-2H
2.00 5-24V(±10%) - - 32.3x16.4x10.3 - - 6000
-
DAM2-0511H
2.00 5(4.5~5.5) 400 5.00 32.3x16.4x10.3 74.0% - 6000
DAM2-0512H
2.00 5(4.5~5.5) 222 9.00 32.3x16.4x10.3 76.0% - 6000
DAM2-0513H
2.00 5(4.5~5.5) 167 12.00 32.3x16.4x10.3 76.0% - 6000
DAM2-0514H
2.00 5(4.5~5.5) 133 15.00 32.3x16.4x10.3 77.0% - 6000
DAM2-0521H
2.00 5(4.5~5.5) 200 ±5 32.3x16.4x10.3 75.0% - 6000
DAM2-0522H
2.00 5(4.5~5.5) 111 ±9 32.3x16.4x10.3 76.0% - 6000
DAM2-0523H
2.00 5(4.5~5.5) 83 ±12 32.3x16.4x10.3 76.0% - 6000
DAM2-0524H
2.00 5(4.5~5.5) 67 ±15 32.3x16.4x10.3 76.0% - 6000
DAM2-1211H
2.00 12(10.8~13.2) 400 5.00 32.3x16.4x10.3 75.0% - 6000
DAM2-1212H
2.00 12(10.8~13.2) 222 9.00 32.3x16.4x10.3 77.0% - 6000
DAM2-1213H
2.00 12(10.8~13.2) 167 12.00 32.3x16.4x10.3 75.0% - 6000
DAM2-1214H
2.00 12(10.8~13.2) 133 15.00 32.3x16.4x10.3 82.0% - 6000
DAM2-1221H
2.00 12(10.8~13.2) 200 ±5 32.3x16.4x10.3 73.0% - 6000
DAM2-1222H
2.00 12(10.8~13.2) 111 ±9 32.3x16.4x10.3 72.0% - 6000
DAM2-1223H
2.00 12(10.8~13.2) 83 ±12 32.3x16.4x10.3 79.0% - 6000
DAM2-1224H
2.00 12(10.8~13.2) 67 ±15 32.3x16.4x10.3 80.0% - 6000
DAM2-2411H
2.00 24(21.6~26.4) 400 5.00 32.3x16.4x10.3 75.0% - 6000
DAM2-2412H
2.00 24(21.6~26.4) 222 9.00 32.3x16.4x10.3 77.0% - 6000
DAM2-2413H
2.00 24(21.6~26.4) 167 12.00 32.3x16.4x10.3 78.0% - 6000
DAM2-2414H
2.00 24(21.6~26.4) 133 15.00 32.3x16.4x10.3 81.0% - 6000
DAM2-2421H
2.00 24(21.6~26.4) 200 ±5 32.3x16.4x10.3 75.0% - 6000
DAM2-2422H
2.00 24(21.6~26.4) 111 ±9 32.3x16.4x10.3 78.0% - 6000
DAM2-2423H
2.00 24(21.6~26.4) 83 ±12 32.3x16.4x10.3 79.0% - 6000
DAM2-2424H
2.00 24(21.6~26.4) 67 ±15 32.3x16.4x10.3 79.0% - 6000
DAN-2
2.00 5-24V(±5%) - - 20.3x10.0x7.0 - - 1500
-
DAN2-0511
2.00 5(4.75~5.25) 400 5.00 20.3x10.0x7.0 69.0% - 1500
DAN2-0512
2.00 5(4.75~5.25) 222 9.00 20.3x10.0x7.0 69.0% - 1500
DAN2-0513
2.00 5(4.75~5.25) 167 12.00 20.3x10.0x7.0 75.0% - 1500
DAN2-0514
2.00 5(4.75~5.25) 133 15.00 20.3x10.0x7.0 65.0% - 1500
DAN2-0515
2.00 5(4.75~5.25) 83 24.00 20.3x10.0x7.0 65.0% - 1500
DAN2-1211
2.00 12(11.4~12.6) 400 5.00 20.3x10.0x7.0 69.0% - 1500
DAN2-1212
2.00 12(11.4~12.6) 222 9.00 20.3x10.0x7.0 66.0% - 1500
DAN2-1213
2.00 12(11.4~12.6) 167 12.00 20.3x10.0x7.0 75.0% - 1500
DAN2-1214
2.00 12(11.4~12.6) 133 15.00 20.3x10.0x7.0 72.0% - 1500
DAN2-1215
2.00 12(11.4~12.6) 83 24.00 20.3x10.0x7.0 72.0% - 1500
DAN2-1511
2.00 15(13.5~16.5) 400 5.00 20.3x10.0x7.0 67.0% - 1500
DAN2-1512
2.00 15(13.5~16.5) 222 9.00 20.3x10.0x7.0 70.0% - 1500
DAN2-1513
2.00 15(13.5~16.5) 167 12.00 20.3x10.0x7.0 70.0% - 1500
DAN2-1514
2.00 15(13.5~16.5) 133 15.00 20.3x10.0x7.0 68.0% - 1500
DAN2-1515
2.00 15(13.5~16.5) 83 24.00 20.3x10.0x7.0 72.0% - 1500
DAN2-2411
2.00 24(22.8~25.2) 400 5.00 20.3x10.0x7.0 72.0% - 1500
DAN2-2412
2.00 24(22.8~25.2) 222 9.00 20.3x10.0x7.0 75.0% - 1500
DAN2-2413
2.00 24(22.8~25.2) 167 12.00 20.3x10.0x7.0 72.0% - 1500
DAN2-2414
2.00 24(22.8~25.2) 133 15.00 20.3x10.0x7.0 70.0% - 1500
DAN2-2415
2.00 24(22.8~25.2) 83 24.00 20.3x10.0x7.0 71.0% - 1500
DAN-2F
2.00 5-24V(±5%) - - 20.3x10.0x7.0 - - 3000
-
DAN2-0511F
2.00 5(4.75~5.25) 400 5.00 20.3x10.0x7.0 69.0% - 3000
DAN2-0512F
2.00 5(4.75~5.25) 222 9.00 20.3x10.0x7.0 69.0% - 3000
DAN2-0513F
2.00 5(4.75~5.25) 167 12.00 20.3x10.0x7.0 75.0% - 3000
DAN2-0514F
2.00 5(4.75~5.25) 133 15.00 20.3x10.0x7.0 65.0% - 3000
DAN2-0515F
2.00 5(4.75~5.25) 83 24.00 20.3x10.0x7.0 65.0% - 3000
DAN2-1211F
2.00 12(11.4~12.6) 400 5.00 20.3x10.0x7.0 69.0% - 3000
DAN2-1212F
2.00 12(11.4~12.6) 222 9.00 20.3x10.0x7.0 66.0% - 3000
DAN2-1213F
2.00 12(11.4~12.6) 167 12.00 20.3x10.0x7.0 75.0% - 3000
DAN2-1214F
2.00 12(11.4~12.6) 133 15.00 20.3x10.0x7.0 72.0% - 3000
DAN2-1215F
2.00 12(11.4~12.6) 83 24.00 20.3x10.0x7.0 72.0% - 3000
DAN2-1511F
2.00 15(13.5~16.5) 400 5.00 20.3x10.0x7.0 67.0% - 3000
DAN2-1512F
2.00 15(13.5~16.5) 222 9.00 20.3x10.0x7.0 70.0% - 3000
DAN2-1513F
2.00 15(13.5~16.5) 167 12.00 20.3x10.0x7.0 70.0% - 3000
DAN2-1514F
2.00 15(13.5~16.5) 133 15.00 20.3x10.0x7.0 68.0% - 3000
DAN2-1515F
2.00 15(13.5~16.5) 83 24.00 20.3x10.0x7.0 72.0% - 3000
DAN2-2411F
2.00 24(22.8~25.2) 400 5.00 20.3x10.0x7.0 72.0% - 3000
DAN2-2412F
2.00 24(22.8~25.2) 222 9.00 20.3x10.0x7.0 75.0% - 3000
DAN2-2413F
2.00 24(22.8~25.2) 167 12.00 20.3x10.0x7.0 72.0% - 3000
DAN2-2414F
2.00 24(22.8~25.2) 133 15.00 20.3x10.0x7.0 70.0% - 3000
DAN2-2415F
2.00 24(22.8~25.2) 83 24.00 20.3x10.0x7.0 71.0% - 3000
DMV-3
3.00 5-48V(2:1) - - 25.4x25.4x10.16 - - 1500
-
DMV3-0511
3.00 5(4.5~9) 600 3.30 25.4x25.4x10.16 72.0% - 1500
DMV3-0512
3.00 5(4.5~9) 600 5.00 25.4x25.4x10.16 74.0% - 1500
DMV3-0513
3.00 5(4.5~9) 330 9.00 25.4x25.4x10.16 76.0% - 1500
DMV3-0514
3.00 5(4.5~9) 250 12.00 25.4x25.4x10.16 80.0% - 1500
DMV3-0515
3.00 5(4.5~9) 200 15.00 25.4x25.4x10.16 81.0% - 1500
DMV3-0516
3.00 5(4.5~9) 125 24.00 25.4x25.4x10.16 80.0% - 1500
DMV3-0521
3.00 5(4.5~9) 300 ±3.3 25.4x25.4x10.16 72.0% - 1500
DMV3-0522
3.00 5(4.5~9) 300 ±5 25.4x25.4x10.16 75.0% - 1500
DMV3-0523
3.00 5(4.5~9) 165 ±9 25.4x25.4x10.16 77.0% - 1500
DMV3-0524
3.00 5(4.5~9) 125 ±12 25.4x25.4x10.16 81.0% - 1500
DMV3-0525
3.00 5(4.5~9) 100 ±15 25.4x25.4x10.16 83.0% - 1500
DMV3-0526
3.00 5(4.5~9) 60 ±24 25.4x25.4x10.16 80.0% - 1500
DMV3-1211
3.00 12(9~18) 600 3.30 25.4x25.4x10.16 72.0% - 1500
DMV3-1212
3.00 12(9~18) 600 5.00 25.4x25.4x10.16 80.0% - 1500
DMV3-1213
3.00 12(9~18) 330 9.00 25.4x25.4x10.16 81.0% - 1500
DMV3-1214
3.00 12(9~18) 250 12.00 25.4x25.4x10.16 82.0% - 1500
DMV3-1215
3.00 12(9~18) 200 15.00 25.4x25.4x10.16 82.0% - 1500
DMV3-1216
3.00 12(9~18) 125 24.00 25.4x25.4x10.16 83.0% - 1500
DMV3-1221
3.00 12(9~18) 300 ±3.3 25.4x25.4x10.16 82.0% - 1500
DMV3-1222
3.00 12(9~18) 300 ±5 25.4x25.4x10.16 80.0% - 1500
DMV3-1223
3.00 12(9~18) 165 ±9 25.4x25.4x10.16 81.0% - 1500
DMV3-1224
3.00 12(9~18) 125 ±12 25.4x25.4x10.16 82.0% - 1500
DMV3-1225
3.00 12(9~18) 100 ±15 25.4x25.4x10.16 82.0% - 1500
DMV3-1226
3.00 12(9~18) 60 ±24 25.4x25.4x10.16 83.0% - 1500
DMV3-2411
3.00 24(18~36) 600 3.30 25.4x25.4x10.16 70.0% - 1500
DMV3-2412
3.00 24(18~36) 600 5.00 25.4x25.4x10.16 77.0% - 1500
DMV3-2413
3.00 24(18~36) 330 9.00 25.4x25.4x10.16 81.0% - 1500
DMV3-2414
3.00 24(18~36) 250 12.00 25.4x25.4x10.16 84.0% - 1500
DMV3-2415
3.00 24(18~36) 200 15.00 25.4x25.4x10.16 84.0% - 1500
DMV3-2416
3.00 24(18~36) 125 24.00 25.4x25.4x10.16 84.0% - 1500
DMV3-2421
3.00 24(18~36) 300 ±3.3 25.4x25.4x10.16 72.0% - 1500
DMV3-2422
3.00 24(18~36) 300 ±5 25.4x25.4x10.16 76.0% - 1500
DMV3-2423
3.00 24(18~36) 165 ±9 25.4x25.4x10.16 81.0% - 1500
DMV3-2424
3.00 24(18~36) 125 ±12 25.4x25.4x10.16 82.0% - 1500
DMV3-2425
3.00 24(18~36) 100 ±15 25.4x25.4x10.16 82.0% - 1500
DMV3-2426
3.00 24(18~36) 60 ±24 25.4x25.4x10.16 83.0% - 1500
DMV3-4811
3.00 48(36~72) 600 3.30 25.4x25.4x10.16 70.0% - 1500
DMV3-4812
3.00 48(36~72) 600 5.00 25.4x25.4x10.16 80.0% - 1500
DMV3-4813
3.00 48(36~72) 330 9.00 25.4x25.4x10.16 81.0% - 1500
DMV3-4814
3.00 48(36~72) 250 12.00 25.4x25.4x10.16 82.0% - 1500
DMV3-4815
3.00 48(36~72) 200 15.00 25.4x25.4x10.16 84.0% - 1500
DMV3-4816
3.00 48(36~72) 125 24.00 25.4x25.4x10.16 84.0% - 1500
DMV3-4821
3.00 48(36~72) 300 ±3.3 25.4x25.4x10.16 72.0% - 1500
DMV3-4822
3.00 48(36~72) 300 ±5 25.4x25.4x10.16 80.0% - 1500
DMV3-4823
3.00 48(36~72) 165 ±9 25.4x25.4x10.16 81.0% - 1500
DMV3-4824
3.00 48(36~72) 125 ±12 25.4x25.4x10.16 82.0% - 1500
DMV3-4825
3.00 48(36~72) 100 ±15 25.4x25.4x10.16 83.0% - 1500
DMV3-4826
3.00 48(36~72) 60 ±24 25.4x25.4x10.16 83.0% - 1500
DMV-3W
3.00 24V 48V(4:1) - - 25.4x25.4x10.16 - - 1500
-
DMV3W-2411
3.00 24(9~36) 600 3.30 25.4x25.4x10.16 75.0% - 1500
DMV3W-2412
3.00 24(9~36) 600 5.00 25.4x25.4x10.16 77.0% - 1500
DMV3W-2413
3.00 24(9~36) 330 9.00 25.4x25.4x10.16 81.0% - 1500
DMV3W-2414
3.00 24(9~36) 250 12.00 25.4x25.4x10.16 84.0% - 1500
DMV3W-2415
3.00 24(9~36) 200 15.00 25.4x25.4x10.16 84.0% - 1500
DMV3W-2416
3.00 24(9~36) 125 24.00 25.4x25.4x10.16 84.0% - 1500
DMV3W-2421
3.00 24(9~36) 300 ±3.3 25.4x25.4x10.16 74.0% - 1500
DMV3W-2422
3.00 24(9~36) 300 ±5 25.4x25.4x10.16 76.0% - 1500
DMV3W-2423
3.00 24(9~36) 165 ±9 25.4x25.4x10.16 81.0% - 1500
DMV3W-2424
3.00 24(9~36) 125 ±12 25.4x25.4x10.16 82.0% - 1500
DMV3W-2425
3.00 24(9~36) 100 ±15 25.4x25.4x10.16 82.0% - 1500
DMV3W-2426
3.00 24(9~36) 60 ±24 25.4x25.4x10.16 83.0% - 1500
DMV3W-4811
3.00 48(18~72) 600 3.30 25.4x25.4x10.16 76.0% - 1500
DMV3W-4812
3.00 48(18~72) 600 5.00 25.4x25.4x10.16 80.0% - 1500
DMV3W-4813
3.00 48(18~72) 330 9.00 25.4x25.4x10.16 81.0% - 1500
DMV3W-4814
3.00 48(18~72) 250 12.00 25.4x25.4x10.16 82.0% - 1500
DMV3W-4815
3.00 48(18~72) 200 15.00 25.4x25.4x10.16 84.0% - 1500
DMV3W-4816
3.00 48(18~72) 125 24.00 25.4x25.4x10.16 84.0% - 1500
DMV3W-4821
3.00 48(18~72) 300 ±3.3 25.4x25.4x10.16 78.0% - 1500
DMV3W-4822
3.00 48(18~72) 300 ±5 25.4x25.4x10.16 80.0% - 1500
DMV3W-4823
3.00 48(18~72) 165 ±9 25.4x25.4x10.16 81.0% - 1500
DMV3W-4824
3.00 48(18~72) 125 ±12 25.4x25.4x10.16 82.0% - 1500
DMV3W-4825
3.00 48(18~72) 100 ±15 25.4x25.4x10.16 83.0% - 1500
DMV3W-4826
3.00 48(18~72) 60 ±24 25.4x25.4x10.16 83.0% - 1500
DNV-3
3.00 5-48V(2:1) - - 31.8x20.3x10.0 - - 1500
-
DNV3-0510
3.00 5(4.5~9) 750 3.30 31.8x20.3x10.0 72.0% - 1500
DNV3-0511
3.00 5(4.5~9) 600 5.00 31.8x20.3x10.0 78.0% - 1500
DNV3-0515
3.00 5(4.5~9) 333 9.00 31.8x20.3x10.0 79.0% - 1500
DNV3-0512
3.00 5(4.5~9) 250 12.00 31.8x20.3x10.0 79.0% - 1500
DNV3-0514
3.00 5(4.5~9) 200 15.00 31.8x20.3x10.0 78.0% - 1500
DNV3-0513
3.00 5(4.5~9) 125 24.00 31.8x20.3x10.0 83.0% - 1500
DNV3-0521
3.00 5(4.5~9) 300 ±5 31.8x20.3x10.0 78.0% - 1500
DNV3-0525
3.00 5(4.5~9) 167 ±9 31.8x20.3x10.0 79.0% - 1500
DNV3-0522
3.00 5(4.5~9) 125 ±12 31.8x20.3x10.0 74.0% - 1500
DNV3-0523
3.00 5(4.5~9) 100 ±15 31.8x20.3x10.0 73.0% - 1500
DNV3-0524
3.00 5(4.5~9) 60 ±24 31.8x20.3x10.0 76.0% - 1500
DNV3-1210
3.00 12(9~18) 750 3.30 31.8x20.3x10.0 72.0% - 1500
DNV3-1211
3.00 12(9~18) 600 5.00 31.8x20.3x10.0 78.0% - 1500
DNV3-1215
3.00 12(9~18) 333 9.00 31.8x20.3x10.0 81.0% - 1500
DNV3-1212
3.00 12(9~18) 250 12.00 31.8x20.3x10.0 80.0% - 1500
DNV3-1214
3.00 12(9~18) 200 15.00 31.8x20.3x10.0 80.0% - 1500
DNV3-1213
3.00 12(9~18) 125 24.00 31.8x20.3x10.0 81.0% - 1500
DNV3-1221
3.00 12(9~18) 300 ±5 31.8x20.3x10.0 78.0% - 1500
DNV3-1225
3.00 12(9~18) 167 ±9 31.8x20.3x10.0 82.0% - 1500
DNV3-1222
3.00 12(9~18) 125 ±12 31.8x20.3x10.0 82.0% - 1500
DNV3-1223
3.00 12(9~18) 100 ±15 31.8x20.3x10.0 84.0% - 1500
DNV3-1224
3.00 12(9~18) 60 ±24 31.8x20.3x10.0 84.0% - 1500
DNV3-2410
3.00 24(18~36) 750 3.30 31.8x20.3x10.0 72.0% - 1500
DNV3-2411
3.00 24(18~36) 600 5.00 31.8x20.3x10.0 78.0% - 1500
DNV3-2415
3.00 24(18~36) 333 9.00 31.8x20.3x10.0 81.0% - 1500
DNV3-2412
3.00 24(18~36) 250 12.00 31.8x20.3x10.0 80.0% - 1500
DNV3-2414
3.00 24(18~36) 200 15.00 31.8x20.3x10.0 80.0% - 1500
DNV3-2413
3.00 24(18~36) 125 24.00 31.8x20.3x10.0 81.0% - 1500
DNV3-2421
3.00 24(18~36) 300 ±5 31.8x20.3x10.0 78.0% - 1500
DNV3-2425
3.00 24(18~36) 167 ±9 31.8x20.3x10.0 82.0% - 1500
DNV3-2422
3.00 24(18~36) 125 ±12 31.8x20.3x10.0 82.0% - 1500
DNV3-2423
3.00 24(18~36) 100 ±15 31.8x20.3x10.0 84.0% - 1500
DNV3-2424
3.00 24(18~36) 60 ±24 31.8x20.3x10.0 84.0% - 1500
DNV3-4811
3.00 48(36~72) 600 5.00 31.8x20.3x10.0 78.0% - 1500
DNV3-4815
3.00 48(36~72) 333 9.00 31.8x20.3x10.0 81.0% - 1500
DNV3-4812
3.00 48(36~72) 250 12.00 31.8x20.3x10.0 80.0% - 1500
DNV3-4814
3.00 48(36~72) 200 15.00 31.8x20.3x10.0 80.0% - 1500
DNV3-4813
3.00 48(36~72) 125 24.00 31.8x20.3x10.0 81.0% - 1500
DNV3-4821
3.00 48(36~72) 300 ±5 31.8x20.3x10.0 78.0% - 1500
DNV3-4825
3.00 48(36~72) 167 ±9 31.8x20.3x10.0 82.0% - 1500
DNV3-4822
3.00 48(36~72) 125 ±12 31.8x20.3x10.0 82.0% - 1500
DNV3-4823
3.00 48(36~72) 100 ±15 31.8x20.3x10.0 84.0% - 1500
DNV3-4824
3.00 48(36~72) 60 ±24 31.8x20.3x10.0 84.0% - 1500
DNV-3F
3.00 5-48V(2:1) - - 31.8x20.3x10.0 - - 3000
-
DNV3-0511F
3.00 5(4.5~9) 600 5.00 31.8x20.3x10.0 74.0% - 3000
DNV3-0515F
3.00 5(4.5~9) 333 9.00 31.8x20.3x10.0 80.0% - 3000
DNV3-0512F
3.00 5(4.5~9) 250 12.00 31.8x20.3x10.0 78.0% - 3000
DNV3-0513F
3.00 5(4.5~9) 200 15.00 31.8x20.3x10.0 78.0% - 3000
DNV3-0514F
3.00 5(4.5~9) 125 24.00 31.8x20.3x10.0 78.0% - 3000
DNV3-0521F
3.00 5(4.5~9) 300 ±5 31.8x20.3x10.0 76.0% - 3000
DNV3-0525F
3.00 5(4.5~9) 167 ±9 31.8x20.3x10.0 80.0% - 3000
DNV3-0522F
3.00 5(4.5~9) 125 ±12 31.8x20.3x10.0 78.0% - 3000
DNV3-0523F
3.00 5(4.5~9) 100 ±15 31.8x20.3x10.0 78.0% - 3000
DNV3-0524F
3.00 5(4.5~9) 60 ±24 31.8x20.3x10.0 78.0% - 3000
DNV3-1211F
3.00 12(9~18) 600 5.00 31.8x20.3x10.0 80.0% - 3000
DNV3-1215F
3.00 12(9~18) 333 9.00 31.8x20.3x10.0 80.0% - 3000
DNV3-1212F
3.00 12(9~18) 250 12.00 31.8x20.3x10.0 82.0% - 3000
DNV3-1213F
3.00 12(9~18) 100 15.00 31.8x20.3x10.0 82.0% - 3000
DNV3-1214F
3.00 12(9~18) 125 24.00 31.8x20.3x10.0 82.0% - 3000
DNV3-1221F
3.00 12(9~18) 300 ±5 31.8x20.3x10.0 80.0% - 3000
DNV3-1225F
3.00 12(9~18) 167 ±9 31.8x20.3x10.0 80.0% - 3000
DNV3-1222F
3.00 12(9~18) 125 ±12 31.8x20.3x10.0 82.0% - 3000
DNV3-1223F
3.00 12(9~18) 100 ±15 31.8x20.3x10.0 82.0% - 3000
DNV3-1224F
3.00 12(9~18) 60 ±24 31.8x20.3x10.0 82.0% - 3000
DNV3-2411F
3.00 24(18~36) 600 5.00 31.8x20.3x10.0 80.0% - 3000
DNV3-2415F
3.00 24(18~36) 333 9.00 31.8x20.3x10.0 80.0% - 3000
DNV3-2412F
3.00 24(18~36) 250 12.00 31.8x20.3x10.0 86.0% - 3000
DNV3-2413F
3.00 24(18~36) 200 15.00 31.8x20.3x10.0 86.0% - 3000
DNV3-2414F
3.00 24(18~36) 125 24.00 31.8x20.3x10.0 86.0% - 3000
DNV3-2421F
3.00 24(18~36) 300 ±5 31.8x20.3x10.0 80.0% - 3000
DNV3-2425F
3.00 24(18~36) 167 ±9 31.8x20.3x10.0 80.0% - 3000
DNV3-2422F
3.00 24(18~36) 125 ±12 31.8x20.3x10.0 82.0% - 3000
DNV3-2423F
3.00 24(18~36) 100 ±15 31.8x20.3x10.0 82.0% - 3000
DNV3-2424F
3.00 24(18~36) 60 ±24 31.8x20.3x10.0 82.0% - 3000
DNV3-4811F
3.00 48(36~72) 600 5.00 31.8x20.3x10.0 82.0% - 3000
DNV3-4815F
3.00 48(36~72) 333 9.00 31.8x20.3x10.0 84.0% - 3000
DNV3-4812F
3.00 48(36~72) 250 12.00 31.8x20.3x10.0 84.0% - 3000
DNV3-4813F
3.00 48(36~72) 200 15.00 31.8x20.3x10.0 78.0% - 3000
DNV3-4814F
3.00 48(36~72) 125 24.00 31.8x20.3x10.0 81.0% - 3000
DNV3-4821F
3.00 48(36~72) 300 ±5 31.8x20.3x10.0 80.0% - 3000
DNV3-4825F
3.00 48(36~72) 167 ±9 31.8x20.3x10.0 80.0% - 3000
DNV3-4822F
3.00 48(36~72) 125 ±12 31.8x20.3x10.0 81.0% - 3000
DNV3-4823F
3.00 48(36~72) 100 ±15 31.8x20.3x10.0 78.0% - 3000
DNV3-4824F
3.00 48(36~72) 60 ±24 31.8x20.3x10.0 82.0% - 3000
DNV-3W
3.00 24V 48V(4:1) - - 31.8x20.3x10.0 - - 1500
-
DNV3W-2411
3.00 24(9~36) 600 5.00 31.8x20.3x10.0 78.0% - 1500
DNV3W-2415
3.00 24(9~36) 333 9.00 31.8x20.3x10.0 77.0% - 1500
DNV3W-2412
3.00 24(9~36) 250 12.00 31.8x20.3x10.0 81.0% - 1500
DNV3W-2414
3.00 24(9~36) 200 15.00 31.8x20.3x10.0 80.0% - 1500
DNV3W-2413
3.00 24(9~36) 125 24.00 31.8x20.3x10.0 81.0% - 1500
DNV3W-2421
3.00 24(9~36) 300 ±5 31.8x20.3x10.0 76.0% - 1500
DNV3W-2425
3.00 24(9~36) 167 ±9 31.8x20.3x10.0 79.0% - 1500
DNV3W-2422
3.00 24(9~36) 125 ±12 31.8x20.3x10.0 80.0% - 1500
DNV3W-2423
3.00 24(9~36) 100 ±15 31.8x20.3x10.0 80.0% - 1500
DNV3W-2424
3.00 24(9~36) 60 ±24 31.8x20.3x10.0 81.0% - 1500
DNV3W-4811
3.00 48(18~72) 600 5.00 31.8x20.3x10.0 76.0% - 1500
DNV3W-4815
3.00 48(18~72) 333 9.00 31.8x20.3x10.0 80.0% - 1500
DNV3W-4812
3.00 48(18~72) 250 12.00 31.8x20.3x10.0 82.0% - 1500
DNV3W-4814
3.00 48(18~72) 200 15.00 31.8x20.3x10.0 80.0% - 1500
DNV3W-4813
3.00 48(18~72) 125 24.00 31.8x20.3x10.0 81.0% - 1500
DNV3W-4821
3.00 48(18~72) 300 ±5 31.8x20.3x10.0 78.0% - 1500
DNV3W-4825
3.00 48(18~72) 167 ±9 31.8x20.3x10.0 79.0% - 1500
DNV3W-4822
3.00 48(18~72) 125 ±12 31.8x20.3x10.0 82.0% - 1500
DNV3W-4823
3.00 48(18~72) 100 ±15 31.8x20.3x10.0 81.0% - 1500
DNV3W-4824
3.00 48(18~72) 60 ±24 31.8x20.3x10.0 82.0% - 1500
DMV-5
5.00 5-48V(2:1) - - 25.4x25.4x10.16 - - 1500
-

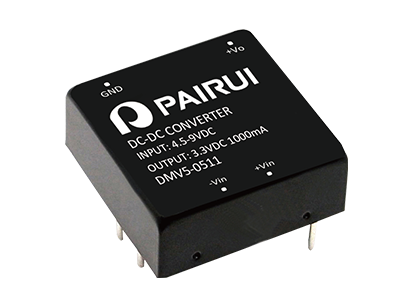

DMV5-0511
5.00 5(4.5~9) 1000 3.30 25.4x25.4x10.16 72.0% - 1500
DMV5-0512
5.00 5(4.5~9) 1000 5.00 25.4x25.4x10.16 75.0% - 1500
DMV5-0513
5.00 5(4.5~9) 550 9.00 25.4x25.4x10.16 76.0% - 1500
DMV5-0514
5.00 5(4.5~9) 410 12.00 25.4x25.4x10.16 77.0% - 1500
DMV5-0515
5.00 5(4.5~9) 330 15.00 25.4x25.4x10.16 78.0% - 1500
DMV5-0516
5.00 5(4.5~9) 210 24.00 25.4x25.4x10.16 78.0% - 1500
DMV5-0521
5.00 5(4.5~9) 500 ±3.3 25.4x25.4x10.16 70.0% - 1500
DMV5-0522
5.00 5(4.5~9) 500 ±5 25.4x25.4x10.16 74.0% - 1500
DMV5-0523
5.00 5(4.5~9) 275 ±9 25.4x25.4x10.16 75.0% - 1500
DMV5-0524
5.00 5(4.5~9) 205 ±12 25.4x25.4x10.16 77.0% - 1500
DMV5-0525
5.00 5(4.5~9) 165 ±15 25.4x25.4x10.16 78.0% - 1500
DMV5-0526
5.00 5(4.5~9) 100 ±24 25.4x25.4x10.16 77.0% - 1500
DMV5-1211
5.00 12(9~18) 1000 3.30 25.4x25.4x10.16 72.0% - 1500
DMV5-1212
5.00 12(9~18) 1000 5.00 25.4x25.4x10.16 75.0% - 1500
DMV5-1213
5.00 12(9~18) 550 9.00 25.4x25.4x10.16 76.0% - 1500
DMV5-1214
5.00 12(9~18) 410 12.00 25.4x25.4x10.16 77.0% - 1500
DMV5-1215
5.00 12(9~18) 330 15.00 25.4x25.4x10.16 78.0% - 1500
DMV5-1216
5.00 12(9~18) 210 24.00 25.4x25.4x10.16 79.0% - 1500
DMV5-1221
5.00 12(9~18) 500 ±3.3 25.4x25.4x10.16 70.0% - 1500
DMV5-1222
5.00 12(9~18) 500 ±5 25.4x25.4x10.16 78.0% - 1500
DMV5-1223
5.00 12(9~18) 275 ±9 25.4x25.4x10.16 80.0% - 1500
DMV5-1224
5.00 12(9~18) 205 ±12 25.4x25.4x10.16 80.0% - 1500
DMV5-1225
5.00 12(9~18) 165 ±15 25.4x25.4x10.16 81.0% - 1500
DMV5-1226
5.00 12(9~18) 100 ±24 25.4x25.4x10.16 81.0% - 1500
DMV5-2411
5.00 24(18~36) 1000 3.30 25.4x25.4x10.16 72.0% - 1500
DMV5-2412
5.00 24(18~36) 1000 5.00 25.4x25.4x10.16 81.0% - 1500
DMV5-2413
5.00 24(18~36) 550 9.00 25.4x25.4x10.16 79.0% - 1500
DMV5-4822
5.00 48(36~72) 500 ±5 25.4x25.4x10.16 79.0% - 1500
DMV5-2414
5.00 24(18~36) 410 12.00 25.4x25.4x10.16 80.0% - 1500
DMV5-4823
5.00 48(36~72) 275 ±9 25.4x25.4x10.16 79.0% - 1500
DMV5-2415
5.00 24(18~36) 330 15.00 25.4x25.4x10.16 81.0% - 1500
DMV5-4824
5.00 48(36~72) 205 ±12 25.4x25.4x10.16 81.0% - 1500
DMV5-2416
5.00 24(18~36) 210 24.00 25.4x25.4x10.16 82.0% - 1500
DMV5-4825
5.00 48(36~72) 165 ±15 25.4x25.4x10.16 83.0% - 1500
DMV5-2421
5.00 24(18~36) 500 ±3.3 25.4x25.4x10.16 70.0% - 1500
DMV5-4826
5.00 48(36~72) 100 ±24 25.4x25.4x10.16 83.0% - 1500
DMV5-2422
5.00 24(18~36) 500 ±5 25.4x25.4x10.16 79.0% - 1500
DMV5-2423
5.00 24(18~36) 275 ±9 25.4x25.4x10.16 79.0% - 1500
DMV5-2424
5.00 24(18~36) 205 ±12 25.4x25.4x10.16 81.0% - 1500
DMV5-2425
5.00 24(18~36) 165 ±15 25.4x25.4x10.16 83.0% - 1500
DMV5-2426
5.00 24(18~36) 100 ±24 25.4x25.4x10.16 83.0% - 1500
DMV5-4811
5.00 48(36~72) 1000 3.30 25.4x25.4x10.16 72.0% - 1500
DMV5-4812
5.00 48(36~72) 1000 5.00 25.4x25.4x10.16 80.0% - 1500
DMV5-4813
5.00 48(36~72) 550 9.00 25.4x25.4x10.16 82.0% - 1500
DMV5-4814
5.00 48(36~72) 410 12.00 25.4x25.4x10.16 82.0% - 1500
DMV5-4815
5.00 48(36~72) 330 15.00 25.4x25.4x10.16 83.0% - 1500
DMV5-4816
5.00 48(36~72) 210 24.00 25.4x25.4x10.16 84.0% - 1500
DMV5-4821
5.00 48(36~72) 500 ±3.3 25.4x25.4x10.16 72.0% - 1500
DMV-5W
5.00 24V 48V(4:1) - - 25.4x25.4x10.16 - - 1500
-
DMV5W-2411
5.00 24(9~36) 1000 3.30 25.4x25.4x10.16 80.0% - 1500
DMV5W-2412
5.00 24(9~36) 1000 5.00 25.4x25.4x10.16 80.0% - 1500
DMV5W-2413
5.00 24(9~36) 550 9.00 25.4x25.4x10.16 82.0% - 1500
DMV5W-2414
5.00 24(9~36) 410 12.00 25.4x25.4x10.16 82.0% - 1500
DMV5W-2415
5.00 24(9~36) 330 15.00 25.4x25.4x10.16 82.0% - 1500
DMV5W-2416
5.00 24(9~36) 210 24.00 25.4x25.4x10.16 82.0% - 1500
DMV5W-2421
5.00 24(9~36) 500 ±3.3 25.4x25.4x10.16 80.0% - 1500
DMV5W-2422
5.00 24(9~36) 500 ±5 25.4x25.4x10.16 80.0% - 1500
DMV5W-2423
5.00 24(9~36) 275 ±9 25.4x25.4x10.16 82.0% - 1500
DMV5W-2424
5.00 24(9~36) 205 ±12 25.4x25.4x10.16 82.0% - 1500
DMV5W-2425
5.00 24(9~36) 165 ±15 25.4x25.4x10.16 82.0% - 1500
DMV5W-2426
5.00 24(9~36) 100 ±24 25.4x25.4x10.16 82.0% - 1500
DMV5W-4811
5.00 48(18~72) 1000 3.30 25.4x25.4x10.16 80.0% - 1500
DMV5W-4812
5.00 48(18~72) 1000 5.00 25.4x25.4x10.16 80.0% - 1500
DMV5W-4813
5.00 48(18~72) 550 9.00 25.4x25.4x10.16 82.0% - 1500
DMV5W-4814
5.00 48(18~72) 410 12.00 25.4x25.4x10.16 82.0% - 1500
DMV5W-4815
5.00 48(18~72) 330 15.00 25.4x25.4x10.16 82.0% - 1500
DMV5W-4816
5.00 48(18~72) 210 24.00 25.4x25.4x10.16 82.0% - 1500
DMV5W-4821
5.00 48(18~72) 500 ±3.3 25.4x25.4x10.16 80.0% - 1500
DMV5W-4822
5.00 48(18~72) 500 ±5 25.4x25.4x10.16 80.0% - 1500
DMV5W-4823
5.00 48(18~72) 275 ±9 25.4x25.4x10.16 82.0% - 1500
DMV5W-4824
5.00 48(18~72) 205 ±12 25.4x25.4x10.16 82.0% - 1500
DMV5W-4825
5.00 48(18~72) 165 ±15 25.4x25.4x10.16 82.0% - 1500
DMV5W-4826
5.00 48(18~72) 100 ±24 25.4x25.4x10.16 82.0% - 1500
DNV-5
5.00 5-48V(2:1) - - 31.8x20.3x10.0 - - 1500
-
DNV5-0510
5.00 5(4.5~9) 1200 3.30 31.8x20.3x10.0 72.0% - 1500
DNV5-0511
5.00 5(4.5~9) 1000 5.00 31.8x20.3x10.0 74.0% - 1500
DNV5-0515
5.00 5(4.5~9) 555 9.00 31.8x20.3x10.0 77.0% - 1500
DNV5-0512
5.00 5(4.5~9) 410 12.00 31.8x20.3x10.0 82.0% - 1500
DNV5-0513
5.00 5(4.5~9) 330 15.00 31.8x20.3x10.0 79.0% - 1500
DNV5-0514
5.00 5(4.5~9) 210 24.00 31.8x20.3x10.0 79.0% - 1500
DNV5-0521
5.00 5(4.5~9) 500 ±5 31.8x20.3x10.0 74.0% - 1500
DNV5-0525
5.00 5(4.5~9) 278 ±9 31.8x20.3x10.0 78.0% - 1500
DNV5-0522
5.00 5(4.5~9) 205 ±12 31.8x20.3x10.0 77.0% - 1500
DNV5-0523
5.00 5(4.5~9) 165 ±15 31.8x20.3x10.0 81.0% - 1500
DNV5-0524
5.00 5(4.5~9) 100 ±24 31.8x20.3x10.0 81.0% - 1500
DNV5-1210
5.00 12(9~18) 1200 3.30 31.8x20.3x10.0 72.0% - 1500
DNV5-1211
5.00 12(9~18) 1000 5.00 31.8x20.3x10.0 78.0% - 1500
DNV5-1215
5.00 12(9~18) 555 9.00 31.8x20.3x10.0 80.0% - 1500
DNV5-1212
5.00 12(9~18) 410 12.00 31.8x20.3x10.0 81.0% - 1500
DNV5-1213
5.00 12(9~18) 330 15.00 31.8x20.3x10.0 81.0% - 1500
DNV5-1214
5.00 12(9~18) 210 24.00 31.8x20.3x10.0 81.0% - 1500
DNV5-1221
5.00 12(9~18) 500 ±5 31.8x20.3x10.0 79.0% - 1500
DNV5-1225
5.00 12(9~18) 278 ±9 31.8x20.3x10.0 81.0% - 1500
DNV5-1222
5.00 12(9~18) 205 ±12 31.8x20.3x10.0 81.0% - 1500
DNV5-1223
5.00 12(9~18) 165 ±15 31.8x20.3x10.0 82.0% - 1500
DNV5-1224
5.00 12(9~18) 100 ±24 31.8x20.3x10.0 83.0% - 1500
DNV5-2410
5.00 24(18~36) 1200 3.30 31.8x20.3x10.0 72.0% - 1500
DNV5-2411
5.00 24(18~36) 1000 5.00 31.8x20.3x10.0 79.0% - 1500
DNV5-2415
5.00 24(18~36) 555 9.00 31.8x20.3x10.0 80.0% - 1500
DNV5-2412
5.00 24(18~36) 410 12.00 31.8x20.3x10.0 81.0% - 1500
DNV5-2413
5.00 24(18~36) 330 15.00 31.8x20.3x10.0 81.0% - 1500
DNV5-2414
5.00 24(18~36) 210 24.00 31.8x20.3x10.0 83.0% - 1500
DNV5-2421
5.00 24(18~36) 500 ±5 31.8x20.3x10.0 79.0% - 1500
DNV5-2425
5.00 24(18~36) 278 ±9 31.8x20.3x10.0 80.0% - 1500
DNV5-2422
5.00 24(18~36) 205 ±12 31.8x20.3x10.0 81.0% - 1500
DNV5-2423
5.00 24(18~36) 165 ±15 31.8x20.3x10.0 82.0% - 1500
DNV5-2424
5.00 24(18~36) 100 ±24 31.8x20.3x10.0 83.0% - 1500
DNV5-4811
5.00 48(36~72) 1000 5.00 31.8x20.3x10.0 81.0% - 1500
DNV5-4815
5.00 48(36~72) 555 9.00 31.8x20.3x10.0 81.0% - 1500
DNV5-4812
5.00 48(36~72) 410 12.00 31.8x20.3x10.0 81.0% - 1500
DNV5-4813
5.00 48(36~72) 330 15.00 31.8x20.3x10.0 83.0% - 1500
DNV5-4814
5.00 48(36~72) 210 24.00 31.8x20.3x10.0 84.0% - 1500
DNV5-4821
5.00 48(36~72) 500 ±5 31.8x20.3x10.0 79.0% - 1500
DNV5-4825
5.00 48(36~72) 278 ±9 31.8x20.3x10.0 80.0% - 1500
DNV5-4822
5.00 48(36~72) 205 ±12 31.8x20.3x10.0 81.0% - 1500
DNV5-4823
5.00 48(36~72) 165 ±15 31.8x20.3x10.0 82.0% - 1500
DNV5-4824
5.00 48(36~72) 100 ±24 31.8x20.3x10.0 82.0% - 1500
DNV-5F
5.00 5-48V(2:1) - - 31.8x20.3x10.0 - - 3000
-
DNV5-0511F
5.00 5(4.5~9) 1000 5.00 31.8x20.3x10.0 74.0% - 3000
DNV5-0515F
5.00 5(4.5~9) 555 9.00 31.8x20.3x10.0 77.0% - 3000
DNV5-0512F
5.00 5(4.5~9) 410 12.00 31.8x20.3x10.0 82.0% - 3000
DNV5-0513F
5.00 5(4.5~9) 330 15.00 31.8x20.3x10.0 79.0% - 3000
DNV5-0514F
5.00 5(4.5~9) 210 24.00 31.8x20.3x10.0 79.0% - 3000
DNV5-0521F
5.00 5(4.5~9) 500 ±5 31.8x20.3x10.0 74.0% - 3000
DNV5-0525F
5.00 5(4.5~9) 278 ±9 31.8x20.3x10.0 78.0% - 3000
DNV5-0522F
5.00 5(4.5~9) 205 ±12 31.8x20.3x10.0 77.0% - 3000
DNV5-0523F
5.00 5(4.5~9) 165 ±15 31.8x20.3x10.0 81.0% - 3000
DNV5-0524F
5.00 5(4.5~9) 100 ±24 31.8x20.3x10.0 81.0% - 3000
DNV5-1211F
5.00 12(9~18) 1000 5.00 31.8x20.3x10.0 78.0% - 3000
DNV5-1215F
5.00 12(9~18) 555 9.00 31.8x20.3x10.0 80.0% - 3000
DNV5-1212F
5.00 12(9~18) 410 12.00 31.8x20.3x10.0 81.0% - 3000
DNV5-1213F
5.00 12(9~18) 330 15.00 31.8x20.3x10.0 81.0% - 3000
DNV5-1214F
5.00 12(9~18) 210 24.00 31.8x20.3x10.0 81.0% - 3000
DNV5-1221F
5.00 12(9~18) 500 ±5 31.8x20.3x10.0 79.0% - 3000
DNV5-1225F
5.00 12(9~18) 278 ±9 31.8x20.3x10.0 81.0% - 3000
DNV5-1222F
5.00 12(9~18) 205 ±12 31.8x20.3x10.0 81.0% - 3000
DNV5-1223F
5.00 12(9~18) 165 ±15 31.8x20.3x10.0 82.0% - 3000
DNV5-1224F
5.00 12(9~18) 100 ±24 31.8x20.3x10.0 83.0% - 3000
DNV5-2411F
5.00 24(18~36) 1000 5.00 31.8x20.3x10.0 79.0% - 3000
DNV5-2415F
5.00 24(18~36) 555 9.00 31.8x20.3x10.0 80.0% - 3000
DNV5-2412F
5.00 24(18~36) 410 12.00 31.8x20.3x10.0 81.0% - 3000
DNV5-2413F
5.00 24(18~36) 330 15.00 31.8x20.3x10.0 81.0% - 3000
DNV5-2414F
5.00 24(18~36) 210 24.00 31.8x20.3x10.0 83.0% - 3000
DNV5-2421F
5.00 24(18~36) 500 ±5 31.8x20.3x10.0 79.0% - 3000
DNV5-2425F
5.00 24(18~36) 278 ±9 31.8x20.3x10.0 80.0% - 3000
DNV5-2422F
5.00 24(18~36) 205 ±12 31.8x20.3x10.0 81.0% - 3000
DNV5-2423F
5.00 24(18~36) 165 ±15 31.8x20.3x10.0 82.0% - 3000
DNV5-2424F
5.00 24(18~36) 100 ±24 31.8x20.3x10.0 83.0% - 3000
DNV5-4811F
5.00 48(36~72) 1000 5.00 31.8x20.3x10.0 81.0% - 3000
DNV5-4815F
5.00 48(36~72) 555 9.00 31.8x20.3x10.0 81.0% - 3000
DNV5-4812F
5.00 48(36~72) 410 12.00 31.8x20.3x10.0 81.0% - 3000
DNV5-4813F
5.00 48(36~72) 330 15.00 31.8x20.3x10.0 83.0% - 3000
DNV5-4814F
5.00 48(36~72) 210 24.00 31.8x20.3x10.0 84.0% - 3000
DNV5-4821F
5.00 48(36~72) 500 ±5 31.8x20.3x10.0 79.0% - 3000
DNV5-4825F
5.00 48(36~72) 278 ±9 31.8x20.3x10.0 80.0% - 3000
DNV5-4822F
5.00 48(36~72) 205 ±12 31.8x20.3x10.0 81.0% - 3000
DNV5-4823F
5.00 48(36~72) 165 ±15 31.8x20.3x10.0 82.0% - 3000
DNV5-4824F
5.00 48(36~72) 100 ±24 31.8x20.3x10.0 82.0% - 3000
DNV-5W
5.00 24V 48V(4:1) - - 31.8x20.3x10.0 - - 1500
-
DNV5W-2411
5.00 24(9~36) 1000 5.00 31.8x20.3x10.0 81.0% - 1500
DNV5W-2415
5.00 24(9~36) 555 9.00 31.8x20.3x10.0 80.0% - 1500
DNV5W-2412
5.00 24(9~36) 410 12.00 31.8x20.3x10.0 81.0% - 1500
DNV5W-2413
5.00 24(9~36) 330 15.00 31.8x20.3x10.0 81.0% - 1500
DNV5W-2414
5.00 24(9~36) 210 24.00 31.8x20.3x10.0 82.0% - 1500
DNV5W-2421
5.00 24(9~36) 500 ±5 31.8x20.3x10.0 79.0% - 1500
DNV5W-2425
5.00 24(9~36) 278 ±9 31.8x20.3x10.0 80.0% - 1500
DNV5W-2422
5.00 24(9~36) 205 ±12 31.8x20.3x10.0 81.0% - 1500
DNV5W-2423
5.00 24(9~36) 165 ±15 31.8x20.3x10.0 82.0% - 1500
DNV5W-2424
5.00 24(9~36) 100 ±24 31.8x20.3x10.0 83.0% - 1500
DNV5W-4811
5.00 48(18~72) 1000 5.00 31.8x20.3x10.0 81.0% - 1500
DNV5W-4815
5.00 48(18~72) 555 9.00 31.8x20.3x10.0 81.0% - 1500
DNV5W-4812
5.00 48(18~72) 410 12.00 31.8x20.3x10.0 81.0% - 1500
DNV5W-4813
5.00 48(18~72) 330 15.00 31.8x20.3x10.0 83.0% - 1500
DNV5W-4814
5.00 48(18~72) 210 24.00 31.8x20.3x10.0 83.0% - 1500
DNV5W-4821
5.00 48(18~72) 500 ±5 31.8x20.3x10.0 79.0% - 1500
DNV5W-4825
5.00 48(18~72) 278 ±9 31.8x20.3x10.0 80.0% - 1500
DNV5W-4822
5.00 48(18~72) 205 ±12 31.8x20.3x10.0 81.0% - 1500
DNV5W-4823
5.00 48(18~72) 165 ±15 31.8x20.3x10.0 82.0% - 1500
DNV5W-4824
5.00 48(18~72) 100 ±24 31.8x20.3x10.0 83.0% - 1500
DNV-5WF
5.00 24V 48V(4:1) - - 31.8x20.3x10.0 - - 3000
-
DNV5W-2411F
5.00 24(9~36) 1000 5.00 31.8x20.3x10.0 81.0% - 3000
DNV5W-2415F
5.00 24(9~36) 555 9.00 31.8x20.3x10.0 80.0% - 3000
DNV5W-2412F
5.00 24(9~36) 410 12.00 31.8x20.3x10.0 81.0% - 3000
DNV5W-2413F
5.00 24(9~36) 330 15.00 31.8x20.3x10.0 81.0% - 3000
DNV5W-2414F
5.00 24(9~36) 210 24.00 31.8x20.3x10.0 82.0% - 3000
DNV5W-2421F
5.00 24(9~36) 500 ±5 31.8x20.3x10.0 79.0% - 3000
DNV5W-2425F
5.00 24(9~36) 278 ±9 31.8x20.3x10.0 80.0% - 3000
DNV5W-2422F
5.00 24(9~36) 205 ±12 31.8x20.3x10.0 81.0% - 3000
DNV5W-2423F
5.00 24(9~36) 165 ±15 31.8x20.3x10.0 82.0% - 3000
DNV5W-2424F
5.00 24(9~36) 100 ±24 31.8x20.3x10.0 83.0% - 3000
DNV5W-4811F
5.00 48(18~72) 1000 5.00 31.8x20.3x10.0 81.0% - 3000
DNV5W-4815F
5.00 48(18~72) 555 9.00 31.8x20.3x10.0 81.0% - 3000
DNV5W-4812F
5.00 48(18~72) 410 12.00 31.8x20.3x10.0 81.0% - 3000
DNV5W-4813F
5.00 48(18~72) 330 15.00 31.8x20.3x10.0 83.0% - 3000
DNV5W-4814F
5.00 48(18~72) 210 24.00 31.8x20.3x10.0 83.0% - 3000
DNV5W-4821F
5.00 48(18~72) 500 ±5 31.8x20.3x10.0 79.0% - 3000
DNV5W-4825F
5.00 48(18~72) 278 ±9 31.8x20.3x10.0 80.0% - 3000
DNV5W-4822F
5.00 48(18~72) 205 ±12 31.8x20.3x10.0 81.0% - 3000
DNV5W-4823F
5.00 48(18~72) 165 ±15 31.8x20.3x10.0 82.0% - 3000
DNV5W-4824F
5.00 48(18~72) 100 ±24 31.8x20.3x10.0 83.0% - 3000
DMV-6
6.00 5-48V(2:1) - - 25.4x25.4x10.16 - - 1500
-
DMV6-0511
6.00 5(4.5~9) 1500 3.30 25.4x25.4x10.16 72.0% - 1500
DMV6-0512
6.00 5(4.5~9) 1200 5.00 25.4x25.4x10.16 76.0% - 1500
DMV6-0516
6.00 5(4.5~9) 667 9.00 25.4x25.4x10.16 77.0% - 1500
DMV6-0513
6.00 5(4.5~9) 500 12.00 25.4x25.4x10.16 78.0% - 1500
DMV6-0514
6.00 5(4.5~9) 400 15.00 25.4x25.4x10.16 79.0% - 1500
DMV6-0515
6.00 5(4.5~9) 250 24.00 25.4x25.4x10.16 79.0% - 1500
DMV6-0521
6.00 5(4.5~9) ±600 ±5 25.4x25.4x10.16 75.0% - 1500
DMV6-0522
6.00 5(4.5~9) ±333 ±9 25.4x25.4x10.16 76.0% - 1500
DMV6-0523
6.00 5(4.5~9) ±250 ±12 25.4x25.4x10.16 78.0% - 1500
DMV6-0524
6.00 5(4.5~9) ±200 ±15 25.4x25.4x10.16 79.0% - 1500
DMV6-0525
6.00 5(4.5~9) ±125 ±24 25.4x25.4x10.16 78.0% - 1500
DMV6-1211
6.00 12(9~18) 1500 3.30 25.4x25.4x10.16 72.0% - 1500
DMV6-1212
6.00 12(9~18) 1200 5.00 25.4x25.4x10.16 76.0% - 1500
DMV6-1216
6.00 12(9~18) 667 9.00 25.4x25.4x10.16 77.0% - 1500
DMV6-1213
6.00 12(9~18) 500 12.00 25.4x25.4x10.16 78.0% - 1500
DMV6-1214
6.00 12(9~18) 400 15.00 25.4x25.4x10.16 79.0% - 1500
DMV6-1215
6.00 12(9~18) 250 24.00 25.4x25.4x10.16 80.0% - 1500
DMV6-1221
6.00 12(9~18) ±600 ±5 25.4x25.4x10.16 79.0% - 1500
DMV6-1222
6.00 12(9~18) ±333 ±9 25.4x25.4x10.16 81.0% - 1500
DMV6-1223
6.00 12(9~18) ±250 ±12 25.4x25.4x10.16 81.0% - 1500
DMV6-1224
6.00 12(9~18) ±200 ±15 25.4x25.4x10.16 82.0% - 1500
DMV6-1225
6.00 12(9~18) ±125 ±24 25.4x25.4x10.16 82.0% - 1500
DMV6-2411
6.00 24(18~36) 1500 3.30 25.4x25.4x10.16 78.0% - 1500
DMV6-2412
6.00 24(18~36) 1200 5.00 25.4x25.4x10.16 82.0% - 1500
DMV6-2416
6.00 24(18~36) 667 9.00 25.4x25.4x10.16 80.0% - 1500
DMV6-2413
6.00 24(18~36) 500 12.00 25.4x25.4x10.16 81.0% - 1500
DMV6-2414
6.00 24(18~36) 400 15.00 25.4x25.4x10.16 82.0% - 1500
DMV6-2415
6.00 24(18~36) 250 24.00 25.4x25.4x10.16 83.0% - 1500
DMV6-2421
6.00 24(18~36) ±600 ±5 25.4x25.4x10.16 80.0% - 1500
DMV6-2422
6.00 24(18~36) ±333 ±9 25.4x25.4x10.16 80.0% - 1500
DMV6-2423
6.00 24(18~36) ±250 ±12 25.4x25.4x10.16 82.0% - 1500
DMV6-2424
6.00 24(18~36) ±200 ±15 25.4x25.4x10.16 84.0% - 1500
DMV6-2425
6.00 24(18~36) ±125 ±24 25.4x25.4x10.16 84.0% - 1500
DMV6-4811
6.00 48(36~72) 1500 3.30 25.4x25.4x10.16 78.0% - 1500
DMV6-4812
6.00 48(36~72) 1200 5.00 25.4x25.4x10.16 81.0% - 1500
DMV6-4816
6.00 48(36~72) 667 9.00 25.4x25.4x10.16 83.0% - 1500
DMV6-4813
6.00 48(36~72) 500 12.00 25.4x25.4x10.16 83.0% - 1500
DMV6-4814
6.00 48(36~72) 400 15.00 25.4x25.4x10.16 84.0% - 1500
DMV6-4815
6.00 48(36~72) 250 24.00 25.4x25.4x10.16 85.0% - 1500
DMV6-4821
6.00 48(36~72) ±600 ±5 25.4x25.4x10.16 80.0% - 1500
DMV6-4822
6.00 48(36~72) ±333 ±9 25.4x25.4x10.16 80.0% - 1500
DMV6-4823
6.00 48(36~72) ±250 ±12 25.4x25.4x10.16 82.0% - 1500
DMV6-4824
6.00 48(36~72) ±200 ±15 25.4x25.4x10.16 84.0% - 1500
DMV6-4825
6.00 48(36~72) ±125 ±24 25.4x25.4x10.16 84.0% - 1500
DMV-6W
6.00 24V 48V(4:1) - - 25.4x25.4x10.16 - - 1500
-
DMV6W-2411
6.00 24(9~36) 1500 3.30 25.4x25.4x10.16 78.0% - 1500
DMV6W-2412
6.00 24(9~36) 1200 5.00 25.4x25.4x10.16 80.0% - 1500
DMV6W-2416
6.00 24(9~36) 667 9.00 25.4x25.4x10.16 81.0% - 1500
DMV6W-2413
6.00 24(9~36) 500 12.00 25.4x25.4x10.16 82.0% - 1500
DMV6W-2414
6.00 24(9~36) 400 15.00 25.4x25.4x10.16 83.0% - 1500
DMV6W-2415
6.00 24(9~36) 250 24.00 25.4x25.4x10.16 84.0% - 1500
DMV6W-2421
6.00 24(9~36) ±600 ±5 25.4x25.4x10.16 80.0% - 1500
DMV6W-2424
6.00 24(9~36) ±333 ±9 25.4x25.4x10.16 81.0% - 1500
DMV6W-2422
6.00 24(9~36) ±250 ±12 25.4x25.4x10.16 82.0% - 1500
DMV6W-2423
6.00 24(9~36) ±200 ±15 25.4x25.4x10.16 82.0% - 1500
DMV6W-2425
6.00 24(9~36) ±125 ±24 25.4x25.4x10.16 83.0% - 1500
DMV6W-4811
6.00 48(18~72) 1500 3.30 25.4x25.4x10.16 78.0% - 1500
DMV6W-4812
6.00 48(18~72) 1200 5.00 25.4x25.4x10.16 80.0% - 1500
DMV6W-4816
6.00 48(18~72) 667 9.00 25.4x25.4x10.16 81.0% - 1500
DMV6W-4813
6.00 48(18~72) 500 12.00 25.4x25.4x10.16 82.0% - 1500
DMV6W-4814
6.00 48(18~72) 400 15.00 25.4x25.4x10.16 82.0% - 1500
DMV6W-4815
6.00 48(18~72) 250 24.00 25.4x25.4x10.16 83.0% - 1500
DMV6W-4821
6.00 48(18~72) ±600 ±5 25.4x25.4x10.16 80.0% - 1500
DMV6W-4824
6.00 48(18~72) ±333 ±9 25.4x25.4x10.16 81.0% - 1500
DMV6W-4822
6.00 48(18~72) ±250 ±12 25.4x25.4x10.16 82.0% - 1500
DMV6W-4823
6.00 48(18~72) ±200 ±15 25.4x25.4x10.16 83.0% - 1500
DMV6W-4825
6.00 48(18~72) ±125 ±24 25.4x25.4x10.16 84.0% - 1500
DMV-6WF
6.00 24V 48V(4:1) - - 25.4x25.4x10.16 - - 3000
-
DMV6W-2411F
6.00 24(9~36) 1500 3.30 25.4x25.4x10.16 78.0% - 3000
DMV6W-2412F
6.00 24(9~36) 1200 5.00 25.4x25.4x10.16 80.0% - 3000
DMV6W-2416F
6.00 24(9~36) 667 9.00 25.4x25.4x10.16 81.0% - 3000
DMV6W-2413F
6.00 24(9~36) 500 12.00 25.4x25.4x10.16 82.0% - 3000
DMV6W-2414F
6.00 24(9~36) 400 15.00 25.4x25.4x10.16 83.0% - 3000
DMV6W-2415F
6.00 24(9~36) 250 24.00 25.4x25.4x10.16 84.0% - 3000
DMV6W-2421F
6.00 24(9~36) ±600 ±5 25.4x25.4x10.16 80.0% - 3000
DMV6W-2424F
6.00 24(9~36) ±333 ±9 25.4x25.4x10.16 81.0% - 3000
DMV6W-2422F
6.00 24(9~36) ±250 ±12 25.4x25.4x10.16 82.0% - 3000
DMV6W-2423F
6.00 24(9~36) ±200 ±15 25.4x25.4x10.16 82.0% - 3000
DMV6W-2425F
6.00 24(9~36) ±125 ±24 25.4x25.4x10.16 83.0% - 3000
DMV6W-4811F
6.00 48(18~72) 1500 3.30 25.4x25.4x10.16 78.0% - 3000
DMV6W-4812F
6.00 48(18~72) 1200 5.00 25.4x25.4x10.16 80.0% - 3000
DMV6W-4816F
6.00 48(18~72) 667 9.00 25.4x25.4x10.16 81.0% - 3000
DMV6W-4813F
6.00 48(18~72) 500 12.00 25.4x25.4x10.16 82.0% - 3000
DMV6W-4814F
6.00 48(18~72) 400 15.00 25.4x25.4x10.16 82.0% - 3000
DMV6W-4815F
6.00 48(18~72) 250 24.00 25.4x25.4x10.16 83.0% - 3000
DMV6W-4821F
6.00 48(18~72) ±600 ±5 25.4x25.4x10.16 80.0% - 3000
DMV6W-4824F
6.00 48(18~72) ±333 ±9 25.4x25.4x10.16 81.0% - 3000
DMV6W-4822F
6.00 48(18~72) ±250 ±12 25.4x25.4x10.16 82.0% - 3000
DMV6W-4823F
6.00 48(18~72) ±200 ±15 25.4x25.4x10.16 83.0% - 3000
DMV6W-4825F
6.00 48(18~72) ±125 ±24 25.4x25.4x10.16 84.0% - 3000
DNV-6
6.00 5-48V(2:1) - - 31.8x20.3x10.0 - - 1500
-
DNV6-0510
6.00 5(4.5~9) 1200 3.30 31.8x20.3x10.0 72.0% - 1500
DNV6-0511
6.00 5(4.5~9) 1200 5.00 31.8x20.3x10.0 75.0% - 1500
DNV6-0515
6.00 5(4.5~9) 667 9.00 31.8x20.3x10.0 78.0% - 1500
DNV6-0512
6.00 5(4.5~9) 500 12.00 31.8x20.3x10.0 83.0% - 1500
DNV6-0513
6.00 5(4.5~9) 400 15.00 31.8x20.3x10.0 80.0% -
