HIS Series
Click to expand the criteria search box
HIS Series Filter Models: 5 in total, please see the table below.
| Series | Input voltage（V） | Output current（A） | Output voltage（V） | Efficiency | Certificate | Spec. | Sample Application |
| HIS15 | 85-264 | - | 5-48 | - | UL UKCA TUV FCC CB CE CUL | - | |
| HIS15-05 | 85-264 | 2.4 | 5 | 80% | UKCA CCC TUV CB | ||
| HIS15-12 | 85-264 | 1.25 | 12 | 85% | UKCA CCC TUV CB | ||
| HIS15-15 | 85-264 | 1 | 15 | 85% | UKCA CCC TUV CB | ||
| HIS15-24 | 85-264 | 0.63 | 24 | 86% | UKCA CCC TUV CB | ||
| HIS30 | 85-264 | - | 5-48 | - | UL UKCA TUV FCC CB CE CUL | - | |
| HIS30-5 | 85-264 | 3 | 5 | 82% | UKCA CCC TUV CB | ||
| HIS30-12 | 85-264 | 2.5 | 12 | 90% | UKCA CCC TUV CB | ||
| HIS30-15 | 85-264 | 2 | 15 | 90% | UKCA CCC TUV CB | ||
| HIS30-24 | 85-264 | 1.25 | 24 | 90% | UKCA CCC TUV CB | ||
| HIS30-48 | 85-264 | 0.625 | 48 | 91% | UKCA CCC TUV CB | ||
| HIS60 | 85-264 | - | 5-48 | - | UL UKCA TUV FCC CB CE CUL | - | |
| HIS60-5 | 90-264 | 6.5 | 5 | 78% | UKCA CCC TUV CB | ||
| HIS60-12 | 90-264 | 4.5 | 12 | 88% | UKCA CCC TUV CB | ||
| HIS60-24 | 90-264 | 2.5 | 24 | 89% | UKCA CCC TUV CB | ||
| HIS60-48 | 90-264 | 1.25 | 48 | 90% | UKCA CCC TUV CB | ||
| HIS100 | 85-264 | - | 12-48 | - | UL UKCA TUV FCC CB CE CUL | - | |
| HIS100-12 | 85-264 | 7.5 | 12 | 88% | UKCA CCC TUV CB | ||
| HIS100-15 | 85-264 | 6.5 | 15 | 89% | UKCA CCC TUV CB | ||
| HIS100-24 | 85-264 | 4.2 | 24 | 90% | UKCA CCC TUV CB | ||
| HIS100-48 | 85-264 | 2.1 | 48 | 90% | UKCA CCC TUV CB | ||
| HIS150 | 85-264 | - | 12-48 | - | UL UKCA TUV FCC CB CE CUL | - | |
| HIS150-12 | 90-264 | 11.3 | 12 | 88% | UKCA CCC TUV CB | ||
| HIS150-15 | 90-264 | 9.5 | 15 | 89% | UKCA CCC TUV CB | ||

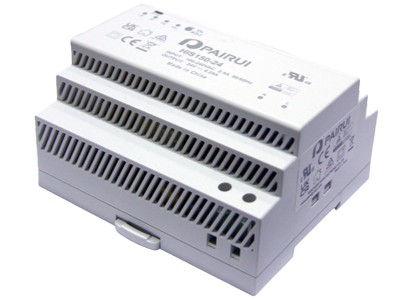

| HIS150-24 | 90-264 | 6.25 | 24 | 90% | UKCA CCC TUV CB | ||
| HIS150-48 | 90-264 | 3.2 | 48 | 90% | UKCA CCC TUV CB |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
