PIBH
Click to expand the criteria search box
PIBH Filter Models: 2 in total, please see the table below.
| Series | Rated power（W） | Input voltage（V） | Output current（mA） | Output voltage（V） | PF | Efficiency | Certificate | Spec. | Sample Application |
| PIBH Series(3-6W) | 3-6 | 220-240 | 300-350 | 4-22 | 0.7 | 72%-75% | TUV CB CE | - | |
| PIBH003C0300NSLPP1 | 3 | 220-240 | 300 | 5-13 | 0.7 | 72% | TUV CB CE | ||
| PIBH003C0350NSLPP1 | 3 | 220-240 | 350 | 4-10 | 0.7 | 72% | TUV CB CE | ||
| PIBH006C0300NSLPP1 | 6 | 220-240 | 300 | 12-22 | 0.7 | 75% | TUV CB CE | ||

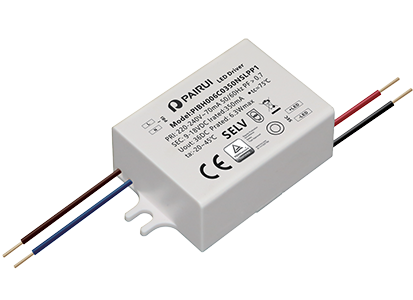

| PIBH006C0350NSLPP1 | 6 | 220-240 | 350 | 9-18 | 0.7 | 75% | TUV CB CE | ||
| PIBH Series(9-12W) | 9-12 | 220-240 | 300-350 | 15-40 | 0.7 | 80%-82% | TUV CB CE | - | |
| PIBH009C0300NSLPP2 | 9 | 220-240 | 300 | 20-32 | 0.7 | 80% | TUV CB CE | ||
| PIBH009C0350NSLPP2 | 9 | 220-240 | 350 | 15-27 | 0.7 | 80% | TUV CB CE | ||

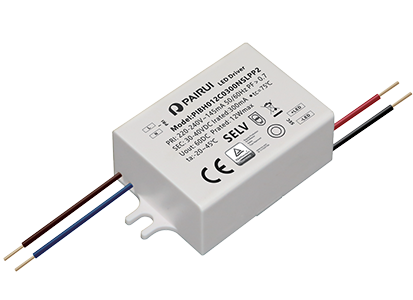

| PIBH012C0300NSLPP2 | 12 | 220-240 | 300 | 30-40 | 0.7 | 82% | TUV CB CE |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
