AC-DC Converter
| Series | Rated power（W） | Input voltage（V） | Output current（mA） | Output voltage（V） | Isolation voltage（V） | Capacitive Load（uF） | Certificate | Spec. | Sample Application |
| ASQ03 | 3 | 85-265Vac | 125-830 | 3.3-24 | 2000Vac | - | UL CE CB FCC UKCA | - | |
| ASQ03020 | 3 | 85-265Vac | 830 | 3.3 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ03021 | 3 | 85-265Vac | 600 | 5 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ03022 | 3 | 85-265Vac | 330 | 9 | 2000Vac | - | UL CE CB FCC UKCA | ||

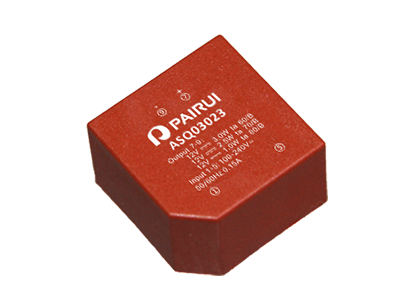

| ASQ03023 | 3 | 85-265Vac | 250 | 12 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ03024 | 3 | 85-265Vac | 200 | 15 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ03025 | 3 | 85-265Vac | 170 | 18 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ03026 | 3 | 85-265Vac | 125 | 24 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ05 | 5 | 85-265Vac | 210-1350 | 3.3-24 | 2000Vac | - | UL CE CB FCC UKCA | - | |
| ASQ05020 | 4.5 | 85-265Vac | 1350 | 3.3 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ05021 | 5 | 85-265Vac | 900 | 5 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ05022 | 5 | 85-265Vac | 560 | 9 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ05023 | 5 | 85-265Vac | 420 | 12 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ05024 | 5 | 85-265Vac | 320 | 15 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ05025 | 5 | 85-265Vac | 280 | 18 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ05026 | 5 | 85-265Vac | 210 | 24 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASQ05027 | 4.5 | 85-265Vac | 1180 | 3.8 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP07 | 7.5 | 85-265Vac | 310-2270 | 3.3-24 | 2000Vac | - | UL CE CB FCC UKCA | - | |
| ASP07200 | 7.5 | 85-265Vac | 2270 | 3.3 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP07201 | 7.5 | 85-265Vac | 1500 | 5 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP07202 | 7.5 | 85-265Vac | 830 | 9 | 2000Vac | - | UL CE CB FCC UKCA | ||

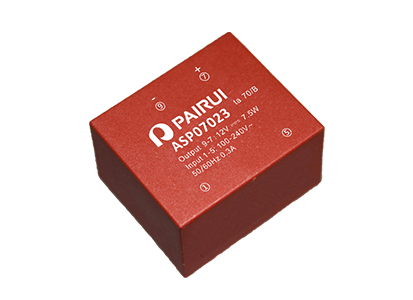

| ASP07203 | 7.5 | 85-265Vac | 625 | 12 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP07204 | 7.5 | 85-265Vac | 500 | 15 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP07205 | 7.5 | 85-265Vac | 420 | 18 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP07206 | 7.5 | 85-265Vac | 310 | 24 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP10 | 10 | 85-265Vac | 420-3000 | 3.3-24 | 2000Vac | - | UL CE CB FCC UKCA | - | |
| ASP10210 | 10 | 85-265Vac | 3000 | 3.3 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP10211 | 10 | 85-265Vac | 2000 | 5 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP10212 | 10 | 85-265Vac | 1100 | 9 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP10213 | 10 | 85-265Vac | 830 | 12 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP10214 | 10 | 85-265Vac | 670 | 15 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP10215 | 10 | 85-265Vac | 560 | 18 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP10216 | 10 | 85-265Vac | 420 | 24 | 2000Vac | - | UL CE CB FCC UKCA | ||
| ASP20 | 15-20 | 85-265Vac | 840-4500 | 3.3-24 | 2000Vac | - | CE UKCA | - | |
| ASP20210 | 15 | 85-265Vac | 4500 | 3.3 | 2000Vac | - | CE UKCA | ||
| ASP20211 | 20 | 85-265Vac | 4000 | 5 | 2000Vac | - | CE UKCA | ||
| ASP20212 | 20 | 85-265Vac | 2200 | 9 | 2000Vac | - | CE UKCA | ||
| ASP20213 | 20 | 85-265Vac | 1700 | 12 | 2000Vac | - | CE UKCA | ||
| ASP20214 | 20 | 85-265Vac | 1400 | 15 | 2000Vac | - | CE UKCA | ||
| ASP20215 | 20 | 85-265Vac | 1100 | 18 | 2000Vac | - | CE UKCA | ||
| ASP20216 | 20 | 85-265Vac | 840 | 24 | 2000Vac | - | CE UKCA | ||
| PLD03 | 3 | 85-305Vac | 125-900 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PLD03-3 | 3 | 85-305Vac | 900 | 3.3 | 4000Vac | 3000uF Max | UL CE | ||

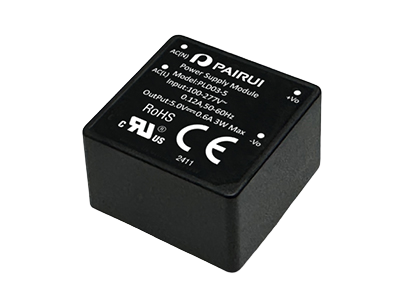

| PLD03-5 | 3 | 85-305Vac | 600 | 5 | 4000Vac | 3000uF Max | UL CE | ||
| PLD03-9 | 3 | 85-305Vac | 333 | 9 | 4000Vac | 1200uF Max | UL CE | ||
| PLD03-12 | 3 | 85-305Vac | 250 | 12 | 4000Vac | 1200uF Max | UL CE | ||
| PLD03-15 | 3 | 85-305Vac | 200 | 15 | 4000Vac | 680uF Max | UL CE | ||
| PLD03-24 | 3 | 85-305Vac | 125 | 24 | 4000Vac | 220uF Max | UL CE | ||
| PLD05 | 5 | 85-305Vac | 208-1200 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PLD05-3 | 5 | 85-305Vac | 1200 | 3.3 | 4000Vac | 3000uF Max | UL CE | ||
| PLD05-5 | 5 | 85-305Vac | 1000 | 5 | 4000Vac | 3000uF Max | UL CE | ||
| PLD05-9 | 5 | 85-305Vac | 555 | 9 | 4000Vac | 1200uF Max | UL CE | ||
| PLD05-12 | 5 | 85-305Vac | 416 | 12 | 4000Vac | 1200uF Max | UL CE | ||
| PLD05-15 | 5 | 85-305Vac | 333 | 15 | 4000Vac | 680uF Max | UL CE | ||
| PLD05-24 | 5 | 85-305Vac | 208 | 24 | 4000Vac | 220uF Max | UL CE | ||
| PLD10 | 10 | 85-305Vac | 410-2600 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PLD10-3 | 10 | 85-305Vac | 2600 | 3.3 | 4000Vac | 3000uF Max | UL CE | ||
| PLD10-5 | 10 | 85-305Vac | 2000 | 5 | 4000Vac | 3000uF Max | UL CE | ||
| PLD10-9 | 10 | 85-305Vac | 1100 | 9 | 4000Vac | 1200uF Max | UL CE | ||
| PLD10-12 | 10 | 85-305Vac | 830 | 12 | 4000Vac | 1200uF Max | UL CE | ||
| PLD10-15 | 10 | 85-305Vac | 660 | 15 | 4000Vac | 680uF Max | UL CE | ||
| PLD10-24 | 10 | 85-305Vac | 410 | 24 | 4000Vac | 220uF Max | UL CE | ||
| PLD15 | 15 | 85-305Vac | 625-4000 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PLD15-3 | 15 | 85-305Vac | 4000 | 3.3 | 4000Vac | 6600uF Max | UL CE | ||
| PLD15-5 | 15 | 85-305Vac | 3000 | 5 | 4000Vac | 5000uF Max | UL CE | ||
| PLD15-9 | 15 | 85-305Vac | 1670 | 9 | 4000Vac | 3000uF Max | UL CE | ||
| PLD15-12 | 15 | 85-305Vac | 1250 | 12 | 4000Vac | 2000uF Max | UL CE | ||
| PLD15-15 | 15 | 85-305Vac | 1000 | 15 | 4000Vac | 1500uF Max | UL CE | ||
| PLD15-24 | 15 | 85-305Vac | 625 | 24 | 4000Vac | 680uF Max | UL CE | ||
| PRM02 | 2 | 85-305Vac | 83-400mA | 5-24V | 3000V | - | CE UKCA | - | |
| PRM02-5 | 2W | 85-305Vac | 400 | 5 | 3000V | 4400uf Max | CE UKCA | ||
| PRM02-9 | 2W | 85-305Vac | 222 | 9 | 3000V | 3500uf Max | CE UKCA | ||
| PRM02-12 | 2W | 85-305Vac | 167 | 12 | 3000V | 3200uF Max | CE UKCA | ||
| PRM02-15 | 2W | 85-305Vac | 133 | 15 | 3000V | 2000uF Max | CE UKCA | ||
| PRM02-15 | 2W | 85-305Vac | 133 | 15 | 3000V | 2000uF Max | CE UKCA | ||
| PRM02-24 | 2W | 85-305Vac | 83 | 24 | 3000V | 1000uF Max | CE UKCA | ||
| PRM03 | 3 | 85-305Vac | 0.21A-1A | 3-24V | 4000V | - | CE UKCA | - | |
| PRM03-3 | 3W | 85-305Vac | 1000 | 3.3 | 4000V | 4400uF Max | CE UKCA | ||
| PRM03-5 | 3W | 85-305Vac | 1000 | 5 | 4000V | 4400uF Max | CE UKCA | ||
| PRM03-9 | 3W | 85-305Vac | 560 | 9 | 4000V | 3500uF Max | CE UKCA | ||
| PRM03-12 | 3W | 85-305Vac | 420 | 12 | 4000V | 3200uF Max | CE UKCA | ||
| PRM03-15 | 3W | 85-305Vac | 330 | 15 | 4000V | 2000uF Max | CE UKCA | ||
| PRM03-24 | 3W | 85-305Vac | 210 | 24 | 4000V | 1000uF Max | CE UKCA | ||
| PRM05 | 5 | 85-305Vac | 208-1250 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PRM05-3 | 5 | 85-305Vac | 1250 | 3.3 | 4000Vac | 4000uF Max | UL CE | ||
| PRM05-5 | 5 | 85-305Vac | 1000 | 5 | 4000Vac | 3000uF Max | UL CE | ||
| PRM05-9 | 5 | 85-305Vac | 555 | 9 | 4000Vac | 1200uF Max | UL CE | ||

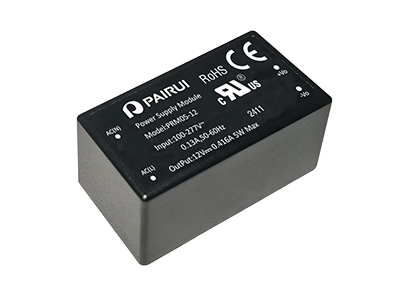

| PRM05-12 | 5 | 85-305Vac | 416 | 12 | 4000Vac | 1200uF Max | UL CE | ||
| PRM05-15 | 5 | 85-305Vac | 333 | 15 | 4000Vac | 680uF Max | UL CE | ||
| PRM05-24 | 5 | 85-305Vac | 208 | 24 | 4000Vac | 220uF Max | UL CE | ||
| PRM10 | 10 | 85-305Vac | 416-2500 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PRM10-3 | 10 | 85-305Vac | 2500 | 3.3 | 4000Vac | 6600uF Max | UL CE | ||
| PRM10-5 | 10 | 85-305Vac | 2000 | 5 | 4000Vac | 5000uF Max | UL CE | ||
| PRM10-9 | 10 | 85-305Vac | 1111 | 9 | 4000Vac | 3000uF Max | UL CE | ||
| PRM10-12 | 10 | 85-305Vac | 833 | 12 | 4000Vac | 2000uF Max | UL CE | ||
| PRM10-15 | 10 | 85-305Vac | 666 | 15 | 4000Vac | 1500uF Max | UL CE | ||
| PRM10-24 | 10 | 85-305Vac | 416 | 24 | 4000Vac | 680uF Max | UL CE | ||
| PRM15 | 15 | 85-305Vac | 625-4000 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PRM15-3 | 15 | 85-305Vac | 4000 | 3.3 | 4000Vac | 8000uF Max | UL CE | ||
| PRM15-5 | 15 | 85-305Vac | 3000 | 5 | 4000Vac | 8000uF Max | UL CE | ||
| PRM15-9 | 15 | 85-305Vac | 1670 | 9 | 4000Vac | 5400uF Max | UL CE | ||
| PRM15-12 | 15 | 85-305Vac | 1250 | 12 | 4000Vac | 4000uF Max | UL CE | ||
| PRM15-15 | 15 | 85-305Vac | 1000 | 15 | 4000Vac | 3000uF Max | UL CE | ||
| PRM15-24 | 15 | 85-305Vac | 625 | 24 | 4000Vac | 1000uF Max | UL CE | ||
| PRM20 | 20 | 85-305Vac | 830-4500 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PRM20-3 | 20 | 85-305Vac | 4500 | 3.3 | 4000Vac | 8000uF Max | UL CE | ||
| PRM20-5 | 20 | 85-305Vac | 4000 | 5 | 4000Vac | 8000uF Max | UL CE | ||
| PRM20-9 | 20 | 85-305Vac | 2200 | 9 | 4000Vac | 5400uF Max | UL CE | ||
| PRM20-12 | 20 | 85-305Vac | 1670 | 12 | 4000Vac | 4000uF Max | UL CE | ||
| PRM20-15 | 20 | 85-305Vac | 1330 | 15 | 4000Vac | 3000uF Max | UL CE | ||
| PRM20-24 | 20 | 85-305Vac | 830 | 24 | 4000Vac | 1000uF Max | UL CE | ||
| PRM30 | 30 | 85-305Vac | 625-6000 | 3.3-48 | 4200Vac | - | UL CE | - | |
| PRM30-3 | 30 | 85-305Vac | 6000 | 3.3 | 4200Vac | 6600uF Max | UL CE | ||
| PRM30-5 | 30 | 85-305Vac | 6000 | 5 | 4200Vac | 6600uF Max | UL CE | ||
| PRM30-9 | 30 | 85-305Vac | 3400 | 9 | 4200Vac | 4400uF Max | UL CE | ||
| PRM30-12 | 30 | 85-305Vac | 2500 | 12 | 4200Vac | 4400uF Max | UL CE | ||
| PRM30-15 | 30 | 85-305Vac | 2000 | 15 | 4200Vac | 3300uF Max | UL CE | ||
| PRM30-24 | 30 | 85-305Vac | 1300 | 24 | 4200Vac | 1000uF Max | UL CE | ||
| PRM30-48 | 30 | 85-305Vac | 625 | 48 | 4200Vac | 470uF Max | UL CE | ||
| PRM45 | 45W | 85-305Vac | 0.93A-9A | 5-48V | 4000V | - | - | - | |
| PRM45-5 | 45W | 85-305Vac | 9000 | 5 | 4000V | - | - | ||
| PRM45-12 | 45W | 85-305Vac | 3750 | 12 | 4000V | - | - | ||
| PRM45-15 | 45W | 85-305Vac | 3000 | 15 | 4000V | - | - | ||
| PRM45-24 | 45W | 85-305Vac | 1870 | 24 | 4000V | - | - | ||
| PRM45-48 | 45W | 85-305Vac | 930 | 48 | 4000V | - | - | ||
| PRM60 | 60W | 85-305Vac | 1.25A-10A | 5-48V | 4000V | - | - | - | |
| PRM60-05 | 60W | 85-305Vac | 10000 | 5 | 4000V | - | - | ||
| PRM60-12 | 60W | 85-305Vac | 5000 | 12 | 4000V | - | - | ||
| PRM60-15 | 60W | 85-305Vac | 4000 | 15 | 4000V | - | - | ||
| PRM60-24 | 60W | 85-305Vac | 2500 | 24 | 4000V | - | - | ||
| PRM60-48 | 60W | 85-305Vac | 1250 | 48 | 4000V | - | - | ||
| PRM90 | 90W | 85-305Vac | 1.87A-6.6A | - | 4000V | - | - | - | |
| PRM90-12 | 90W | 85-305Vac | 6600 | 12 | 4000V | - | - | ||
| PRM90-15 | 90W | 85-305Vac | 5600 | 15 | 4000V | - | - | ||
| PRM90-24 | 90W | 85-305Vac | 3750 | 24 | 4000V | - | - | ||
| PRM90-48 | 90W | 85-305Vac | 1870 | 48 | 4000V | - | - | ||
| SAB03 Series | 3 | 85-305 | 130-600 | 5-24 | - | - | CE UKCA | - | |
| SAB03-S05R2 | 3 | 85-305 | 600 | 5 | - | - | CE UKCA | ||
| SAB03-S09R2 | 3 | 85-305 | 330 | 9 | - | - | CE UKCA | ||
| SAB03-S12R2 | 3 | 85-305 | 250 | 12 | - | - | CE UKCA | ||
| SAB03-S15R2 | 3 | 85-305 | 200 | 15 | - | - | CE UKCA | ||
| SAB03-S24R2 | 3 | 85-305 | 130 | 24 | - | - | CE UKCA | ||
| SAB05-R2 Series | 5 | 85-305 | 210-1000 | 3.3-24 | - | - | CE UKCA | - | |
| SAB05-S03R2 | 5 | 85-305 | 1000 | 3.3 | - | - | CE UKCA | ||
| SAB05-S05R2 | 5 | 85-305 | 1000 | 5 | - | - | CE UKCA | ||
| SAB05-S09R2 | 5 | 85-305 | 550 | 9 | - | - | CE UKCA | ||
| SAB05-S12R2 | 5 | 85-305 | 250 | 12 | - | - | CE UKCA | ||
| SAB05-S15R2 | 5 | 85-305 | 330 | 15 | - | - | CE | ||
| SAB05-S24R2 | 5 | 85-305 | 210 | 24 | - | - | CE UKCA | ||
| SAB05-R3 Series | 5 | 85-305 | 210-800 | 5-24 | - | - | CE UKCA | - | |
| SAB05-S03R3 | 5 | 85-305 | 1000 | 3.3 | - | - | CE UKCA | ||
| SAB05-S24R3 | 5 | 85-305 | 210 | 24 | - | - | CE UKCA | ||
| SAB05-S05R3 | 5 | 85-305 | 800 | 5 | - | - | CE UKCA | ||
| SAB05-S12R3 | 5 | 85-305 | 420 | 12 | - | - | CE UKCA | ||
| SAB05-S15R3 | 5 | 85-305 | 330 | 15 | - | - | CE UKCA | ||
| SAB10-R3 Series | 10 | 85-305 | 420-2000 | 5-24 | - | - | CE UKCA | - | |
| SAB10-S05R3 | 10 | 85-305 | 2000 | 5 | - | - | CE UKCA | ||
| SAB10-S12R3 | 10 | 85-305 | 830 | 12 | - | - | CE UKCA | ||
| SAB10-S15R3 | 10 | 85-305 | 660 | 15 | - | - | CE UKCA | ||
| SAB10-S24R3 | 10 | 85-305 | 420 | 24 | - | - | CE UKCA | ||
| SAB10-R3P Series | 10 | 85-305 | 2000-420 | 5-24 | - | - | CE UKCA | - | |
| SAB10-S05R3P | 10 | 85-305 | 2000 | 5 | - | - | CE UKCA | ||
| SAB10-S12R3P | 10 | 85-305 | 830 | 12 | - | - | CE UKCA | ||
| SAB10-S15R3P | 10 | 85-305 | 660 | 15 | - | - | CE UKCA | ||
| SAB10-S24R3P | 10 | 85-305 | 420 | 24 | - | - | CE UKCA | ||
| SAB15 Series | 15 | 85-305 | 630-3000 | 3.3-24 | - | - | CE UKCA | - | |
| SAB15-S03 | 15 | 85-305 | 3000 | 3.3 | - | - | CE UKCA | ||
| SAB15-S05 | 15 | 85-305 | 3000 | 5 | - | - | CE UKCA | ||
| SAB15-S12 | 15 | 85-305 | 1250 | 12 | - | - | CE UKCA | ||
| SAB15-S12V5 | 15 | 85-305 | 1200 | 12.5 | - | - | CE UKCA | ||
| SAB15-S15 | 15 | 85-305 | 1000 | 15 | - | - | CE UKCA | ||
| SAB15-S24 | 15 | 85-305 | 630 | 24 | - | - | CE UKCA | ||
| SAB10 Series | 10 | 85-528 | 420-2000 | 5-24 | - | - | CE UKCA | - | |
| SAW10-5 | 10 | 85-528 | 2000 | 5 | - | - | CE UKCA | ||
| SAW10-12 | 10 | 85-528 | 830 | 12 | - | - | CE UKCA | ||
| SAW10-15 | 10 | 85-528 | 660 | 15 | - | - | CE UKCA | ||
| SAW10-24 | 10 | 85-528 | 420 | 24 | - | - | CE UKCA |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
| Series |
