PRM Filter Models: 5 in total, please see the table below.
| Series | Rated power（W） | Input voltage（V） | Output current（mA） | Output voltage（V） | Isolation voltage（V） | Capacitive Load（uF） | Certificate | Spec. | Sample Application |

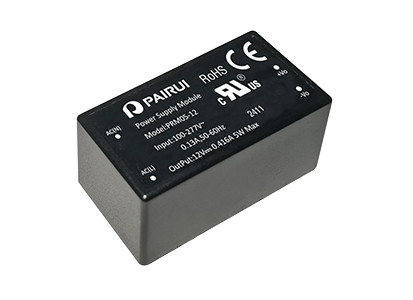

| PRM05 | 5 | 85-305Vac | 208-1250 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PRM05-3 | 5 | 85-305Vac | 1250 | 3.3 | 4000Vac | 4000uF Max | UL CE | ||
| PRM05-5 | 5 | 85-305Vac | 1000 | 5 | 4000Vac | 3000uF Max | UL CE | ||
| PRM05-9 | 5 | 85-305Vac | 555 | 9 | 4000Vac | 1200uF Max | UL CE | ||
| PRM05-12 | 5 | 85-305Vac | 416 | 12 | 4000Vac | 1200uF Max | UL CE | ||
| PRM05-15 | 5 | 85-305Vac | 333 | 15 | 4000Vac | 680uF Max | UL CE | ||
| PRM05-24 | 5 | 85-305Vac | 208 | 24 | 4000Vac | 220uF Max | UL CE | ||

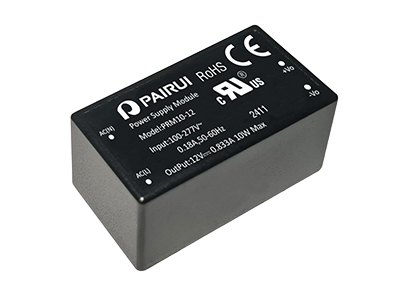

| PRM10 | 10 | 85-305Vac | 416-2500 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PRM10-3 | 10 | 85-305Vac | 2500 | 3.3 | 4000Vac | 6600uF Max | UL CE | ||
| PRM10-5 | 10 | 85-305Vac | 2000 | 5 | 4000Vac | 5000uF Max | UL CE | ||
| PRM10-9 | 10 | 85-305Vac | 1111 | 9 | 4000Vac | 3000uF Max | UL CE | ||
| PRM10-12 | 10 | 85-305Vac | 833 | 12 | 4000Vac | 2000uF Max | UL CE | ||
| PRM10-15 | 10 | 85-305Vac | 666 | 15 | 4000Vac | 1500uF Max | UL CE | ||
| PRM10-24 | 10 | 85-305Vac | 416 | 24 | 4000Vac | 680uF Max | UL CE | ||

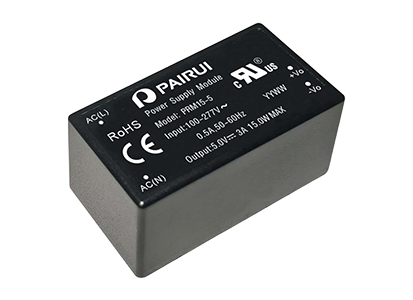

| PRM15 | 15 | 85-305Vac | 625-4000 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PRM15-3 | 15 | 85-305Vac | 4000 | 3.3 | 4000Vac | 8000uF Max | UL CE | ||
| PRM15-5 | 15 | 85-305Vac | 3000 | 5 | 4000Vac | 8000uF Max | UL CE | ||
| PRM15-9 | 15 | 85-305Vac | 1670 | 9 | 4000Vac | 5400uF Max | UL CE | ||
| PRM15-12 | 15 | 85-305Vac | 1250 | 12 | 4000Vac | 4000uF Max | UL CE | ||
| PRM15-15 | 15 | 85-305Vac | 1000 | 15 | 4000Vac | 3000uF Max | UL CE | ||
| PRM15-24 | 15 | 85-305Vac | 625 | 24 | 4000Vac | 1000uF Max | UL CE | ||

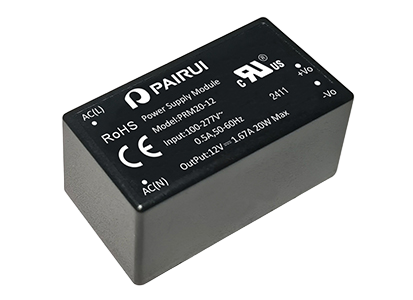

| PRM20 | 20 | 85-305Vac | 830-4500 | 3.3-24 | 4000Vac | - | UL CE | - | |
| PRM20-3 | 20 | 85-305Vac | 4500 | 3.3 | 4000Vac | 8000uF Max | UL CE | ||
| PRM20-5 | 20 | 85-305Vac | 4000 | 5 | 4000Vac | 8000uF Max | UL CE | ||
| PRM20-9 | 20 | 85-305Vac | 2200 | 9 | 4000Vac | 5400uF Max | UL CE | ||
| PRM20-12 | 20 | 85-305Vac | 1670 | 12 | 4000Vac | 4000uF Max | UL CE | ||
| PRM20-15 | 20 | 85-305Vac | 1330 | 15 | 4000Vac | 3000uF Max | UL CE | ||
| PRM20-24 | 20 | 85-305Vac | 830 | 24 | 4000Vac | 1000uF Max | UL CE | ||

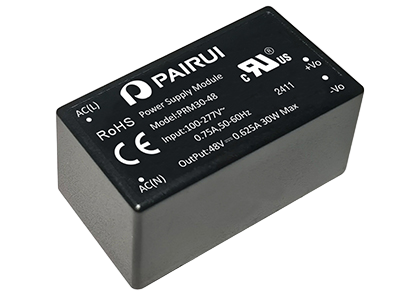

| PRM30 | 30 | 85-305Vac | 625-6000 | 3.3-48 | 4200Vac | - | UL CE | - | |
| PRM30-3 | 30 | 85-305Vac | 6000 | 3.3 | 4200Vac | 6600uF Max | UL CE | ||
| PRM30-5 | 30 | 85-305Vac | 6000 | 5 | 4200Vac | 6600uF Max | UL CE | ||
| PRM30-9 | 30 | 85-305Vac | 3400 | 9 | 4200Vac | 4400uF Max | UL CE | ||
| PRM30-12 | 30 | 85-305Vac | 2500 | 12 | 4200Vac | 4400uF Max | UL CE | ||
| PRM30-15 | 30 | 85-305Vac | 2000 | 15 | 4200Vac | 3300uF Max | UL CE | ||
| PRM30-24 | 30 | 85-305Vac | 1300 | 24 | 4200Vac | 1000uF Max | UL CE | ||
| PRM30-48 | 30 | 85-305Vac | 625 | 48 | 4200Vac | 470uF Max | UL CE |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
