SMD:1W Filter Models: 5 in total, please see the table below.
| Series | Rated power（W） | Input voltage（V） | Output voltage（V） | Output current（mA） | Dimension (mm) | Efficiency | Isolation voltage（V） | Spec. | Sample Application |

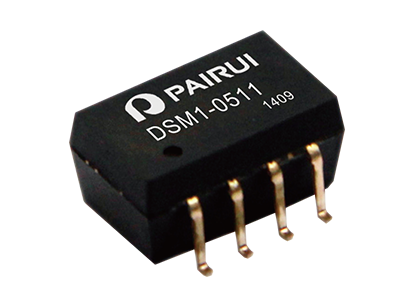

| DSM1-XX1XF | 1 | 3.3-12(±10%) | 3.3-24 | - | 12.8*7.8*6.3 | - | 1500 | - | |
| DSM1-0310 | 1 | 3.3(3.0-3.6) | 3.3 | 303 | 12.8*7.8*6.3 | 81 | 1500 | ||
| DSM1-0311 | 1 | 3.3(3.0-3.6) | 5 | 200 | 12.8*7.8*6.3 | 82 | 1500 | ||
| DSM1-0313 | 1 | 3.3(3.0-3.6) | 12 | 83 | 12.8*7.8*6.3 | 83 | 1500 | ||
| DSM1-0510 | 1 | 5(4.5-5.5) | 3.3 | 303 | 12.8*7.8*6.3 | 80 | 1500 | ||
| DSM1-0511 | 1 | 5(4.5-5.5) | 5 | 200 | 12.8*7.8*6.3 | 84 | 1500 | ||
| DSM1-0512 | 1 | 5(4.5-5.5) | 9 | 111 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DSM1-0513 | 1 | 5(4.5-5.5) | 12 | 83 | 12.8*7.8*6.3 | 84 | 1500 | ||
| DSM1-0514 | 1 | 5(4.5-5.5) | 15 | 67 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DSM1-0515 | 1 | 5(4.5-5.5) | 24 | 42 | 12.8*7.8*6.3 | 84 | 1500 | ||
| DSM1-1210 | 1 | 12(10.8-13.2) | 3.3 | 303 | 12.8*7.8*6.3 | 81 | 1500 | ||
| DSM1-1211 | 1 | 12(10.8-13.2) | 5 | 200 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DSM1-1212 | 1 | 12(10.8-13.2) | 9 | 111 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DSM1-1213 | 1 | 12(10.8-13.2) | 12 | 83 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DSM1-1214 | 1 | 12(10.8-13.2) | 15 | 67 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DSM1-1215 | 1 | 12(10.8-13.2) | 24 | 42 | 12.8*7.8*6.3 | 88 | 1500 | ||

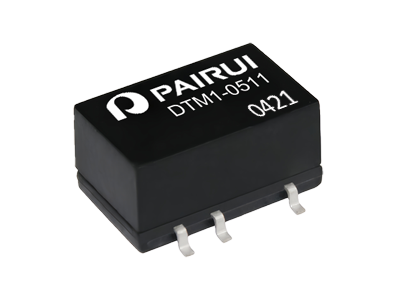

| DTM1-XX1X | 1 | 3.3-24(±10%) | 3.3-24 | - | 12.8*7.8*6.3 | - | 1500 | - | |
| DTM1-0310 | 1 | 3.3（2.97-3.63） | 3.3 | 303 | 12.8*7.8*6.3 | 81 | 1500 | ||
| DTM1-0311 | 1 | 3.3（2.97-3.63） | 5 | 200 | 12.8*7.8*6.3 | 82 | 1500 | ||
| DTM1-0313 | 1 | 3.3（2.97-3.63） | 12 | 83 | 12.8*7.8*6.3 | 83 | 1500 | ||
| DTM1-0510 | 1 | 5（4.5-5.5） | 3.3 | 303 | 12.8*7.8*6.3 | 80 | 1500 | ||
| DTM1-0511 | 1 | 5（4.5-5.5） | 5 | 200 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DTM1-0512 | 1 | 5（4.5-5.5） | 9 | 111 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DTM1-0513 | 1 | 5（4.5-5.5） | 12 | 83 | 12.8*7.8*6.3 | 84 | 1500 | ||
| DTM1-0514 | 1 | 5（4.5-5.5） | 15 | 67 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DTM1-0515 | 1 | 5（4.5-5.5） | 24 | 42 | 12.8*7.8*6.3 | 83 | 1500 | ||
| DTM1-1210 | 1 | 12（10.8-13.2） | 3.3 | 303 | 12.8*7.8*6.3 | 81 | 1500 | ||
| DTM1-1211 | 1 | 12（10.8-13.2） | 5 | 200 | 12.8*7.8*6.3 | 84 | 1500 | ||
| DTM1-1212 | 1 | 12（10.8-13.2） | 9 | 111 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DTM1-1213 | 1 | 12（10.8-13.2） | 12 | 83 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DTM1-1214 | 1 | 12（10.8-13.2） | 15 | 67 | 12.8*7.8*6.3 | 85 | 1500 | ||
| DTM1-1215 | 1 | 12（10.8-13.2） | 24 | 42 | 12.8*7.8*6.3 | 84 | 1500 | ||
| DTM1-1511 | 1 | 15(13.5-16.5) | 5 | 200 | 12.8*7.8*6.3 | 84 | 1500 | ||
| DTM1-1513 | 1 | 15(13.5-16.5) | 12 | 83 | 12.8*7.8*6.3 | 88 | 1500 | ||
| DTM1-1514 | 1 | 15(13.5-16.5) | 15 | 67 | 12.8*7.8*6.3 | 84 | 1500 | ||
| DTM1-1515 | 1 | 15(13.5-16.5) | 24 | 42 | 12.8*7.8*6.3 | 86 | 1500 | ||
| DTM1-2410 | 1 | 24（21.6-26.4） | 3.3 | 303 | 12.8*7.8*6.3 | 82 | 1500 | ||
| DTM1-2411 | 1 | 24（21.6-26.4） | 5 | 200 | 12.8*7.8*6.3 | 84 | 1500 | ||
| DTM1-2412 | 1 | 24（21.6-26.4） | 9 | 111 | 12.8*7.8*6.3 | 86 | 1500 | ||
| DTM1-2413 | 1 | 24（21.6-26.4） | 12 | 83 | 12.8*7.8*6.3 | 84 | 1500 | ||
| DTM1-2414 | 1 | 24（21.6-26.4） | 15 | 67 | 12.8*7.8*6.3 | 84 | 1500 | ||
| DTM1-2415 | 1 | 24（21.6-26.4） | 24 | 42 | 12.8*7.8*6.3 | 87 | 1500 | ||

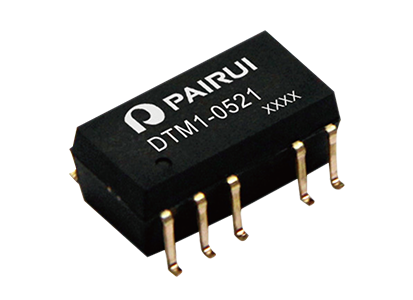

| DTM1-XX2X | 1 | 5-24(±10%) | ±5-±15 | - | 15.24*11.4*7.25 | - | 1500 | - | |
| DTM1-0521 | 1 | 5(4.5-5.5) | ±5 | ±100/±10 | 15.24*11.4*7.25 | 84 | 1500 | ||
| DTM1-0523 | 1 | 5(4.5-5.5) | ±12 | ±42/±4 | 15.24*11.4*7.25 | 84 | 1500 | ||
| DTM1-1221 | 1 | 12(10.8-13.2) | ±5 | ±100/±10 | 15.24*11.4*7.25 | 84 | 1500 | ||
| DTM1-1223 | 1 | 12(10.8-13.2) | ±12 | ±42/±4 | 15.24*11.4*7.25 | 85 | 1500 | ||
| DTM1-1224 | 1 | 12(10.8-13.2) | ±15 | ±33/±3 | 15.24*11.4*7.25 | 86 | 1500 | ||
| DTM1-2411 | 1 | 24(21.6-26.4) | ±5 | ±100/±10 | 15.24*11.4*7.25 | 84 | 1500 | ||
| DTM1-XX1XF | 1 | 3.3-24(±10%) | 3.3-24 | - | 12.8*7.8*6.3 | - | 3000 | - | |
| DTM1-0310F | 1 | 3.3（2.97-3.63） | 3.3 | 303 | 12.8*7.8*6.3 | 81 | 3000 | ||
| DTM1-0311F | 1 | 3.3（2.97-3.63） | 5 | 200 | 12.8*7.8*6.3 | 82 | 3000 | ||
| DTM1-0313F | 1 | 3.3（2.97-3.63） | 12 | 83 | 12.8*7.8*6.3 | 83 | 3000 | ||
| DTM1-0510F | 1 | 5（4.5-5.5） | 3.3 | 303 | 12.8*7.8*6.3 | 80 | 3000 | ||
| DTM1-0511F | 1 | 5（4.5-5.5） | 5 | 200 | 12.8*7.8*6.3 | 85 | 3000 | ||
| DTM1-0512F | 1 | 5（4.5-5.5） | 9 | 111 | 12.8*7.8*6.3 | 85 | 3000 | ||
| DTM1-0513F | 1 | 5（4.5-5.5） | 12 | 83 | 12.8*7.8*6.3 | 84 | 3000 | ||
| DTM1-0514F | 1 | 5（4.5-5.5） | 15 | 67 | 12.8*7.8*6.3 | 85 | 3000 | ||
| DTM1-0515F | 1 | 5（4.5-5.5） | 24 | 42 | 12.8*7.8*6.3 | 83 | 3000 | ||
| DTM1-1210F | 1 | 12（10.8-13.2） | 3.3 | 303 | 12.8*7.8*6.3 | 81 | 3000 | ||
| DTM1-1211F | 1 | 12（10.8-13.2） | 5 | 200 | 12.8*7.8*6.3 | 84 | 3000 | ||
| DTM1-1212F | 1 | 12（10.8-13.2） | 9 | 111 | 12.8*7.8*6.3 | 85 | 3000 | ||
| DTM1-1213F | 1 | 12（10.8-13.2） | 12 | 83 | 12.8*7.8*6.3 | 85 | 3000 | ||
| DTM1-1214F | 1 | 12（10.8-13.2） | 15 | 67 | 12.8*7.8*6.3 | 85 | 3000 | ||
| DTM1-1215F | 1 | 12（10.8-13.2） | 24 | 42 | 12.8*7.8*6.3 | 84 | 3000 | ||
| DTM1-1511F | 1 | 15(13.5-16.5) | 5 | 200 | 12.8*7.8*6.3 | 84 | 3000 | ||
| DTM1-1513F | 1 | 15(13.5-16.5) | 12 | 83 | 12.8*7.8*6.3 | 88 | 3000 | ||
| DTM1-1514F | 1 | 15(13.5-16.5) | 15 | 67 | 12.8*7.8*6.3 | 85 | 3000 | ||
| DTM1-1515F | 1 | 15(13.5-16.5) | 24 | 42 | 12.8*7.8*6.3 | 86 | 3000 | ||
| DTM1-2410F | 1 | 24（21.6-26.4） | 3.3 | 303 | 12.8*7.8*6.3 | 82 | 3000 | ||
| DTM1-2411F | 1 | 24（21.6-26.4） | 5 | 200 | 12.8*7.8*6.3 | 84 | 3000 | ||
| DTM1-2412F | 1 | 24（21.6-26.4） | 9 | 111 | 12.8*7.8*6.3 | 86 | 3000 | ||
| DTM1-2413F | 1 | 24（21.6-26.4） | 12 | 83 | 12.8*7.8*6.3 | 84 | 3000 | ||
| DTM1-2414F | 1 | 24（21.6-26.4） | 15 | 67 | 12.8*7.8*6.3 | 84 | 3000 | ||
| DTM1-2415F | 1 | 24（21.6-26.4） | 24 | 42 | 12.8*7.8*6.3 | 87 | 3000 | ||

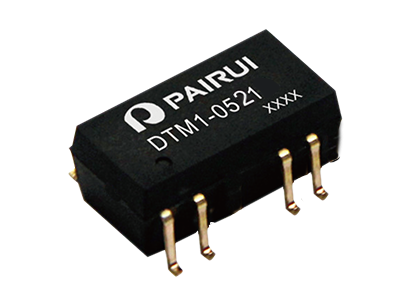

| DTM1-XX2XF | 1 | 5-24(±10%) | ±5-±15 | - | 15.24*11.4*7.25 | - | 3000 | - | |
| DTM1-0521F | 1 | 5(4.5-5.5) | ±5 | ±100/±10 | 15.24*11.4*7.25 | 84 | 3000 | ||
| DTM1-0522F | 1 | 5(4.5-5.5) | ±9 | ±55/±6 | 15.24*11.4*7.25 | 84 | 3000 | ||
| DTM1-0523F | 1 | 5(4.5-5.5) | ±12 | ±42/±4 | 15.24*11.4*7.25 | 84 | 3000 | ||
| DTM1-0524F | 1 | 5(4.5-5.5) | ±15 | ±33/±3 | 15.24*11.4*7.25 | 83 | 3000 | ||
| DTM1-1221F | 1 | 12(10.8-13.2) | ±5 | ±100/±10 | 15.24*11.4*7.25 | 84 | 3000 | ||
| DTM1-1223F | 1 | 12(10.8-13.2) | ±12 | ±42/±4 | 15.24*11.4*7.25 | 85 | 3000 | ||
| DTM1-1224F | 1 | 12(10.8-13.2) | ±15 | ±33/±3 | 15.24*11.4*7.25 | 86 | 3000 | ||
| DTM1-2421F | 1 | 24(21.6-26.4) | ±5 | ±100/±10 | 15.24*11.4*7.25 | 84 | 3000 | ||
| DTM1-2423F | 1 | 24(21.6-26.4) | ±12 | ±42/±4 | 15.24*11.4*7.25 | 85 | 3000 | ||
| DTM1-2424F | 1 | 24(21.6-26.4) | ±15 | ±33/±3 | 15.24*11.4*7.25 | 85 | 3000 |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
