EU LED Driver

Loading

Lateral swipe →
Series Rated power(W) Input voltage(V) Output current(mA) Output voltage(V) PF Efficiency Certificate Spec. Sample Application
PIBH003-P1
3 220-240 300,350 - 0.7 72% CE CB TUV
-
PIBH003C0300NSLPP1
3 220-240 300 5-13 0.7 72.0% CE CB TUV
PIBH003C0350NSLPP1
3 220-240 350 3-10 0.7 72.0% CE CB TUV
PIBH006-P1
6 220-240 300,350 - 0.7 75% CE CB TUV
-
PIBH006C0300NSLPP1
6 220-240 300 12-22 0.7 75.0% CE CB TUV
PIBH006C0350NSLPP1
6 220-240 350 9-18 0.7 75.0% CE CB TUV
PIBH009-P2
9 220-240 300,350 - 0.7 80% CE CB TUV
-
PIBH009C0300NSLPP2
9 220-240 300 20-32 0.7 80.0% CE CB TUV
PIBH009C0350NSLPP2
9 220-240 350 15-27 0.7 80.0% CE CB TUV
PIBH012-P2
12 220-240 300 - 0.7 82% CE CB TUV
-

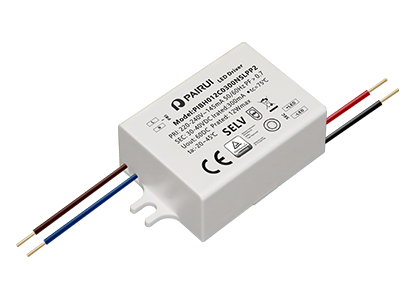

PIBH012C0300NSLPP2
12 220-240 300 30-40 0.7 82.0% CE CB TUV
PEAH025-G1
25 220-240 600 27-42 0.9 86% CE CB TUV SAA
-
PEAH025C0600VSRPG1
25 220-240 600 27-42 0.9 86% CE CB TUV SAA
PEAH030-G1
30 220-240 700 27-42 0.9 86% CE CB TUV SAA
-
PEAH030C0700VSRPG1
30 220-240 700 27-42 0.9 86% CE CB TUV SAA
PEAH035-G1
35 220-240 800 27-42 0.9 86% CE CB TUV SAA
-
PEAH035C0800VSRPG1
35 220-240 800 27-42 0.9 86% CE CB TUV SAA
PEAH040-G1
40 220-240 900-950 27-42 0.9 86% CE CB TUV SAA
-
PEAH040C0900VSRPG1
40 220-240 900 27-42 0.9 86% CE CB TUV SAA
PEAH040C0950VSRPG1
40 220-240 950 27-42 0.9 86% CE CB TUV SAA
PEAH045-G1
45 220-240 1000-1050 27-42 0.9 86% CE CB TUV SAA
-
PEAH045C1000VSRPG1
45 220-240 1000 27-42 0.9 86% CE CB TUV SAA
PEAH045C1050VSRPG1
45 220-240 1050 27-42 0.9 86% CE CB TUV SAA
PGDW12
12 90-264 - 12,24,36 - - CE
-
PGDW12V12
12 90-264 0-1A 12 - 79.0% CE
PGDW12V24
12 90-264 0-0.5A 24 - 81.0% CE
PGDW12V36
12 90-264 0-0.33A 36 - 82.0% CE
PGDW25
25 90-264 - 12,24,36 - - CE
-
PGDW25V12
25 90-264 0-2.1A 12 - 79.0% CE
PGDW25V24
25 90-264 0-1.1A 24 - 81.0% CE
PGDW25V36
25 90-264 0-0.7A 36 - 82.0% CE
PGDW36
36 90-264 - 12,24,36 - - CE
-
PGDW36V12
36 90-264 0-3A 12 - 80.0% CE
PGDW36V24
36 90-264 0-1.5A 24 - 82.0% CE
PGDW36V36
36 90-264 0-1A 36 - 83.0% CE
PGDW60
60 90-264 - 12,24 - - CE
-
PGDW60V12
60 90-264 0-5A 12 - 85.5% CE
PGDW60V24
60 90-264 0-2.5A 24 - 87.5% CE
PGDW75
75 90-264 - 12,24 - - CE
-
PGDW75V12
75 90-264 0-6.3A 12 - 85.5% CE
PGDW75V24
75 90-264 0-3.2A 24 - 87.5% CE
PGDH100
100 180-264 - 12,24,36 - - CE
-

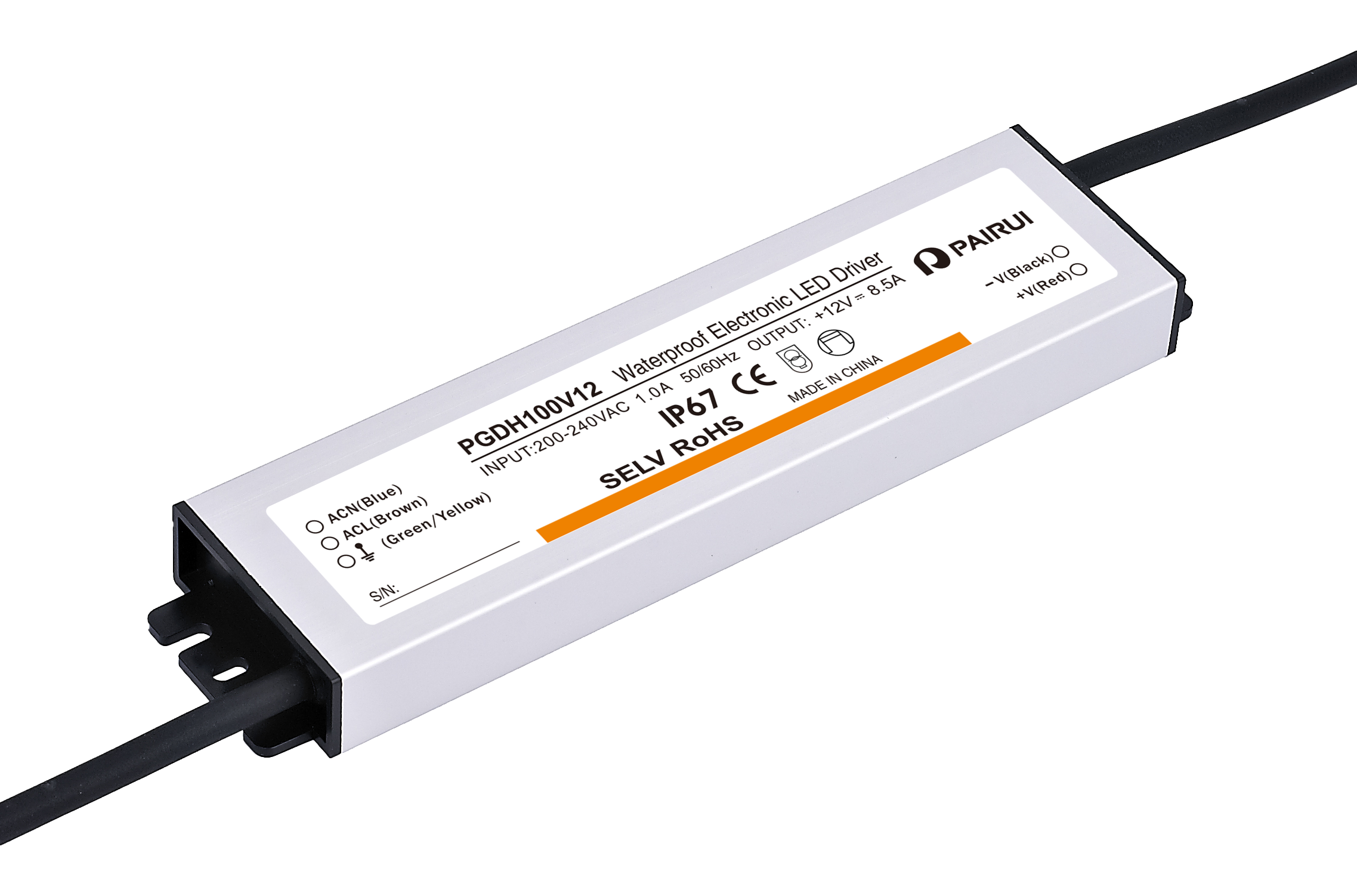

PGDH100V12
100 180-264 0-8.4A 12 - 87.0% CE
PGDH100V24
100 180-264 0-4.2A 24 - 88.0% CE
PGDH100V36
100 180-264 0-2.8A 36 - 88.0% CE
PGDH150
150 180-264 - 12,24,36 - - CE
-
PGDH150V12
150 180-264 0-12.5A 12 - 92.0% CE
PGDH150V24
150 180-264 0-6.3A 24 - 93.0% CE
PGDH150V36
150 180-264 0-4.2A 36 - 93.5% CE
PGDH200
200 180-264 - 12,24,36 - - CE
-
PGDH200V12
200 180-264 0-16.7A 12 - 92.0% CE
PGDH200V24
200 180-264 0-8.4A 24 - 93.0% CE
PGDH200V36
200 180-264 0-5.6A 36 - 93.5% CE
PGMW60
60 90-264 - 12,24 - - CE
-
PGMW60V12
60 90-264 0-5A 12 0.92 86.0% CE
PGMW60V24
60 90-264 0-2.5A 24 0.92 87.5% CE
PGMW100
100 90-264 - 12,24 - - CE
-
PGMW100V12
100 90-264 0-8.5A 12 0.92 85.0% CE
PGMW100V24
100 90-264 0-4.2A 24 0.92 87.0%
PGMW150
150 90-264 - 12,24 - - CE
-
PGMW150V12
150 90-264 0-12.5A 12 0.92 88.5% CE
PGMW150V24
150 90-264 0-6.3A 24 0.92 91.0% CE
PGMW200
200 90-264 - 12,24,36 - - CE
-
PGMW200V12
200 90-264 0-16.5A 12 0.95 90.0% CE
PGMW200V24
200 90-264 0-8.5A 24 0.95 92.0% CE
PGMW200V36
200 90-264 0-5.6A 36 0.95 93.0% CE
PGMW240
240 90-264 - 12,24 - - CE
-
PGMW240V12
240 90-264 0-20A 12 0.95 89.0% CE
PGMW240V24
240 90-264 0-10A 24 0.95 92.0% CE
PGMW320
320 90-264 - 12,24 - - CE
-
PGMW320V12
320 90-264 0-26.5A 12 0.95 89.0% CE
PGMW320V24
320 90-264 0-13.3A 24 0.95 92.0% CE
PXV Series
30W-180W 220-240V 1250mA-7500mA 24Vdc >0.9 - - -
-
PXV30W-24A
30W 220-240Vac 1250mA 24V >0.9 86% CE CCC
PXV60W-24A
60W 220-240Vac 2500mA 24V >0.9 86% CE CCC
PXV120W-24A
120W 220-240Vac 5000mA 24V >0.9 89% CE CCC
PXV180W-24A
180W 220-240Vac 7500mA 24V >0.9 91% CE CCC
PPL-40-IP
26w-40w 220-240VAC 650mA-1000mA 24-40Vdc >0.9 - CE CB CCC
-
PPL-40-C0650-IP
26W 220-240VAC 650mA 24-40Vdc >0.9 90.0% CE CB CCC
PPL-40-C0700-IP
28W 220-240VAC 700mA 24-40Vdc >0.9 90.0% CE CB CCC
PPL-40-C0750-IP
30W 220-240VAC 750mA 24-40Vdc >0.9 89.0% CE CB CCC
PPL-40-C0800-IP
32W 220-240VAC 800mA 24-40Vdc >0.9 89.0% CE CB CCC
PPL-40-C0850-IP
34W 220-240VAC 850mA 24-40Vdc >0.9 88.0% CE CB CCC
PPL-40-C0900-IP
36W 220-240VAC 900mA 24-40Vdc >0.9 88.0% CE CB CCC
PPL-40-C0950-IP
38W 220-240VAC 950mA 24-40Vdc >0.9 87.0% CE CB CCC
PPL-40-C1000-IP
40W 220-240VAC 1000mA 24-40Vdc >0.9 87.0% CE CB CCC
PPL-42-IP
27w-40w 220-240VAC 65mA-950mA 24-42Vdc >0.9 - CE CB CCC
-
PPL-42-C0650-IP
27W 220-240VAC 650mA 24-42Vdc >0.9 86.0% CE CB CCC
PPL-42-C0700-IP
29W 220-240VAC 700mA 24-42Vdc >0.9 86.0% CE CB CCC
PPL-42-C0750-IP
32W 220-240VAC 750mA 24-42Vdc >0.9 88.0% CE CB CCC
PPL-42-C0800-IP
34W 220-240VAC 800mA 24-42Vdc >0.9 88.0% CE CB CCC
PPL-42-C0850-IP
36W 220-240VAC 850mA 24-42Vdc >0.9 89.0% CE CB CCC
PPL-42-C0900-IP
38W 220-240VAC 900mA 24-42Vdc >0.9 89.0% CE CB CCC
PPL-42-C0950-IP
40W 220-240VAC 950mA 24-42Vdc >0.9 90.0% CE CB CCC
PPL-55-IP
28w-40w 220-240VAC 500mA-730mA 33-55Vdc >0.9 - CE CB CCC
-
PPL-55-C0500-IP
28W 220-240VAC 500mA 33-55Vdc >0.9 86.3% CE CB CCC
PPL-55-C0550-IP
30W 220-240VAC 550mA 33-55Vdc >0.9 87.0% CE CB CCC
PPL-55-C0600-IP
33W 220-240VAC 600mA 33-55Vdc >0.9 87.5% CE CB CCC
PPL-55-C0650-IP
36W 220-240VAC 650mA 33-55Vdc >0.9 88.0% CE CB CCC
PPL-55-C0700-IP
39W 220-240VAC 700mA 33-55Vdc >0.9 89.5% CE CB CCC
PPL-55-C0730-IP
40W 220-240VAC 730mA 33-55Vdc >0.9 89.5% CE CB CCC
PPL-76-IP
27w-38w 220-240VAC 350mA-500mA 46-76Vdc >0.9 - CE CB CCC
-
PPL-76-C0350-IP
27W 220-240VAC 350mA 46-76Vdc >0.9 86.0% CE CB CCC
PPL-76-C0400-IP
30W 220-240VAC 400mA 46-76Vdc >0.9 87.0% CE CB CCC
PPL-76-C0450-IP
34W 220-240VAC 450mA 46-76Vdc >0.9 87.0% CE CB CCC
PPL-76-C0500-IP
38W 220-240VAC 500mA 46-76Vdc >0.9 87.0% CE CB CCC
PPL-95-IP
29w-38w 220-240VAC 300mA-400mA 57-95Vdc >0.9 - CE CB CCC
-
PPL-95-C0300-IP
29W 220-240VAC 300mA 57-95Vdc >0.9 86.0% CE CB CCC
PPL-95-C0350-IP
33W 220-240VAC 350mA 57-95Vdc >0.9 87.0% CE CB CCC
PPL-95-C0400-IP
38W 220-240VAC 400mA 57-95Vdc >0.9 87.0% CE CB CCC
LPL-D-A&B
17-42W 220-240Vac 250mA-1050mA 9-42V >0.9 - CE CB -
-
LPL17W-42-C0400-D-A External
17W 220-240Vac 250mA-400mA 9-42V >0.9 0.855 CE CB
LPL17W-42-C0400-D-A Built-in
17W 220-240Vac 250mA-400mA 9-42V >0.9 0.855 CE CB
LPL17W-42-C0400-D-B External
17W 220-240Vac 250mA-400mA 9-42V >0.9 0.855 CE CB
LPL17W-42-C0400-D-B Built-in
17W 220-240Vac 250mA-400mA 9-42V >0.9 0.855 CE CB
LPL25W-42-C0600-D-A External
25W 220-240Vac 450mA-600mA 9-42V >0.9 0.88 CE CB
LPL25W-42-C0600-D-A Built-in
25W 220-240Vac 450mA-600mA 9-42V >0.9 0.88 CE CB
LPL25W-42-C0600-D-B External
25W 220-240Vac 450mA-600mA 9-42V >0.9 0.88 CE CB
LPL25W-42-C0600-D-B Built-in
25W 220-240Vac 450mA-600mA 9-42V >0.9 0.88 CE CB
PPL36W-42-C0850-D-A Built-in
42W 220-240Vac 600mA-850mA 9-42V >0.9 0.905 CE CB
PPL36W-42-C0850-D-B Built-in
42W 220-240Vac 600mA-850mA 9-42V >0.9 0.905 CE CB
PPL44W-42-C1050-D-A Built-in
42W 220-240Vac 900mA-1050mA 9-42V >0.9 0.91 CE CB
PPL44W-42-C1050-D-B Built-in
42W 220-240Vac 900mA-1050mA 9-42V >0.9 0.91 CE CB
PXD Series
19W-75W 220-240Vac 250mA-1400mA 27-54V - - CE CB CCC -
-
PXD19W-54-C0350
19W 220-240Vac 250/300/350/400mA 27-54V >0.9 85% CE CB CCC
PXD38W-54-C0700
38W 220-240Vac 400/500/600/700mA 27-54V >0.9 86% CE CB CCC
PXD57W-54-C1050
57W 220-240Vac 700/850/900/1050mA 27-54V >0.9 88% CE CB CCC
PXD75W-54-C1400
75W 220-240Vac 1100/1200/1300/1400mA 27-54V >0.9 89% CE CB CCC
PXF Series
20W-75W 220-240VAC 200mA-550mA 27-216 - - CE CB CCC -
-
PXF20W-67-C0350
20W 220-240Vac 200mA-350mA 27-67Vdc >0.9 87% CE CB FCC
PXF40W-133-C0350
40W 220-240Vac 200mA-350mA 50-133Vdc >0.9 90% CE CB CCC
PXF60W-200-C0350
65W 220-240Vac 200mA-350mA 84-200Vdc >0.9 91% CE CB CCC
PXF75W-216-C0550
75W 220-240Vac 350mA-550mA 90-216Vdc >0.9 94% CE CB CCC
PXF Series Color temperature adjustment
20W-75W 220-240VAC 200mA-550mA 27-216 - - CE CB CCC -
-
PXF20W-67-C0350-K
20W 220-240Vac 200mA-350mA 27-67Vdc - 87% CE CB CCC
PXF40W-133-C0350-K
40W 220-240Vac 200mA-350mA 50-133Vdc - 90% CE CB CCC
PXF60W-200-C0350-K
65W 220-240Vac 200mA-350mA 84-200Vdc - 91% CE CB CCC
PXF75W-216-C0550-K
75W 220-240Vac 350mA-550mA 90-216Vdc - 94% CE CB CCC
PSPL Series
14-40 220-240 350-1050 - >0.9 - CB CCC
-
PSPL-40-C0350-IP-15
14 220-240 350 24-42 >0.9 89% CB CCC
PSPL-40-C0350-IP-25
14 220-240 350 24-42 >0.9 89% CB CCC
PSPL-40-C0400-IP-15
16.8 220-240 400 24-42 >0.9 89% CB CCC
PSPL-40-C0400-IP-25
18.8 220-240 400 24-42 >0.9 89% CB CCC
PSPL-40-C0450-IP-15
18.9 220-240 450 24-42 >0.9 89% CB CCC
PSPL-40-C0450-IP-25
18.9 220-240 450 24-42 >0.9 89% CB CCC
PSPL-40-C0500-IP-15
21 220-240 500 24-42 >0.9 89% CB CCC
PSPL-40-C0500-IP-25
21 220-240 500 24-42 >0.9 89% CB CCC
PSPL-40-C0550-IP-15
23.1 220-240 550 24-42 >0.9 89% CB CCC
PSPL-40-C0550-IP-25
23.1 220-240 550 24-42 >0.9 89% CB CCC
PSPL-40-C0600-IP-15
25.2 220-240 600 24-42 >0.9 89% CB CCC
PSPL-40-C0600-IP-25
25.2 220-240 600 24-42 >0.9 89% CB CCC
PSPL-40-C0650-IP-15
27.3 220-240 650 24-42 >0.9 89% CB CCC
PSPL-40-C0650-IP-25
27.3 220-240 650 24-42 >0.9 89% CB CCC
PSPL-40-C0700-IP-15
29.4 220-240 700 24-42 >0.9 89% CB CCC
PSPL-40-C0700-IP-25
29.4 220-240 700 24-42 >0.9 89% CB CCC
PSPL-40-C0750-IP-15
31.5 220-240 750 24-42 >0.9 89% CB CCC
PSPL-40-C0750-IP-25
31.5 220-240 750 24-42 >0.9 89% CB CCC
PSPL-40-C0800-IP-15
33.6 220-240 800 24-42 >0.9 89% CB CCC
PSPL-40-C0800-IP-25
33.6 220-240 800 24-42 >0.9 89% CB CCC
PSPL-40-C0850-IP-15
35.7 220-240 850 24-42 >0.9 89% CB CCC
PSPL-40-C0850-IP-25
35.7 220-240 850 24-42 >0.9 89% CB CCC
PSPL-40-C0900-IP-15
37.8 220-240 900 24-42 >0.9 89%
PSPL-40-C0900-IP-25
37.8 220-240 900 24-42 >0.9 89% CB CCC
PSPL-40-C0950-IP-15
39.9 220-240 950 24-42 >0.9 89% CB CCC
PSPL-40-C0950-IP-25
39.9 220-240 950 24-42 >0.9 89% CB CCC
PSPL-40-C1000-IP-15
40 220-240 1000 24-40 >0.9 89% CB CCC
PSPL-40-C1000-IP-25
40 220-240 1000 24-40 >0.9 89% CB CCC
PSPL-40-C1050-IP-15
39.9 220-240 1050 24-38 >0.9 89% CB CCC
PSPL-40-C1050-IP-25
39.9 220-240 1050 24-38 >0.9 89% CB CCC
PSPL-120-C0350-IP-15
40 220-240 350 72-120 >0.9 89% CB CCC
PSPL-120-C0350-IP-25
40 220-240 350 72-120 >0.9 89% CB CCC
PSPL-55-C0350-IP-15
19.25 220-240 350 33-55 >0.9 89% CB CCC
PSPL-55-C0350-IP-25
19.25 220-240 350 33-55 >0.9 89% CB CCC

* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters

Series
PIBH003-P1
PIBH003C0300NSLPP1
PIBH003C0350NSLPP1
PIBH006-P1
PIBH006C0300NSLPP1
PIBH006C0350NSLPP1
PIBH009-P2
PIBH009C0300NSLPP2
PIBH009C0350NSLPP2
PIBH012-P2
PIBH012C0300NSLPP2
PEAH025-G1
PEAH025C0600VSRPG1
PEAH030-G1
PEAH030C0700VSRPG1
PEAH035-G1
PEAH035C0800VSRPG1
PEAH040-G1
PEAH040C0900VSRPG1
PEAH040C0950VSRPG1
PEAH045-G1
PEAH045C1000VSRPG1
PEAH045C1050VSRPG1
PGDW12
PGDW12V12
PGDW12V24
PGDW12V36
PGDW25
PGDW25V12
PGDW25V24
PGDW25V36
PGDW36
PGDW36V12
PGDW36V24
PGDW36V36
PGDW60
PGDW60V12
PGDW60V24
PGDW75
PGDW75V12
PGDW75V24
PGDH100
PGDH100V12
PGDH100V24
PGDH100V36
PGDH150
PGDH150V12
PGDH150V24
PGDH150V36
PGDH200
PGDH200V12
PGDH200V24
PGDH200V36
PGMW60
PGMW60V12
PGMW60V24
PGMW100
PGMW100V12
PGMW100V24
PGMW150
PGMW150V12
PGMW150V24
PGMW200
PGMW200V12
PGMW200V24
PGMW200V36
PGMW240
PGMW240V12
PGMW240V24
PGMW320
PGMW320V12
PGMW320V24
PXV Series
PXV30W-24A
PXV60W-24A
PXV120W-24A
PXV180W-24A
PPL-40-IP
PPL-40-C0650-IP
PPL-40-C0700-IP
PPL-40-C0750-IP
PPL-40-C0800-IP
PPL-40-C0850-IP
PPL-40-C0900-IP
PPL-40-C0950-IP
PPL-40-C1000-IP
PPL-42-IP
PPL-42-C0650-IP
PPL-42-C0700-IP
PPL-42-C0750-IP
PPL-42-C0800-IP
PPL-42-C0850-IP
PPL-42-C0900-IP
PPL-42-C0950-IP
PPL-55-IP
PPL-55-C0500-IP
PPL-55-C0550-IP
PPL-55-C0600-IP
PPL-55-C0650-IP
PPL-55-C0700-IP
PPL-55-C0730-IP
PPL-76-IP
PPL-76-C0350-IP
PPL-76-C0400-IP
PPL-76-C0450-IP
PPL-76-C0500-IP
PPL-95-IP
PPL-95-C0300-IP
PPL-95-C0350-IP
PPL-95-C0400-IP
LPL-D-A&B
LPL17W-42-C0400-D-A External
LPL17W-42-C0400-D-A Built-in
LPL17W-42-C0400-D-B External
LPL17W-42-C0400-D-B Built-in
LPL25W-42-C0600-D-A External
LPL25W-42-C0600-D-A Built-in
LPL25W-42-C0600-D-B External
LPL25W-42-C0600-D-B Built-in
PPL36W-42-C0850-D-A Built-in
PPL36W-42-C0850-D-B Built-in
PPL44W-42-C1050-D-A Built-in
PPL44W-42-C1050-D-B Built-in
PXD Series
PXD19W-54-C0350
PXD38W-54-C0700
PXD57W-54-C1050
PXD75W-54-C1400
PXF Series
PXF20W-67-C0350
PXF40W-133-C0350
PXF60W-200-C0350
PXF75W-216-C0550
PXF Series Color temperature adjustment
PXF20W-67-C0350-K
PXF40W-133-C0350-K
PXF60W-200-C0350-K
PXF75W-216-C0550-K
PSPL Series
PSPL-40-C0350-IP-15
PSPL-40-C0350-IP-25
PSPL-40-C0400-IP-15
PSPL-40-C0400-IP-25
PSPL-40-C0450-IP-15
PSPL-40-C0450-IP-25
PSPL-40-C0500-IP-15
PSPL-40-C0500-IP-25
PSPL-40-C0550-IP-15
PSPL-40-C0550-IP-25
PSPL-40-C0600-IP-15
PSPL-40-C0600-IP-25
PSPL-40-C0650-IP-15
PSPL-40-C0650-IP-25
PSPL-40-C0700-IP-15
PSPL-40-C0700-IP-25
PSPL-40-C0750-IP-15
PSPL-40-C0750-IP-25
PSPL-40-C0800-IP-15
PSPL-40-C0800-IP-25
PSPL-40-C0850-IP-15
PSPL-40-C0850-IP-25
PSPL-40-C0900-IP-15
PSPL-40-C0900-IP-25
PSPL-40-C0950-IP-15
PSPL-40-C0950-IP-25
PSPL-40-C1000-IP-15
PSPL-40-C1000-IP-25
PSPL-40-C1050-IP-15
PSPL-40-C1050-IP-25
PSPL-120-C0350-IP-15
PSPL-120-C0350-IP-25
PSPL-55-C0350-IP-15
PSPL-55-C0350-IP-25
hint
Please fill in the fields correctly

Subscription succeeded

Contact Us

  • 资料名称
