EU LED Driver
-

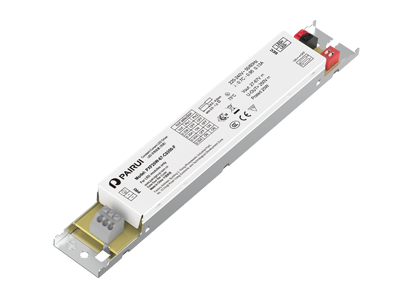

PXV Series-Constant voltage output
-High PF and low THD
-Class I, SELV
-

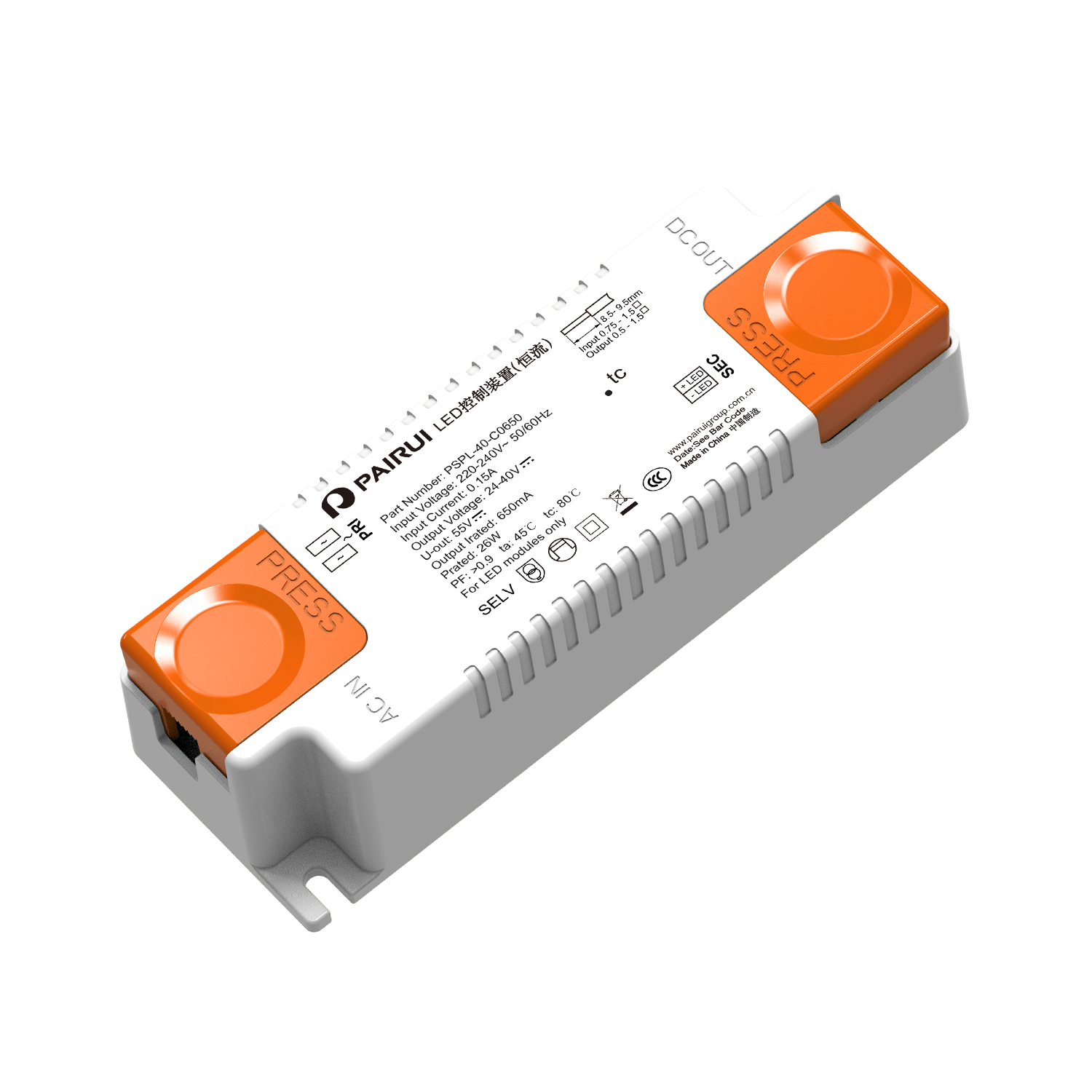

PPL IP40 Series-26-38W output
-High efficiency
-High PF and low THD
-No flicker
-

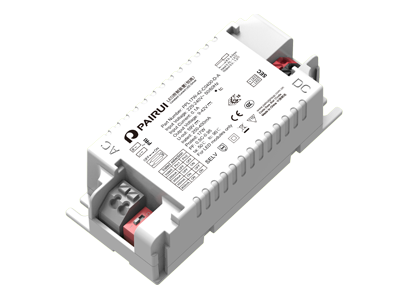

PPL-D Series-Fourth gear code current adjustment
-High efficiency
-High PF and low TID
-No flicker
-

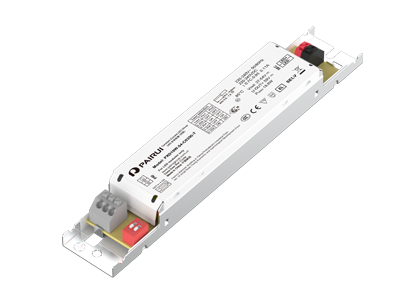

PXD Series-Constant current output
-Class I, SELV
-Fourth gear code current adjustment
-Meets Erp standards
-
PXF Serirs-Constant current output
-Class I, Non SELV
-Fourth gear code current adjustment
-
Mini Built-in TypeSmall Size
3-12W Output
Eupope ERP Standard
-
Slim 0-10V Dimming Type25-45W
Height: 22mm
0-10V Dimming
-
Constant Voltage Cost-effective Type12W-200W
2 Years Warranty
Without PFC
-
Constant Voltage Professional Type60W-320W
5 Years Warranty
With PFC
| Series | Rated power（W） | Input voltage（V） | Output current（mA） | Output voltage（V） | PF | Efficiency | Certificate | Spec. | Sample Application |
| PIBH003-P1 | 3 | 220-240 | 300,350 | - | 0.7 | 72% | CE CB TUV | - | |
| PIBH003C0300NSLPP1 | 3 | 220-240 | 300 | 5-13 | 0.7 | 72.0% | CE CB TUV | ||
| PIBH003C0350NSLPP1 | 3 | 220-240 | 350 | 3-10 | 0.7 | 72.0% | CE CB TUV | ||
| PIBH006-P1 | 6 | 220-240 | 300,350 | - | 0.7 | 75% | CE CB TUV | - | |
| PIBH006C0300NSLPP1 | 6 | 220-240 | 300 | 12-22 | 0.7 | 75.0% | CE CB TUV | ||
| PIBH006C0350NSLPP1 | 6 | 220-240 | 350 | 9-18 | 0.7 | 75.0% | CE CB TUV | ||
| PIBH009-P2 | 9 | 220-240 | 300,350 | - | 0.7 | 80% | CE CB TUV | - | |
| PIBH009C0300NSLPP2 | 9 | 220-240 | 300 | 20-32 | 0.7 | 80.0% | CE CB TUV | ||
| PIBH009C0350NSLPP2 | 9 | 220-240 | 350 | 15-27 | 0.7 | 80.0% | CE CB TUV | ||
| PIBH012-P2 | 12 | 220-240 | 300 | - | 0.7 | 82% | CE CB TUV | - | |
| PIBH012C0300NSLPP2 | 12 | 220-240 | 300 | 30-40 | 0.7 | 82.0% | CE CB TUV | ||
| PEAH025-G1 | 25 | 220-240 | 600 | 27-42 | 0.9 | 86% | CE CB TUV SAA | - | |
| PEAH025C0600VSRPG1 | 25 | 220-240 | 600 | 27-42 | 0.9 | 86% | CE CB TUV SAA | ||
| PEAH030-G1 | 30 | 220-240 | 700 | 27-42 | 0.9 | 86% | CE CB TUV SAA | - | |
| PEAH030C0700VSRPG1 | 30 | 220-240 | 700 | 27-42 | 0.9 | 86% | CE CB TUV SAA | ||
| PEAH035-G1 | 35 | 220-240 | 800 | 27-42 | 0.9 | 86% | CE CB TUV SAA | - | |
| PEAH035C0800VSRPG1 | 35 | 220-240 | 800 | 27-42 | 0.9 | 86% | CE CB TUV SAA | ||
| PEAH040-G1 | 40 | 220-240 | 900-950 | 27-42 | 0.9 | 86% | CE CB TUV SAA | - | |
| PEAH040C0900VSRPG1 | 40 | 220-240 | 900 | 27-42 | 0.9 | 86% | CE CB TUV SAA | ||
| PEAH040C0950VSRPG1 | 40 | 220-240 | 950 | 27-42 | 0.9 | 86% | CE CB TUV SAA | ||
| PEAH045-G1 | 45 | 220-240 | 1000-1050 | 27-42 | 0.9 | 86% | CE CB TUV SAA | - | |
| PEAH045C1000VSRPG1 | 45 | 220-240 | 1000 | 27-42 | 0.9 | 86% | CE CB TUV SAA | ||
| PEAH045C1050VSRPG1 | 45 | 220-240 | 1050 | 27-42 | 0.9 | 86% | CE CB TUV SAA | ||
| PGDW12 | 12 | 90-264 | - | 12,24,36 | - | - | CE | - | |
| PGDW12V12 | 12 | 90-264 | 0-1A | 12 | - | 79.0% | CE | ||
| PGDW12V24 | 12 | 90-264 | 0-0.5A | 24 | - | 81.0% | CE | ||
| PGDW12V36 | 12 | 90-264 | 0-0.33A | 36 | - | 82.0% | CE | ||
| PGDW25 | 25 | 90-264 | - | 12,24,36 | - | - | CE | - | |
| PGDW25V12 | 25 | 90-264 | 0-2.1A | 12 | - | 79.0% | CE | ||
| PGDW25V24 | 25 | 90-264 | 0-1.1A | 24 | - | 81.0% | CE | ||
| PGDW25V36 | 25 | 90-264 | 0-0.7A | 36 | - | 82.0% | CE | ||
| PGDW36 | 36 | 90-264 | - | 12,24,36 | - | - | CE | - | |
| PGDW36V12 | 36 | 90-264 | 0-3A | 12 | - | 80.0% | CE | ||
| PGDW36V24 | 36 | 90-264 | 0-1.5A | 24 | - | 82.0% | CE | ||
| PGDW36V36 | 36 | 90-264 | 0-1A | 36 | - | 83.0% | CE | ||
| PGDW60 | 60 | 90-264 | - | 12,24 | - | - | CE | - | |
| PGDW60V12 | 60 | 90-264 | 0-5A | 12 | - | 85.5% | CE | ||
| PGDW60V24 | 60 | 90-264 | 0-2.5A | 24 | - | 87.5% | CE | ||
| PGDW75 | 75 | 90-264 | - | 12,24 | - | - | CE | - | |
| PGDW75V12 | 75 | 90-264 | 0-6.3A | 12 | - | 85.5% | CE | ||
| PGDW75V24 | 75 | 90-264 | 0-3.2A | 24 | - | 87.5% | CE | ||
| PGDH100 | 100 | 180-264 | - | 12,24,36 | - | - | CE | - | |
| PGDH100V12 | 100 | 180-264 | 0-8.4A | 12 | - | 87.0% | CE | ||
| PGDH100V24 | 100 | 180-264 | 0-4.2A | 24 | - | 88.0% | CE | ||
| PGDH100V36 | 100 | 180-264 | 0-2.8A | 36 | - | 88.0% | CE | ||
| PGDH150 | 150 | 180-264 | - | 12,24,36 | - | - | CE | - | |
| PGDH150V12 | 150 | 180-264 | 0-12.5A | 12 | - | 92.0% | CE | ||
| PGDH150V24 | 150 | 180-264 | 0-6.3A | 24 | - | 93.0% | CE | ||
| PGDH150V36 | 150 | 180-264 | 0-4.2A | 36 | - | 93.5% | CE | ||
| PGDH200 | 200 | 180-264 | - | 12,24,36 | - | - | CE | - | |
| PGDH200V12 | 200 | 180-264 | 0-16.7A | 12 | - | 92.0% | CE | ||
| PGDH200V24 | 200 | 180-264 | 0-8.4A | 24 | - | 93.0% | CE | ||
| PGDH200V36 | 200 | 180-264 | 0-5.6A | 36 | - | 93.5% | CE | ||
| PGMW60 | 60 | 90-264 | - | 12,24 | - | - | CE | - | |
| PGMW60V12 | 60 | 90-264 | 0-5A | 12 | 0.92 | 86.0% | CE | ||
| PGMW60V24 | 60 | 90-264 | 0-2.5A | 24 | 0.92 | 87.5% | CE | ||
| PGMW100 | 100 | 90-264 | - | 12,24 | - | - | CE | - | |
| PGMW100V12 | 100 | 90-264 | 0-8.5A | 12 | 0.92 | 85.0% | CE | ||
| PGMW100V24 | 100 | 90-264 | 0-4.2A | 24 | 0.92 | 87.0% | |||
| PGMW150 | 150 | 90-264 | - | 12,24 | - | - | CE | - | |
| PGMW150V12 | 150 | 90-264 | 0-12.5A | 12 | 0.92 | 88.5% | CE | ||
| PGMW150V24 | 150 | 90-264 | 0-6.3A | 24 | 0.92 | 91.0% | CE | ||
| PGMW200 | 200 | 90-264 | - | 12,24,36 | - | - | CE | - | |
| PGMW200V12 | 200 | 90-264 | 0-16.5A | 12 | 0.95 | 90.0% | CE | ||
| PGMW200V24 | 200 | 90-264 | 0-8.5A | 24 | 0.95 | 92.0% | CE | ||
| PGMW200V36 | 200 | 90-264 | 0-5.6A | 36 | 0.95 | 93.0% | CE | ||
| PGMW240 | 240 | 90-264 | - | 12,24 | - | - | CE | - | |
| PGMW240V12 | 240 | 90-264 | 0-20A | 12 | 0.95 | 89.0% | CE | ||
| PGMW240V24 | 240 | 90-264 | 0-10A | 24 | 0.95 | 92.0% | CE | ||
| PGMW320 | 320 | 90-264 | - | 12,24 | - | - | CE | - | |
| PGMW320V12 | 320 | 90-264 | 0-26.5A | 12 | 0.95 | 89.0% | CE | ||
| PGMW320V24 | 320 | 90-264 | 0-13.3A | 24 | 0.95 | 92.0% | CE | ||
| PXV Series | 30W-180W | 220-240V | 1250mA-7500mA | 24Vdc | ＞0.9 | - | - | - | - |
| PXV30W-24A | 30W | 220-240Vac | 1250mA | 24V | ＞0.9 | 86% | CE CCC | ||
| PXV60W-24A | 60W | 220-240Vac | 2500mA | 24V | ＞0.9 | 86% | CE CCC | ||
| PXV120W-24A | 120W | 220-240Vac | 5000mA | 24V | ＞0.9 | 89% | CE CCC | ||
| PXV180W-24A | 180W | 220-240Vac | 7500mA | 24V | ＞0.9 | 91% | CE CCC | ||
| PPL-40-IP | 26w-40w | 220-240VAC | 650mA-1000mA | 24-40Vdc | ＞0.9 | - | CE CB CCC | - | |
| PPL-40-C0650-IP | 26W | 220-240VAC | 650mA | 24-40Vdc | ＞0.9 | 90.0% | CE CB CCC | ||
| PPL-40-C0700-IP | 28W | 220-240VAC | 700mA | 24-40Vdc | ＞0.9 | 90.0% | CE CB CCC | ||
| PPL-40-C0750-IP | 30W | 220-240VAC | 750mA | 24-40Vdc | ＞0.9 | 89.0% | CE CB CCC | ||
| PPL-40-C0800-IP | 32W | 220-240VAC | 800mA | 24-40Vdc | ＞0.9 | 89.0% | CE CB CCC | ||
| PPL-40-C0850-IP | 34W | 220-240VAC | 850mA | 24-40Vdc | ＞0.9 | 88.0% | CE CB CCC | ||
| PPL-40-C0900-IP | 36W | 220-240VAC | 900mA | 24-40Vdc | ＞0.9 | 88.0% | CE CB CCC | ||
| PPL-40-C0950-IP | 38W | 220-240VAC | 950mA | 24-40Vdc | ＞0.9 | 87.0% | CE CB CCC | ||
| PPL-40-C1000-IP | 40W | 220-240VAC | 1000mA | 24-40Vdc | ＞0.9 | 87.0% | CE CB CCC | ||
| PPL-42-IP | 27w-40w | 220-240VAC | 65mA-950mA | 24-42Vdc | ＞0.9 | - | CE CB CCC | - | |
| PPL-42-C0650-IP | 27W | 220-240VAC | 650mA | 24-42Vdc | ＞0.9 | 86.0% | CE CB CCC | ||
| PPL-42-C0700-IP | 29W | 220-240VAC | 700mA | 24-42Vdc | ＞0.9 | 86.0% | CE CB CCC | ||
| PPL-42-C0750-IP | 32W | 220-240VAC | 750mA | 24-42Vdc | ＞0.9 | 88.0% | CE CB CCC | ||
| PPL-42-C0800-IP | 34W | 220-240VAC | 800mA | 24-42Vdc | ＞0.9 | 88.0% | CE CB CCC | ||
| PPL-42-C0850-IP | 36W | 220-240VAC | 850mA | 24-42Vdc | ＞0.9 | 89.0% | CE CB CCC | ||
| PPL-42-C0900-IP | 38W | 220-240VAC | 900mA | 24-42Vdc | ＞0.9 | 89.0% | CE CB CCC | ||
| PPL-42-C0950-IP | 40W | 220-240VAC | 950mA | 24-42Vdc | ＞0.9 | 90.0% | CE CB CCC | ||
| PPL-55-IP | 28w-40w | 220-240VAC | 500mA-730mA | 33-55Vdc | ＞0.9 | - | CE CB CCC | - | |
| PPL-55-C0500-IP | 28W | 220-240VAC | 500mA | 33-55Vdc | ＞0.9 | 86.3% | CE CB CCC | ||
| PPL-55-C0550-IP | 30W | 220-240VAC | 550mA | 33-55Vdc | ＞0.9 | 87.0% | CE CB CCC | ||
| PPL-55-C0600-IP | 33W | 220-240VAC | 600mA | 33-55Vdc | ＞0.9 | 87.5% | CE CB CCC | ||
| PPL-55-C0650-IP | 36W | 220-240VAC | 650mA | 33-55Vdc | ＞0.9 | 88.0% | CE CB CCC | ||
| PPL-55-C0700-IP | 39W | 220-240VAC | 700mA | 33-55Vdc | ＞0.9 | 89.5% | CE CB CCC | ||
| PPL-55-C0730-IP | 40W | 220-240VAC | 730mA | 33-55Vdc | ＞0.9 | 89.5% | CE CB CCC | ||
| PPL-76-IP | 27w-38w | 220-240VAC | 350mA-500mA | 46-76Vdc | ＞0.9 | - | CE CB CCC | - | |
| PPL-76-C0350-IP | 27W | 220-240VAC | 350mA | 46-76Vdc | ＞0.9 | 86.0% | CE CB CCC | ||
| PPL-76-C0400-IP | 30W | 220-240VAC | 400mA | 46-76Vdc | ＞0.9 | 87.0% | CE CB CCC | ||
| PPL-76-C0450-IP | 34W | 220-240VAC | 450mA | 46-76Vdc | ＞0.9 | 87.0% | CE CB CCC | ||
| PPL-76-C0500-IP | 38W | 220-240VAC | 500mA | 46-76Vdc | ＞0.9 | 87.0% | CE CB CCC | ||
| PPL-95-IP | 29w-38w | 220-240VAC | 300mA-400mA | 57-95Vdc | ＞0.9 | - | CE CB CCC | - | |
| PPL-95-C0300-IP | 29W | 220-240VAC | 300mA | 57-95Vdc | ＞0.9 | 86.0% | CE CB CCC | ||
| PPL-95-C0350-IP | 33W | 220-240VAC | 350mA | 57-95Vdc | ＞0.9 | 87.0% | CE CB CCC | ||
| PPL-95-C0400-IP | 38W | 220-240VAC | 400mA | 57-95Vdc | ＞0.9 | 87.0% | CE CB CCC | ||
| LPL-D-A&B | 17-42W | 220-240Vac | 250mA-1050mA | 9-42V | ＞0.9 | - | CE CB | - | - |
| LPL17W-42-C0400-D-A External | 17W | 220-240Vac | 250mA-400mA | 9-42V | ＞0.9 | 0.855 | CE CB | ||
| LPL17W-42-C0400-D-A Built-in | 17W | 220-240Vac | 250mA-400mA | 9-42V | ＞0.9 | 0.855 | CE CB | ||
| LPL17W-42-C0400-D-B External | 17W | 220-240Vac | 250mA-400mA | 9-42V | ＞0.9 | 0.855 | CE CB | ||
| LPL17W-42-C0400-D-B Built-in | 17W | 220-240Vac | 250mA-400mA | 9-42V | ＞0.9 | 0.855 | CE CB | ||
| LPL25W-42-C0600-D-A External | 25W | 220-240Vac | 450mA-600mA | 9-42V | ＞0.9 | 0.88 | CE CB | ||
| LPL25W-42-C0600-D-A Built-in | 25W | 220-240Vac | 450mA-600mA | 9-42V | ＞0.9 | 0.88 | CE CB | ||
| LPL25W-42-C0600-D-B External | 25W | 220-240Vac | 450mA-600mA | 9-42V | ＞0.9 | 0.88 | CE CB | ||
| LPL25W-42-C0600-D-B Built-in | 25W | 220-240Vac | 450mA-600mA | 9-42V | ＞0.9 | 0.88 | CE CB | ||

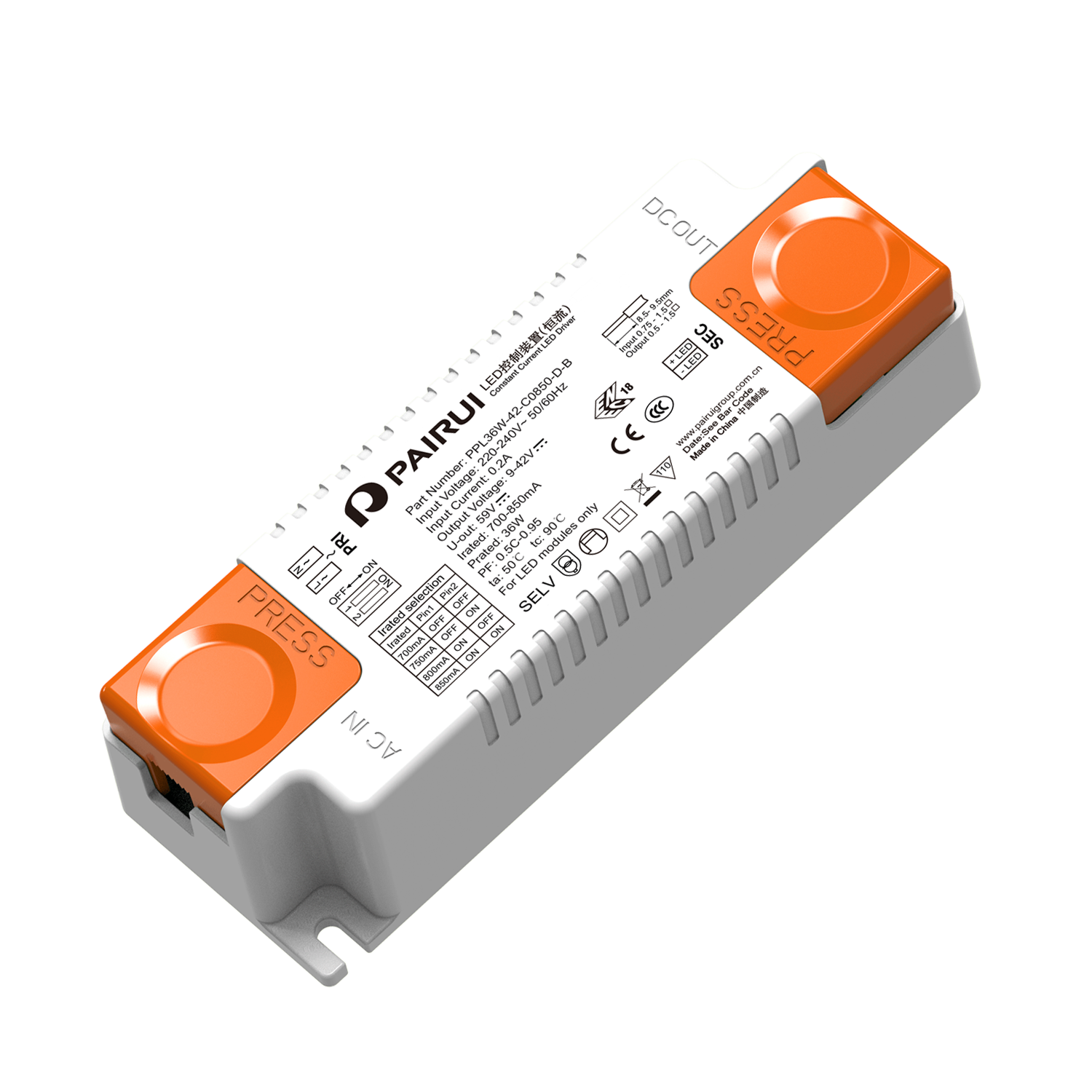

| PPL36W-42-C0850-D-A Built-in | 42W | 220-240Vac | 600mA-850mA | 9-42V | ＞0.9 | 0.905 | CE CB | ||
| PPL36W-42-C0850-D-B Built-in | 42W | 220-240Vac | 600mA-850mA | 9-42V | ＞0.9 | 0.905 | CE CB | ||
| PPL44W-42-C1050-D-A Built-in | 42W | 220-240Vac | 900mA-1050mA | 9-42V | ＞0.9 | 0.91 | CE CB | ||
| PPL44W-42-C1050-D-B Built-in | 42W | 220-240Vac | 900mA-1050mA | 9-42V | ＞0.9 | 0.91 | CE CB | ||
| PXD Series | 19W-75W | 220-240Vac | 250mA-1400mA | 27-54V | - | - | CE CB CCC | - | - |
| PXD19W-54-C0350 | 19W | 220-240Vac | 250/300/350/400mA | 27-54V | ＞0.9 | 85% | CE CB CCC | ||
| PXD38W-54-C0700 | 38W | 220-240Vac | 400/500/600/700mA | 27-54V | ＞0.9 | 86% | CE CB CCC | ||
| PXD57W-54-C1050 | 57W | 220-240Vac | 700/850/900/1050mA | 27-54V | ＞0.9 | 88% | CE CB CCC | ||
| PXD75W-54-C1400 | 75W | 220-240Vac | 1100/1200/1300/1400mA | 27-54V | ＞0.9 | 89% | CE CB CCC | ||
| PXF Series | 20W-75W | 220-240VAC | 200mA-550mA | 27-216 | - | - | CE CB CCC | - | - |
| PXF20W-67-C0350 | 20W | 220-240Vac | 200mA-350mA | 27-67Vdc | ＞0.9 | 87% | CE CB FCC | ||
| PXF40W-133-C0350 | 40W | 220-240Vac | 200mA-350mA | 50-133Vdc | ＞0.9 | 90% | CE CB CCC | ||
| PXF60W-200-C0350 | 65W | 220-240Vac | 200mA-350mA | 84-200Vdc | ＞0.9 | 91% | CE CB CCC | ||
| PXF75W-216-C0550 | 75W | 220-240Vac | 350mA-550mA | 90-216Vdc | ＞0.9 | 94% | CE CB CCC | ||
| PXF Series Color temperature adjustment | 20W-75W | 220-240VAC | 200mA-550mA | 27-216 | - | - | CE CB CCC | - | - |
| PXF20W-67-C0350-K | 20W | 220-240Vac | 200mA-350mA | 27-67Vdc | - | 87% | CE CB CCC | ||
| PXF40W-133-C0350-K | 40W | 220-240Vac | 200mA-350mA | 50-133Vdc | - | 90% | CE CB CCC | ||
| PXF60W-200-C0350-K | 65W | 220-240Vac | 200mA-350mA | 84-200Vdc | - | 91% | CE CB CCC | ||
| PXF75W-216-C0550-K | 75W | 220-240Vac | 350mA-550mA | 90-216Vdc | - | 94% | CE CB CCC |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
