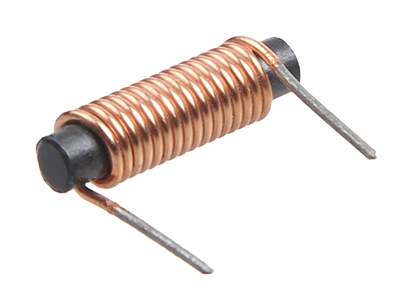

Magnetic Bar Inductor

FARC
Click to expand the criteria search box
  • Product number

  • {/php}
  • Inductance

  • DCR

  • Load current

Magnetic Bar Inductor Filter Models: 3 in total, please see the table below.

Series Inductance DCR Load current Spec. Sample Application
FARCH
1-390uH 0.002-0.025Ω 1-25A
-
FARCH-110A-1R0L-25
1uH 0.002Ω 25A
FARCH-110A-1R0L-10
1uH 0.002Ω 10A
FARCH-110A-3R3L-10
3.3uH 0.005Ω 10A
FARCH-110A-4R7L-03
4.7uH 0.021Ω 3A
FARCH-110A-4R7L-05
4.7uH 0.012Ω 5A
FARCH-110A-4R7L-10
4.7uH 0.012Ω 10A
FARCH-110A-4R7L-20
4.7uH 0.004Ω 20A
FARCH-110A-100K-03
10uH 0.023Ω 3A
FARCH-110A-100K-05
10uH 0.017Ω 5A
FARCH-110A-100K-10
10uH 0.015Ω 10A
FARCH-110A-100K-20
10uH 0.006Ω 20A
FARCH-110A-150K-03
15uH 0.025Ω 3A
FARCH-110A-150K-10
15uH 0.02Ω 10A
FARCH-110A-220K-03
22uH 0.035Ω 3A
FARCH-110A-220K-05
22uH 0.023Ω 5A
FARCH-110A-220K-10
22uH 0.015Ω 10A
FARCH-110A-270K-05
27uH 0.024Ω 5A
FARCH-110A-330K-12
33uH 0.017Ω 12A
FARCH-110A-470K-03
47uH 0.05Ω 3A
FARCH-110A-470K-05
47uH 0.035Ω 5A
FARCH-110A-470K-10
47uH 0.022Ω 10A
FARCH-110A-820K-03
82uH 0.11Ω 3A
FARCH-110A-101K-01
100uH 0.19Ω 1A
FARCH-110A-101K-03
100uH 0.072Ω 3A
FARCH-110A-101K-05
100uH 0.055Ω 5A
FARCH-110A-151K-03
150uH 0.14Ω 3A
FARCH-110A-151K-05
150uH 0.065Ω 5A
FARCH-110A-181K-05
180uH 0.11Ω 5A
FARCH-110A-221K-03
220uH 0.21Ω 3A
FARCH-110A-271K-04
270uH 0.25Ω 4A
FARCH-110A-271K-10
270uH 0.16Ω 10A
FARCH-110A-391K-03
390uH 0.25Ω 3A
FARCH-110A-391K-05
390uH 0.19Ω 5A
FARC
1-56uH 0.005-0.1Ω 0.56-16.08A
-
FARC0205-1R0K
1uH 0.04Ω 0.56A
FARC0205-1R2K
1.2uH 0.04Ω 0.56A
FARC0310-1R8K
1.8uH 0.026Ω 1.9A
FARC0310-2R2K
2.2uH 0.028Ω 1.57A
FARC0310-2R7K
2.7uH 0.03Ω 1.57A
FARC0310-3R3K
3.3uH 0.035Ω 1.27A
FARC0310-3R9K
3.9uH 0.05Ω 1A
FARC0310-4R7K
4.7uH 0.07Ω 0.76A
FARC0415-4R7K
4.7uH 0.024Ω 2.26A
FARC0415-5R6K
5.6uH 0.03Ω 1.9A
FARC0415-6R8K
6.8uH 0.04Ω 1.57A
FARC0415-8R2K
8.2uH 0.06Ω 1.27A
FARC0415-100K
10uH 0.08Ω 1A
FARC0520-100K
10uH 0.04Ω 2.65A
FARC0520-120K
12uH 0.044Ω 2.26A
FARC0520-150K
15uH 0.06Ω 1.9A
FARC0520-180K
18uH 0.08Ω 1.57A
FARC0520-220K
22uH 0.1Ω 1.27A
FARC0520-270K
27uH 0.15Ω 1A
FARC0630-4R7K
4.7uH 0.005Ω 16.08A
FARC0630-5R6K
5.6uH 0.005Ω 16.08A
FARC0630-6R8K
6.8uH 0.008Ω 10.61A
FARC0B30-8R2K
8.2uH 0.009Ω 9.04A
FARC0630-100K
10uH 0.01Ω 9.04A
FARC0630-120K
12uH 0.018Ω 6.28A
FARC0B30-150K
15uH 0.023Ω 5.08A
FARC0630-180K
18uH 0.03Ω 4.02A
FARC0630-220K
22uH 0.045Ω 3.07A
FARC0630-270K
27uH 0.05Ω 3.07A
FARC0630-330K
33uH 0.06Ω 2.65A
FARC0B30-390K
39uH 0.08Ω 2.26A
FARC0630-470K
47uH 0.11Ω 1.9A
FARC0630-560K
56uH 0.14Ω 1.57A
FACHA
3.35-1000uH 0.012-0.55 1-20A
-
FACHA-01-3R3M
3.35uH 0.01Ω 20A
FACHA-01-4R9M
4.9uH 0.016Ω 15A
FACHA-01-8R8M
8.8uH 0.021Ω 10A
FACHA-02-4R0M
4uH 0.012Ω 8A
FACHA-03-400M
40uH 0.082Ω 3A
FACHA-04-680M
68uH 0.054Ω 5A
FACHA-05-101M
100uH 0.216Ω 2A
FACHA-0q-125M
125uH 0.08Ω 3.5A
FACHA-0q-251M
250uH 0.17Ω 2.5A
FACHA-04-501M
500uH 0.26Ω 2A
FACHA-04-102M
1000uH 0.55Ω 1A

* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
