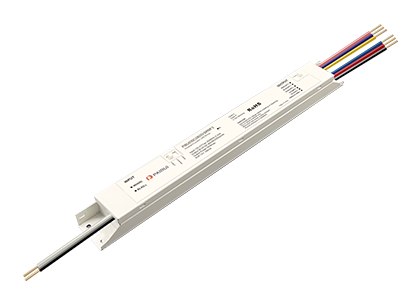

Metal housing Built-in slim type

PIFH（15-45W）
PIGH（1-10V调光）
Click to expand the criteria search box

  • Product number

    • {/php}

  • Rated power（W）

  • Output current（mA）

  • Output voltage（V）

  • Ripple

  • Dimmer way

Metal housing Built-in slim type Filter Models: 14 in total, please see the table below.

Series Rated power（W） Input voltage（V） Output current（mA） Output voltage（V） PF Efficiency Certificate Spec. Sample Application
PIFH015CxxxxNSLMF1
15 220-240 300-700 - 0.9 - -
-
PIFH015C0300NSLMF1
15 220-240 300 35-52 0.9 84.0% SAA TUV CE
PIFH015C0350NSLMF1
15 220-240 350 30-44 0.9 84.0% SAA TUV CE
PIFH015C0400NSLMF1
15 220-240 400 26-40 0.9 84.0% SAA TUV CE
PIFH015C0450NSLMF1
15 220-240 450 24-36 0.9 84.0% SAA TUV CE
PIFH015C0500NSLMF1
15 220-240 500 21-32 0.9 84.0% SAA TUV CE
PIFH015C0550NSLMF1
15 220-240 550 19-29 0.9 84.0% SAA TUV CE
PIFH015C0600NSLMF1
15 220-240 600 17-26 0.9 84.0% SAA TUV CE
PIFH015C0650NSLMF1
15 220-240 650 15-22 0.9 84.0% SAA TUV CE
PIFH015C0700NSLMF1
15 220-240 700 15-22 0.9 84.0% SAA TUV CE
PIFH020CxxxxNSLMF1
20 220-240 300-700 - 0.9 - -
-
PIFH020C0300NSLMF1
20 220-240 300 48-70 0.9 84.0% SAA TUV CE
PIFH020C0350NSLMF1
20 220-240 350 40-62 0.9 84.0% SAA TUV CE
PIFH020C0400NSLMF1
20 220-240 400 36-55 0.9 84.0% SAA TUV CE
PIFH020C0450NSLMF1
20 220-240 450 32-48 0.9 84.0% SAA TUV CE
PIFH020C0500NSLMF1
20 220-240 500 29-43 0.9 84.0% SAA TUV CE
PIFH020C0550NSLMF1
20 220-240 550 26-39 0.9 84.0% SAA TUV CE
PIFH020C0600NSLMF1
20 220-240 600 24-36 0.9 84.0% SAA TUV CE
PIFH020C0650NSLMF1
20 220-240 650 20-31 0.9 84.0% SAA TUV CE
PIFH020C0700NSLMF1
20 220-240 700 20-31 0.9 84.0% SAA TUV CE
PIFH025CxxxxNSLMF2
25 220-240 300-600 - 0.95 - TUV CB CE
-
PIFH025C0400NSLMF2
25 220-240 400 40-65 0.9 86.0% TUV CB CE
PIFH025C0450NSLMF2
25 220-240 450 40-65 0.9 86.0% TUV CB CE
PIFH025C0500NSLMF2
25 220-240 500 30-50 0.9 86.0% TUV CB CE
PIFH025C0550NSLMF2
25 220-240 550 30-50 0.9 86.0% TUV CB CE
PIFH025C0600NSLMF2
25 220-240 600 27-42 0.9 86.0% TUV CB CE
PIFH030CxxxxNSLMF2
30 220-240 300-700 - 0.95 - TUV CB CE
-
PIFH030C0300NSLMF2
30 220-240 300 70-95 0.95 86.0% TUV CB CE
PIFH030C0350NSLMF2
30 220-240 350 50-76 0.95 86.0% TUV CB CE
PIFH030C0400NSLMF2
30 220-240 400 50-76 0.95 86.0% TUV CB CE
PIFH030C0500NSLMF2
30 220-240 500 40-55 0.95 86.0% TUV CB CE
PIFH030C0550NSLMF2
30 220-240 550 40-55 0.95 86.0% TUV CB CE
PIFH030C0650NSLMF2
30 220-240 650 27-42 0.95 86.0% TUV CB CE
PIFH030C0700NSLMF2
30 220-240 700 27-42 0.95 86.0% TUV CB CE
PIFH035CxxxxNSLMF2
35 220-240 350-800 - 0.95 - TUV CB CE
-
PIFH035C0350NSLMF2
35 220-240 350 70-95 0.95 86.0% TUV CB CE
PIFH035C0450NSLMF2
35 220-240 450 50-76 0.95 86.0% TUV CB CE
PIFH035C0600NSLMF2
35 220-240 600 40-55 0.95 86.0% TUV CB CE
PIFH035C0750NSLMF2
35 220-240 750 27-42 0.95 86.0% TUV CB CE
PIFH035C0800NSLMF2
35 220-240 800 27-42 0.95 86.0% TUV CB CE
PIFH040CxxxxNSLMF2
40 220-240 400-900 - 0.95 - TUV CB CE
-
PIFH040C0400NSLMF2
40 220-240 400 70-95 0.95 86.0% TUV CB CE
PIFH040C0500NSLMF2
40 220-240 500 50-76 0.95 86.0% TUV CB CE
PIFH040C0650NSLMF2
40 220-240 650 40-55 0.95 86.0% TUV CB CE
PIFH040C0700NSLMF2
40 220-240 700 40-55 0.95 86.0% TUV CB CE
PIFH040C0850NSLMF2
40 220-240 850 27-42 0.95 86.0% TUV CB CE
PIFH040C0900NSLMF2
40 220-240 900 27-42 0.95 86.0% TUV CB CE
PIFH045CxxxxNSLMF2
45 220-240 550-1050 - 0.95 - TUV CB CE
-
PIFH045C0550NSLMF2
45 220-240 550 50-76 0.95 86.0% TUV CB CE
PIFH045C0750NSLMF2
45 220-240 750 40-55 0.95 86.0% TUV CB CE
PIFH045C0950NSLMF2
45 220-240 950 30-45 0.95 86.0% TUV CB CE
PIFH045C01000NSLMF2
45 220-240 1000 27-42 0.95 86.0% TUV CB CE
PIFH045C01050NSLMF2
45 220-240 1050 27-42 0.95 86.0% TUV CB CE
PIGH015CxxxxVSLMF1
15 220-240 300-700 - 0.9 - -
-
PIGH015C0300VSLMF1
15 220-240 300 35-52 0.9 84.0% SAA TUV CE
PIGH015C0350VSLMF1
15 220-240 350 30-44 0.9 84.0% SAA TUV CE
PIGH015C0400VSLMF1
15 220-240 400 26-40 0.9 84.0% SAA TUV CE
PIGH015C0450VSLMF1
15 220-240 450 24-36 0.9 84.0% SAA TUV CE
PIGH015C0500VSLMF1
15 220-240 500 21-32 0.9 84.0% SAA TUV CE
PIGH015C0550VSLMF1
15 220-240 550 19-29 0.9 84.0% SAA TUV CE
PIGH015C0600VSLMF1
15 220-240 600 17-26 0.9 84.0% SAA TUV CE
PIGH015C0650VSLMF1
15 220-240 650 15-22 0.9 84.0% SAA TUV CE
PIGH015C0700VSLMF1
15 220-240 700 15-22 0.9 84.0% SAA TUV CE
PIGH020CxxxxVSLMF1
20 220-240 300-700 - 0.9 - -
-
PIGH020C0300VSLMF1
20 220-240 300 48-70 0.9 84.0% SAA TUV CE
PIGH020C0350VSLMF1
20 220-240 350 40-62 0.9 84.0% SAA TUV CE
PIGH020C0400VSLMF1
20 220-240 400 36-55 0.9 84.0% SAA TUV CE
PIGH020C0450VSLMF1
20 220-240 450 32-48 0.9 84.0% SAA TUV CE
PIGH020C0500VSLMF1
20 220-240 500 29-43 0.9 84.0% SAA TUV CE
PIGH020C0550VSLMF1
20 220-240 550 26-39 0.9 84.0% SAA TUV CE
PIGH020C0600VSLMF1
20 220-240 600 24-36 0.9 84.0% SAA TUV CE
PIGH020C0650VSLMF1
20 220-240 650 20-31 0.9 84.0% SAA TUV CE
PIGH020C0700VSLMF1
20 220-240 700 20-31 0.9 84.0% SAA TUV CE
PIGH025CxxxxVSLMF1
25 220-240 300-600 - 0.95 - -
-
PIGH025C0300VSLMF1
25 220-240 300 50-76 0.95 86.0% -
PIGH025C0400VSLMF1
25 220-240 400 40-55 0.95 86.0% -
PIGH025C0450VSLMF1
25 220-240 450 40-55 0.95 86.0% -
PIGH025C0500VSLMF1
25 220-240 500 27-42 0.95 86.0% -
PIGH025C0550VSLMF1
25 220-240 550 27-42 0.95 86.0% -
PIGH025C0600VSLMF1
25 220-240 600 27-42 0.95 86.0% -
PIGH030CxxxxVSLMF2
30 220-240 300-700 - 0.95 - -
-
PIGH030C0300VSLMF2
30 220-240 300 70-95 0.95 86.0% SAA TUV CE
PIGH030C0350VSLMF2
30 220-240 350 50-76 0.95 86.0% SAA TUV CE
PIGH030C0400VSLMF2
30 220-240 400 50-76 0.95 86.0% SAA TUV CE
PIGH030C0500VSLMF2
30 220-240 500 40-55 0.95 86.0% SAA TUV CE
PIGH030C0550VSLMF2
30 220-240 550 40-55 0.95 86.0% SAA TUV CE
PIGH030C0650VSLMF2
30 220-240 650 27-42 0.95 86.0% SAA TUV CE
PIGH030C0700VSLMF2
30 220-240 700 27-42 0.95 86.0% SAA TUV CE
PIGH035CxxxxVSLMF2
35 220-240 350-800 - 0.95 - -
-
PIGH035C0350VSLMF2
35 220-240 350 70-95 0.95 86.0% SAA TUV CE
PIGH035C0450VSLMF2
35 220-240 450 50-76 0.95 86.0% SAA TUV CE
PIGH035C0600VSLMF2
35 220-240 600 40-55 0.95 86.0% SAA TUV CE
PIGH035C0750VSLMF2
35 220-240 750 27-42 0.95 86.0% SAA TUV CE
PIGH035C0800VSLMF2
35 220-240 800 27-42 0.95 86.0% SAA TUV CE
PIGH040CxxxxVSLMF2
40 220-240 400-900 - 0.95 - -
-
PIGH040C0400VSLMF2
40 220-240 400 70-95 0.95 86.0% SAA TUV CE
PIGH040C0500VSLMF2
40 220-240 500 50-76 0.95 86.0% SAA TUV CE
PIGH040C0650VSLMF2
40 220-240 650 40-55 0.95 86.0% SAA TUV CE
PIGH040C0700VSLMF2
40 220-240 700 40-55 0.95 86.0% SAA TUV CE
PIGH040C0850VSLMF2
40 220-240 850 27-42 0.95 86.0% SAA TUV CE
PIGH040C0900VSLMF2
40 220-240 900 27-42 0.95 86.0% SAA TUV CE
PIGH045CxxxxVSLMF2
45 220-240 550-1050 - 0.95 - -
-
PIGH045C0550VSLMF2
45 220-240 550 50-76 0.95 86.0% SAA TUV CE
PIGH045C0750VSLMF2
45 220-240 750 40-55 0.95 86.0% -
PIGH045C0950VSLMF2
45 220-240 950 30-45 0.95 86.0% SAA TUV CE
PIGH045C01000VSLMF2
45 220-240 1000 27-42 0.95 86.0% SAA TUV CE
PIGH045C01050VSLMF2
45 220-240 1050 27-42 0.95 86.0% SAA TUV CE

* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
