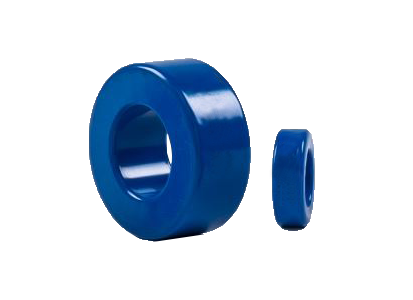

![-_Silicon Iron Core_KSF130-026A -_Silicon Iron Core_KSF130-026A](/public/uploads/product/202202/1644800222.png)
KSF130-026A
*The picture is for reference only, please refer to the actual product/technical specification for specific parameters
-
- 型号:KSF130-026A
- Coating ID (mm): 33.830
- Coating OD (mm): 19.300
- Coating HT (mm): 11.610
- Without coating HT (mm): 33.00
- Without coating ID (mm): 19.90
- Without coating OD (mm): 10.70
- Ae(cm2): 0.672
- le(cm): 8.15
- V(cm3): 5.48
- W(cm2): 2.93
- Perm.(μ): 26
- Al(nH/N2): 28
